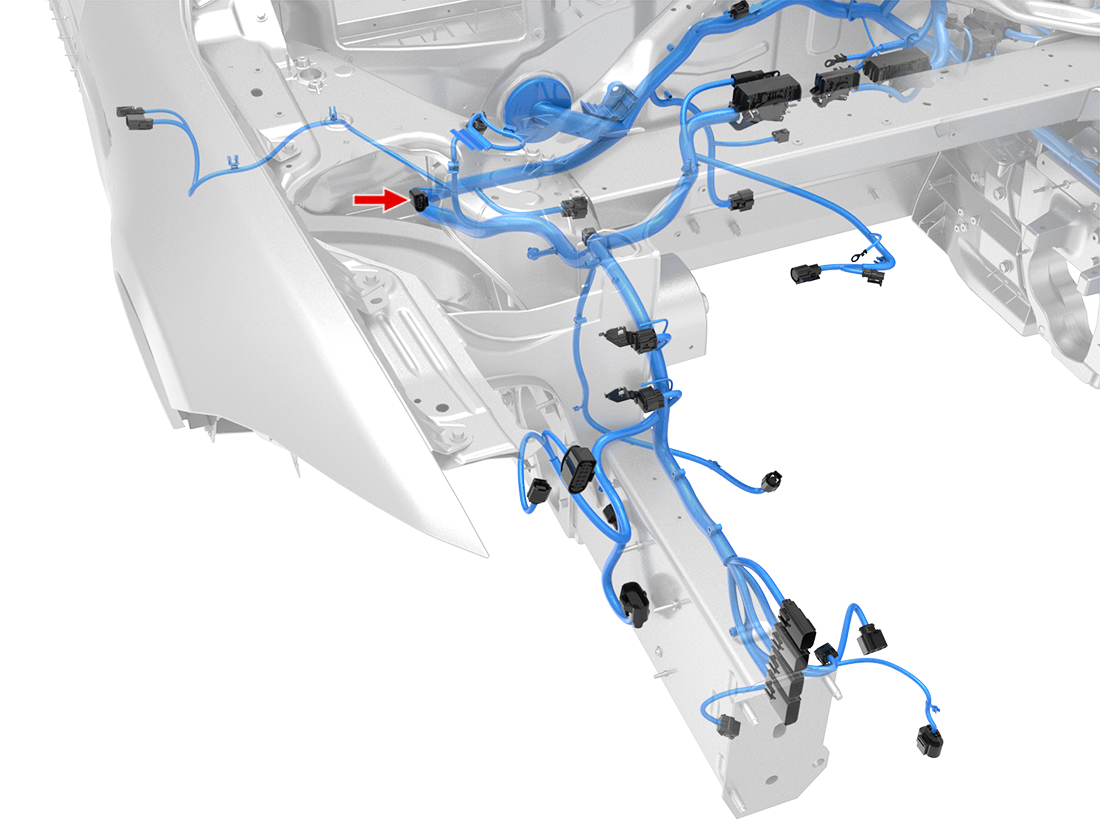

Location:
Connector Detail: FEP 42511400
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BK/WH | 0.35 | SN | X180A-17 | AMP 1564324-1 | AMP 964971-1 | 1116645-00-B | |
| 1 | GY/WH | 0.35 | SN | X953F-18 | AMP 1564324-1 | AMP 964971-1 | 1116645-00-B | |
| 2 | WH | 0.35 | SN | X180A-16 | AMP 1564324-1 | AMP 964971-1 | 1116645-00-B | |
| 2 | RD/YE | 0.35 | SN | X953F-19 | AMP 1564324-1 | AMP 964971-1 | 1116645-00-B | |
| 3 | RD/WH | 0.35 | SN | X180A-1 | AMP 1564324-1 | AMP 964971-1 | 1116645-00-B | |
| 3 | RD/VT | 0.35 | SN | X953F-20 | AMP 1564324-1 | AMP 964971-1 | 1116645-00-B | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BK/WH | 0.35 | SN | X180A-17 | AMP 1564324-1 | AMP 964971-1 | 1116645-00-B | |
| 1 | GY/WH | 0.35 | SN | X953F-18 | AMP 1564324-1 | AMP 964971-1 | 1116645-00-B | |
| 2 | WH | 0.35 | SN | X180A-16 | AMP 1564324-1 | AMP 964971-1 | 1116645-00-B | |
| 2 | RD/YE | 0.35 | SN | X953F-19 | AMP 1564324-1 | AMP 964971-1 | 1116645-00-B | |
| 3 | RD/WH | 0.35 | SN | X180A-1 | AMP 1564324-1 | AMP 964971-1 | 1116645-00-B | |
| 3 | RD/VT | 0.35 | SN | X953F-20 | AMP 1564324-1 | AMP 964971-1 | 1116645-00-B | |
