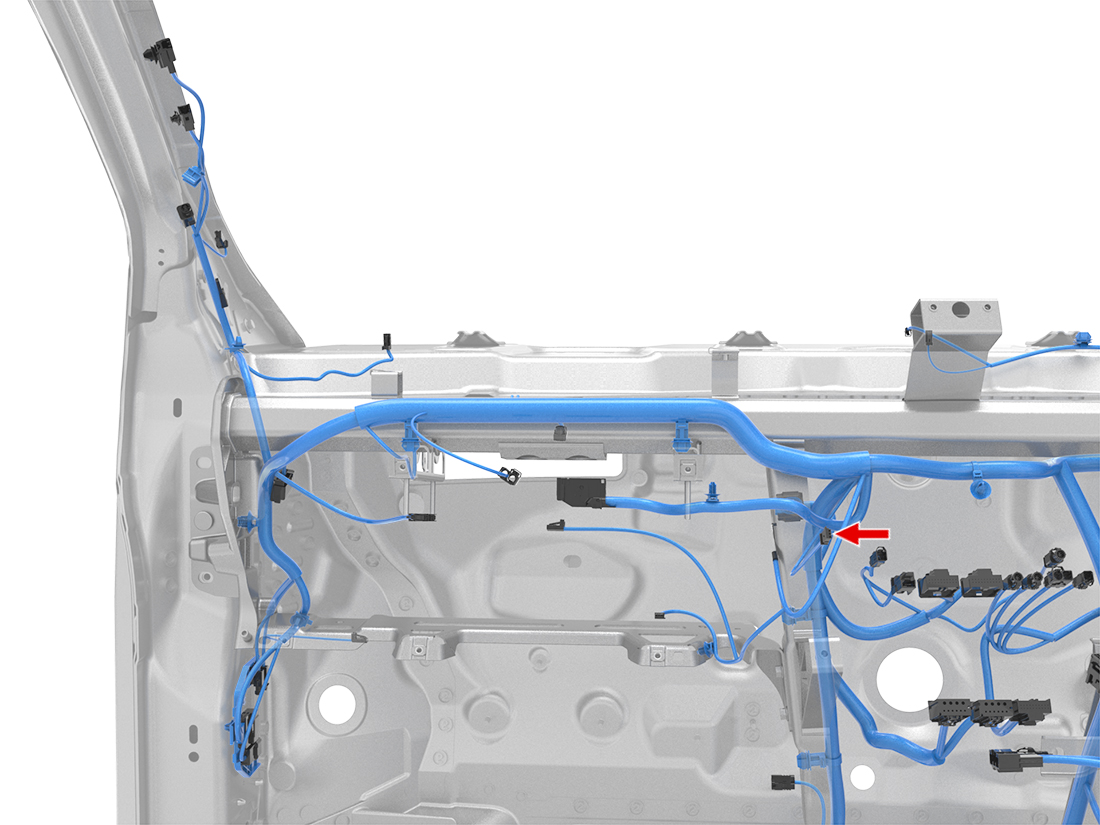

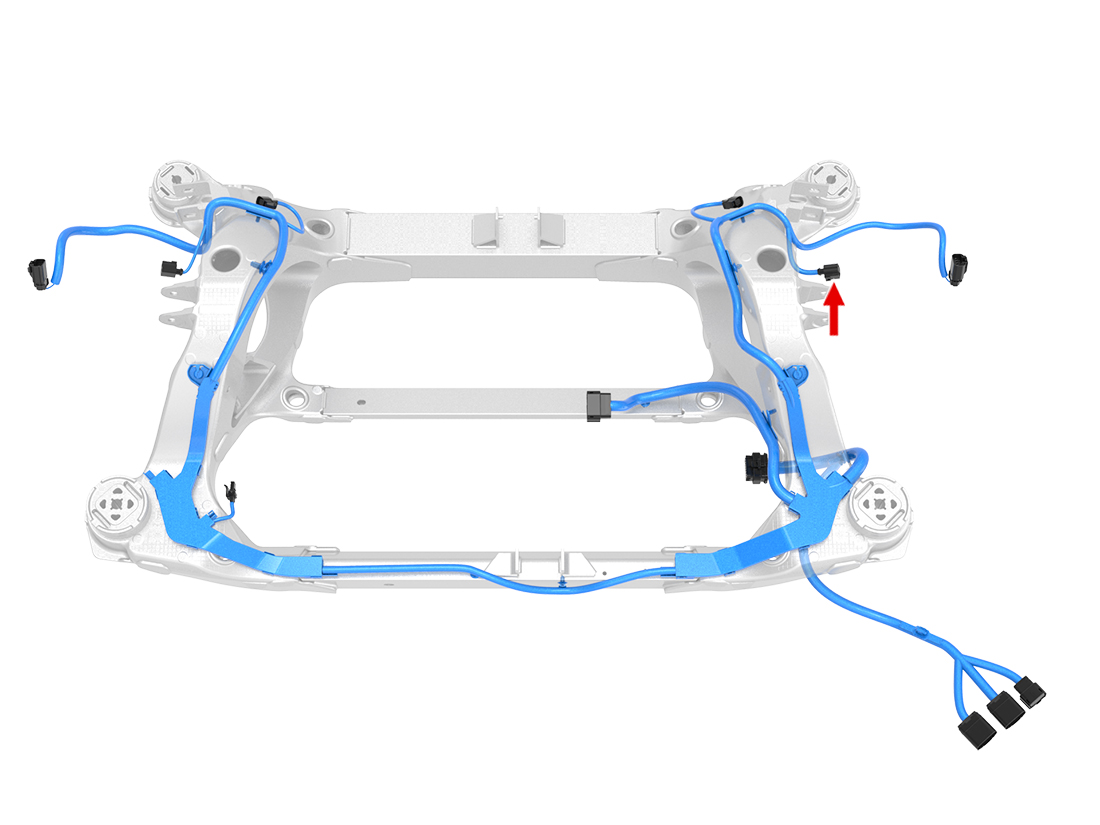

X185 - s-rhd-sop10
Location:
Location:
Location:
Connector Detail: AMP 1-1718346-1
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: FEP 42511400
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GY/WH | 0.5 | SN | X932F-9 | AMP 1241380-1 | AMP 964971-1 | 1116645-00-B | |
| 2 | BN | 0.5 | SN | X932F-8 | AMP 1241380-1 | AMP 964971-1 | 1116645-00-B | |
| 3 | RD/VT | 0.5 | SN | X932F-7 | AMP 1241380-1 | AMP 964971-1 | 1116645-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BN | 0.13 | SN | X060-17 | AMP 1355717-1 | 1099455-00-B | ||
| 2 | BU | 0.35 | SN | X060-19 | AMP 5-928999-1 | 1099455-00-B | ||
| 3 | BK | 0.35 | SN | GND_IP_R-1 | AMP 5-928999-1 | 1099455-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BN | 0.13 | SN | X060-17 | AMP 1355717-1 | 1099455-00-B | ||
| 2 | BU | 0.35 | SN | X060-19 | AMP 5-928999-1 | 1099455-00-B | ||
| 3 | BK | 0.35 | SN | GND_IP_L-1 | AMP 5-928999-1 | 1099455-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GY/WH | 0.5 | SN | X932F-9 | AMP 1241380-1 | AMP 964971-1 | 1116645-00-B | |
| 2 | BN | 0.5 | SN | X932F-8 | AMP 1241380-1 | AMP 964971-1 | 1116645-00-B | |
| 3 | RD/VT | 0.5 | SN | X932F-7 | AMP 1241380-1 | AMP 964971-1 | 1116645-00-B |
