X186 - s-rhd-sop10

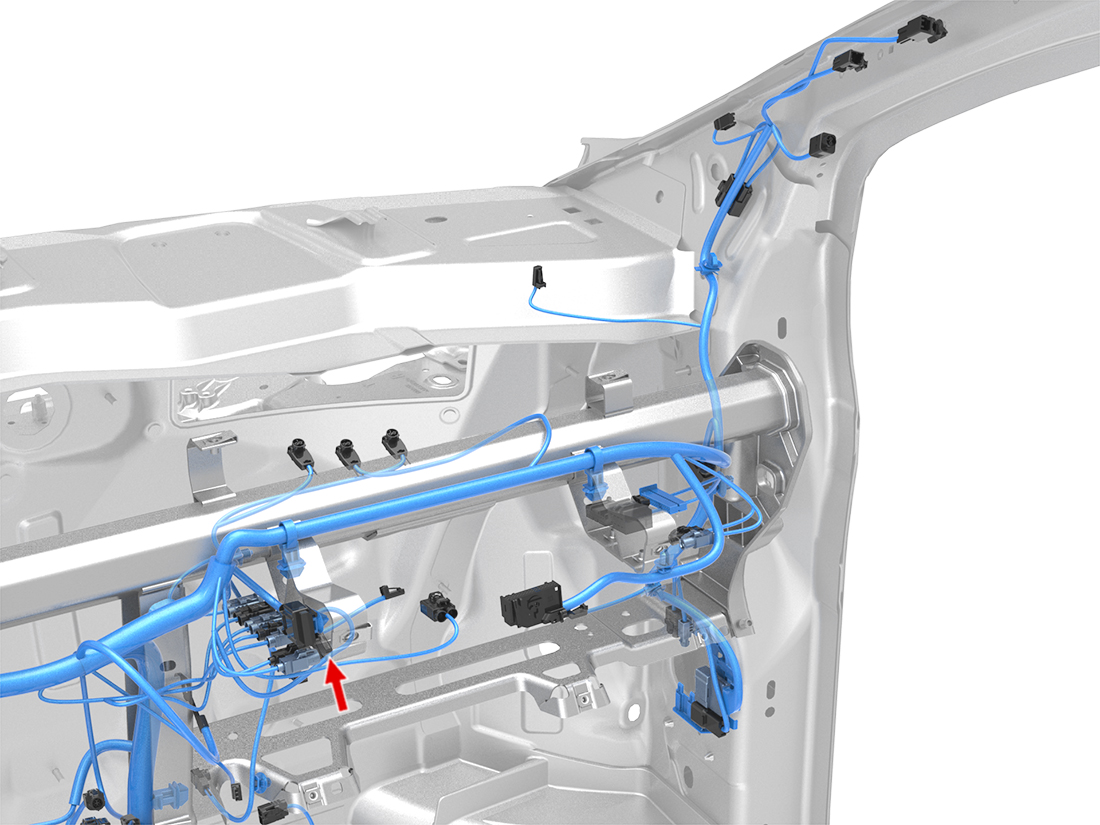

Location:
Location:
Connector Detail: AMP 1-178128-2
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | 0.5 | SN | GND_IP_R-1 | AMP 1-175195-5 | 1099425-00-C | ||
| 2 | GY | 0.5 | SN | X060-4 | AMP 1-175195-5 | 1099425-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | 0.5 | SN | GND_IP_L-1 | AMP 1-175195-5 | 1099425-00-C | ||
| 2 | GY | 0.5 | SN | X060-4 | AMP 1-175195-5 | 1099425-00-C |
