X187 - s-rhd-sop10

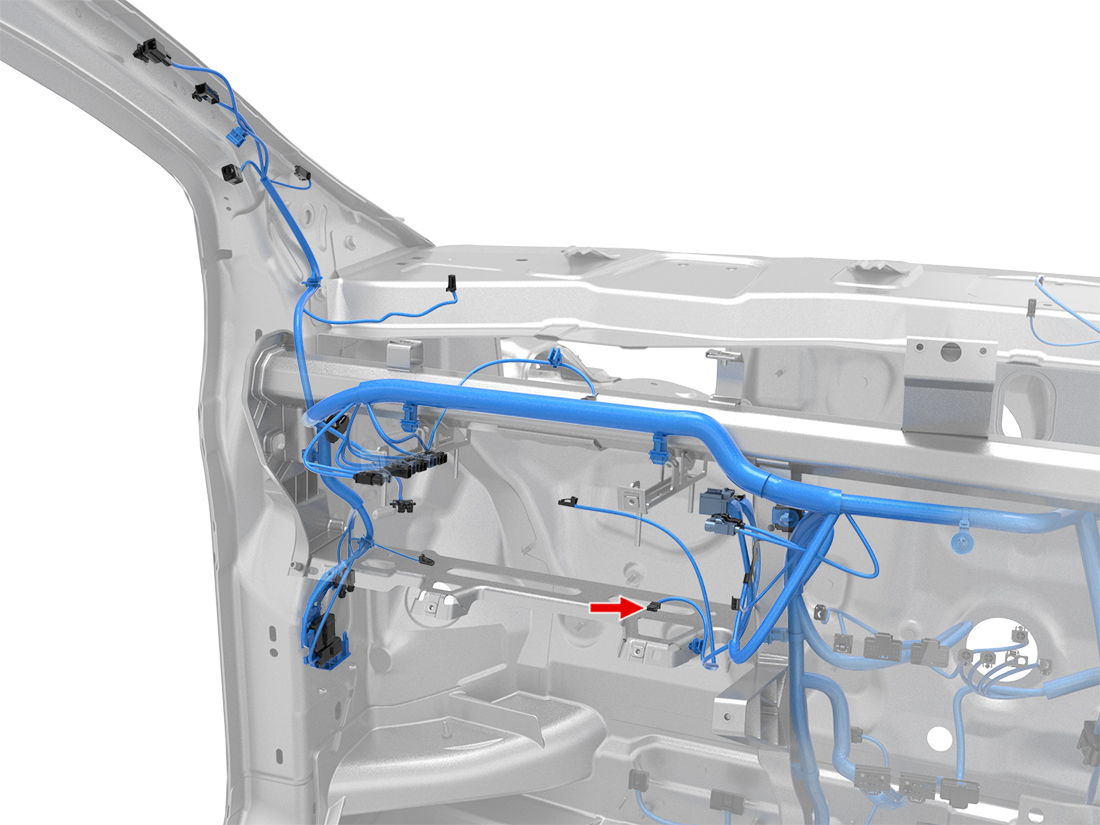

Location:

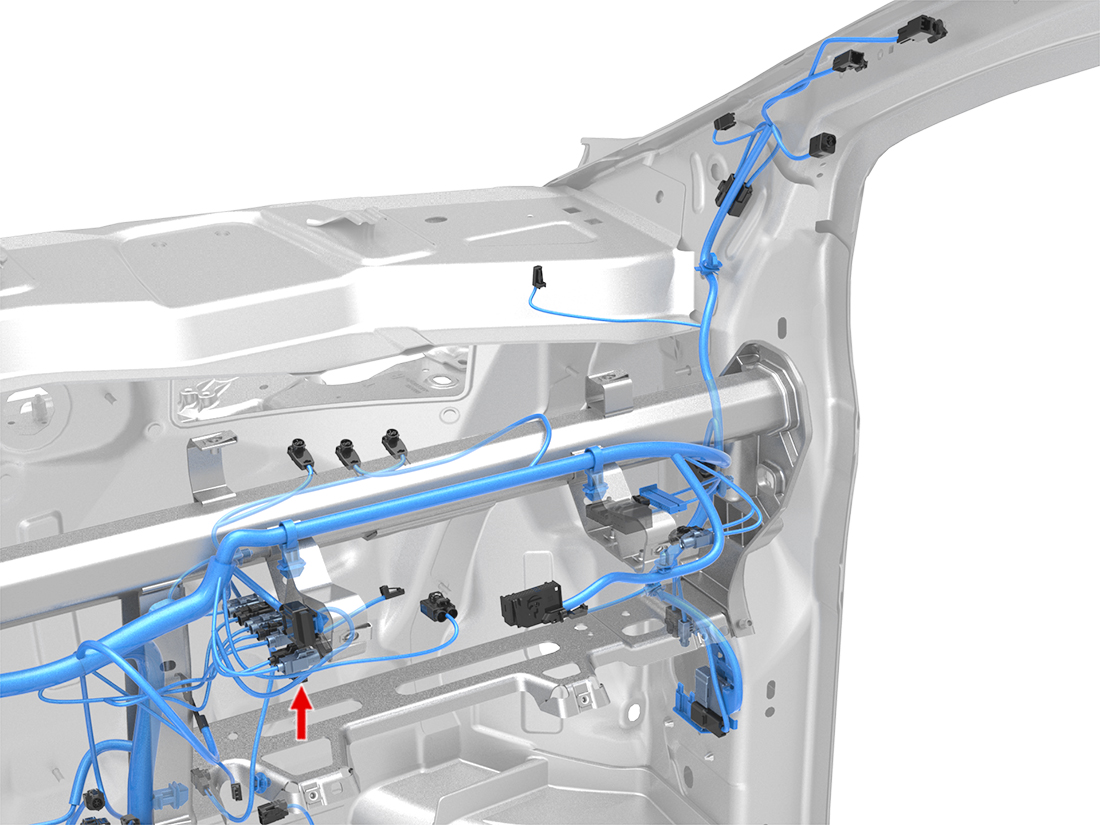

Location:
Connector Detail: AMP 1-1718346-1
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | 0.35 | SN | GND_IP_R-1 | AMP 5-928999-1 | 1099455-00-B | ||
| 3 | GY | 0.13 | SN | X060-18 | AMP 1355717-1 | 1099455-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | 0.35 | SN | GND_IP_L-1 | AMP 5-928999-1 | 1099455-00-B | ||
| 3 | GY | 0.13 | SN | X060-18 | AMP 1355717-1 | 1099455-00-B |
