X189 - s-rhd-sop10

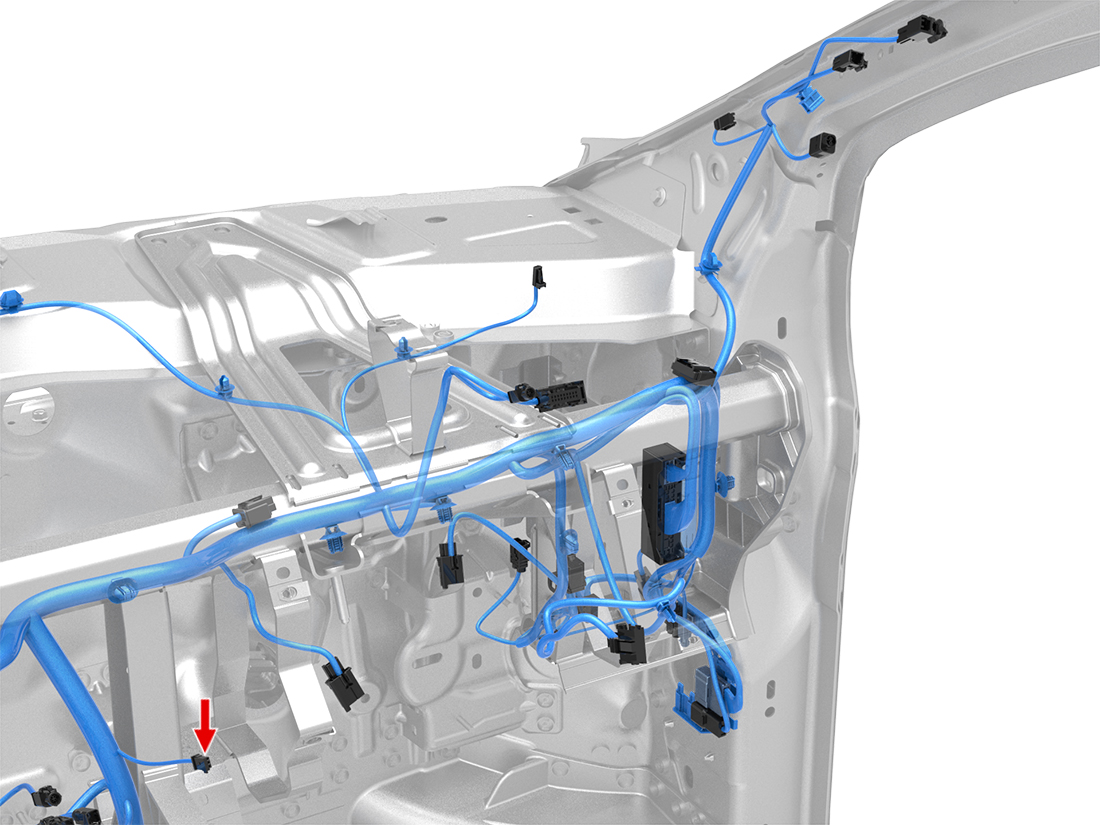

Location:

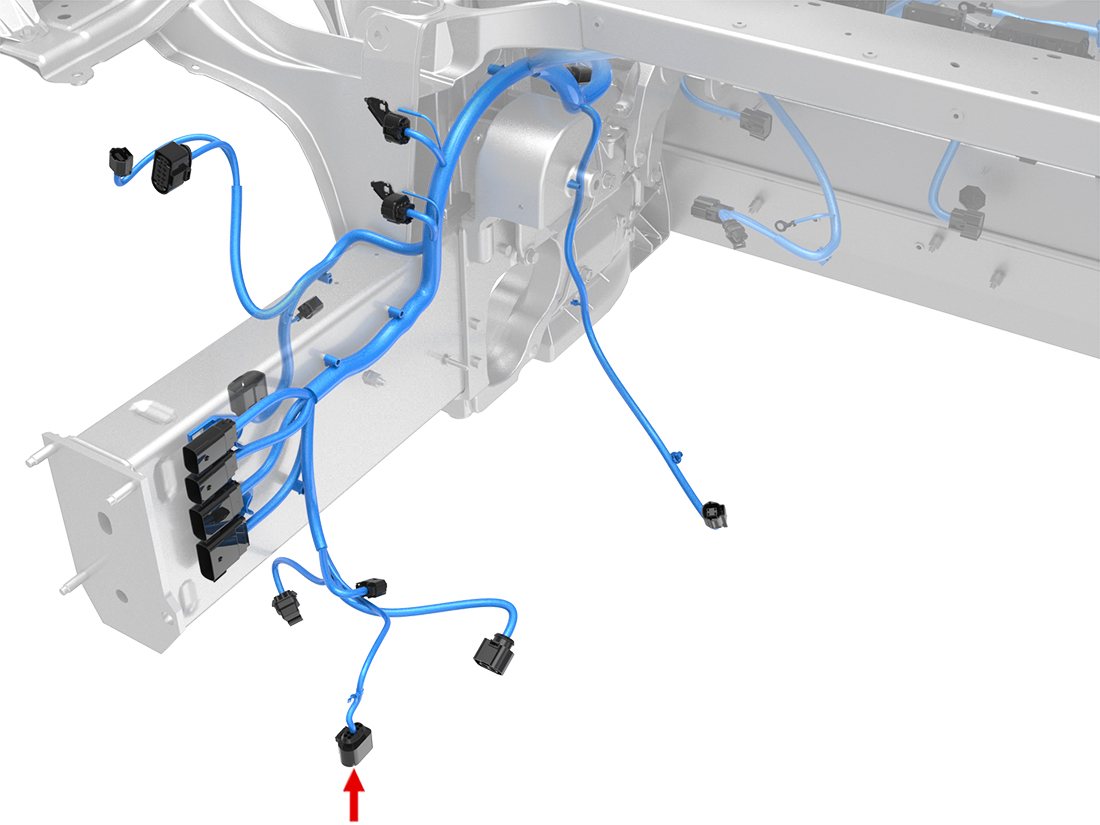

Location:
Location:
Connector Detail: AMP 1-1718346-1
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: FEP 42122600
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 0.35 | SN | X181A-8 | AMP 969005-2 | AMP 964971-1 | 1099471-00-B | |
| 2 | WH | 0.35 | SN | X181A-9 | AMP 969005-2 | AMP 964971-1 | 1099471-00-B | |
| 3 | GN | 0.35 | SN | X181A-16 | AMP 969005-2 | AMP 964971-1 | 1099471-00-B | |
| 4 | YE | 0.35 | SN | X181A-6 | AMP 969005-2 | AMP 964971-1 | 1099471-00-B | |
| 5 | GY | 0.35 | SN | X181A-14 | AMP 969005-2 | AMP 964971-1 | 1099471-00-B | |
| 6 | GY/WH | 0.35 | SN | X181A-11 | AMP 969005-2 | AMP 964971-1 | 1099471-00-B | |
| 7 | BK/GY | 0.35 | SN | X180A-22 | AMP 969005-2 | AMP 964971-1 | 1099471-00-B | |
| 8 | BU | 0.35 | SN | X181A-7 | AMP 969005-2 | AMP 964971-1 | 1099471-00-B | |
| 9 | VT | 0.35 | SN | X180A-23 | AMP 969005-2 | AMP 964971-1 | 1099471-00-B | |
| 10 | GN/WH | 0.35 | SN | X180A-8 | AMP 969005-2 | AMP 964971-1 | 1099471-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | VT | 0.13 | SN | X060-24 | AMP 1355717-1 | 1099455-00-B | ||
| 2 | BN | 0.13 | SN | X060-5 | AMP 1355717-1 | 1099455-00-B | ||
| 3 | BK | 0.35 | SN | GND_IP_L-1 | AMP 5-928999-1 | 1099455-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | VT | 0.13 | SN | X060-24 | AMP 1355717-1 | 1099455-00-B | ||
| 2 | BN | 0.13 | SN | X060-5 | AMP 1355717-1 | 1099455-00-B | ||
| 3 | BK | 0.35 | SN | GND_IP_L-1 | AMP 5-928999-1 | 1099455-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 0.35 | SN | X181A-8 | AMP 969005-2 | AMP 964971-1 | 1099471-00-B | |
| 2 | WH | 0.35 | SN | X181A-9 | AMP 969005-2 | AMP 964971-1 | 1099471-00-B | |
| 3 | GN | 0.35 | SN | X181A-16 | AMP 969005-2 | AMP 964971-1 | 1099471-00-B | |
| 4 | YE | 0.35 | SN | X181A-6 | AMP 969005-2 | AMP 964971-1 | 1099471-00-B | |
| 5 | GY | 0.35 | SN | X181A-14 | AMP 969005-2 | AMP 964971-1 | 1099471-00-B | |
| 6 | GY/WH | 0.35 | SN | X181A-11 | AMP 969005-2 | AMP 964971-1 | 1099471-00-B | |
| 7 | BK/GY | 0.35 | SN | X180A-22 | AMP 969005-2 | AMP 964971-1 | 1099471-00-B | |
| 8 | BU | 0.35 | SN | X181A-7 | AMP 969005-2 | AMP 964971-1 | 1099471-00-B | |
| 9 | VT | 0.35 | SN | X180A-23 | AMP 969005-2 | AMP 964971-1 | 1099471-00-B | |
| 10 | GN/WH | 0.35 | SN | X180A-8 | AMP 969005-2 | AMP 964971-1 | 1099471-00-B |
