X190A - s-rhd-sop10

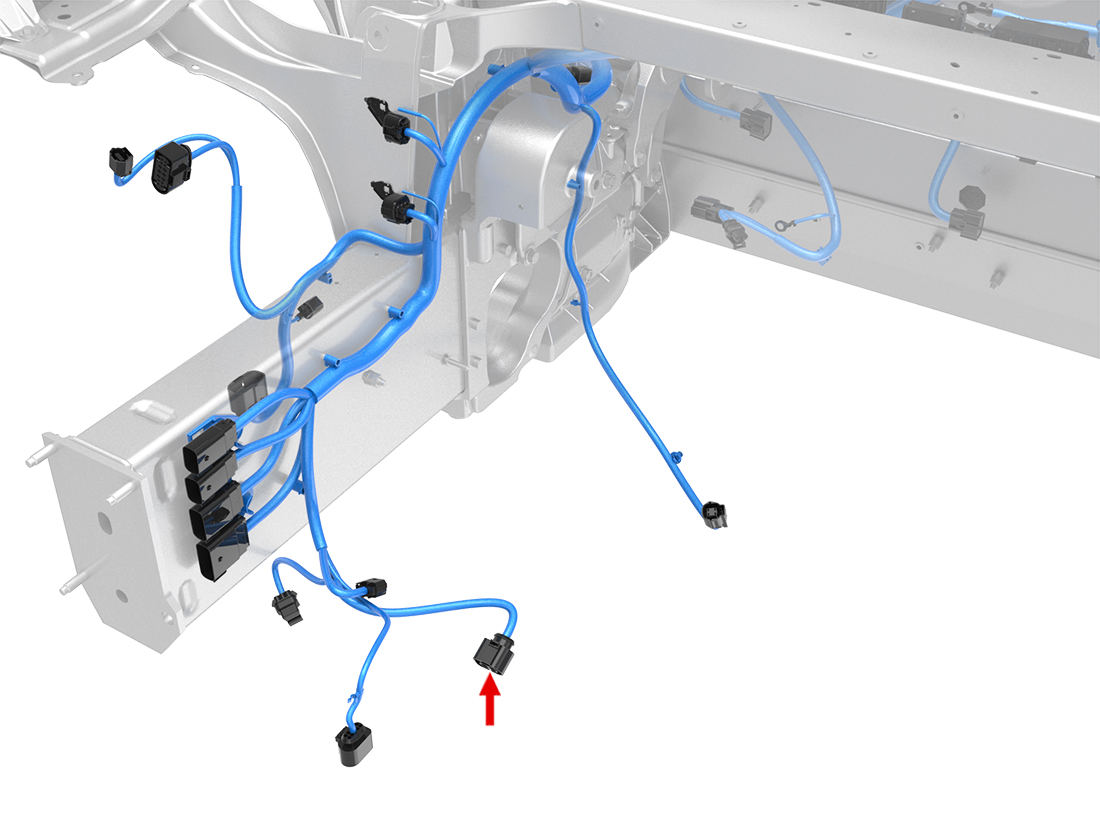

Location:
Connector Detail: FEP 42122900
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/BU | 4 | SN | X548-1 | AMP 969044-1 | AMP 1394512-1 | 1102095-00-B | |
| 2 | BK | 4 | SN | G510-1 | AMP 969044-1 | AMP 1394512-1 | 1102095-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/BU | 4 | SN | X548-1 | AMP 969044-1 | AMP 1394512-1 | 1102095-00-B | |
| 2 | BK | 4 | SN | G510-1 | AMP 969044-1 | AMP 1394512-1 | 1102095-00-B |
