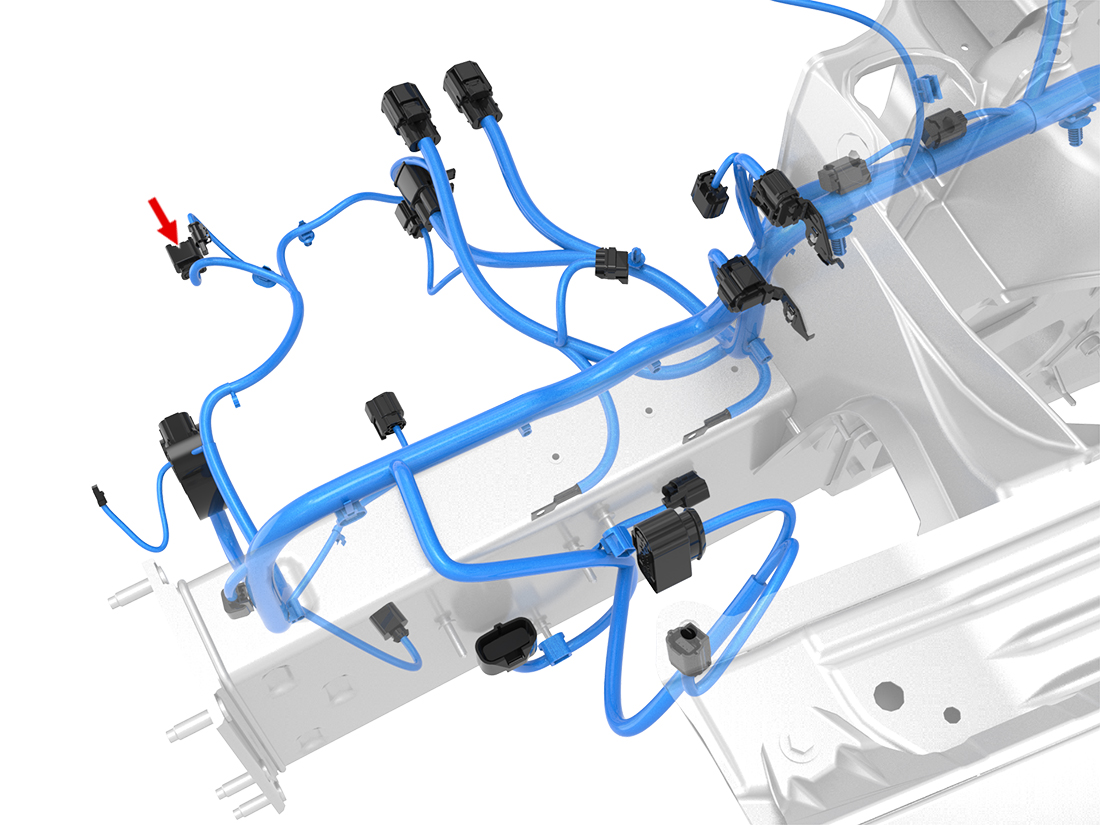

Location:
Connector Detail: Kostal 09444031
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | VT | 0.35 | AG | X181A-1 | Kostal 22124492050 | Kostal 10800444522 | 1108344-00-C | |
| 2 | RD/GY | 0.35 | AG | X181A-10 | Kostal 22124492050 | Kostal 10800444522 | 1108344-00-C | |
| 3 | OG | 0.35 | AG | X181A-2 | Kostal 22124492050 | Kostal 10800444522 | 1108344-00-C | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | VT | 0.35 | AG | X181A-1 | Kostal 22124492050 | Kostal 10800444522 | 1108344-00-C | |
| 2 | RD/GY | 0.35 | AG | X181A-10 | Kostal 22124492050 | Kostal 10800444522 | 1108344-00-C | |
| 3 | OG | 0.35 | AG | X181A-2 | Kostal 22124492050 | Kostal 10800444522 | 1108344-00-C | |
