X192 - s-rhd-sop10

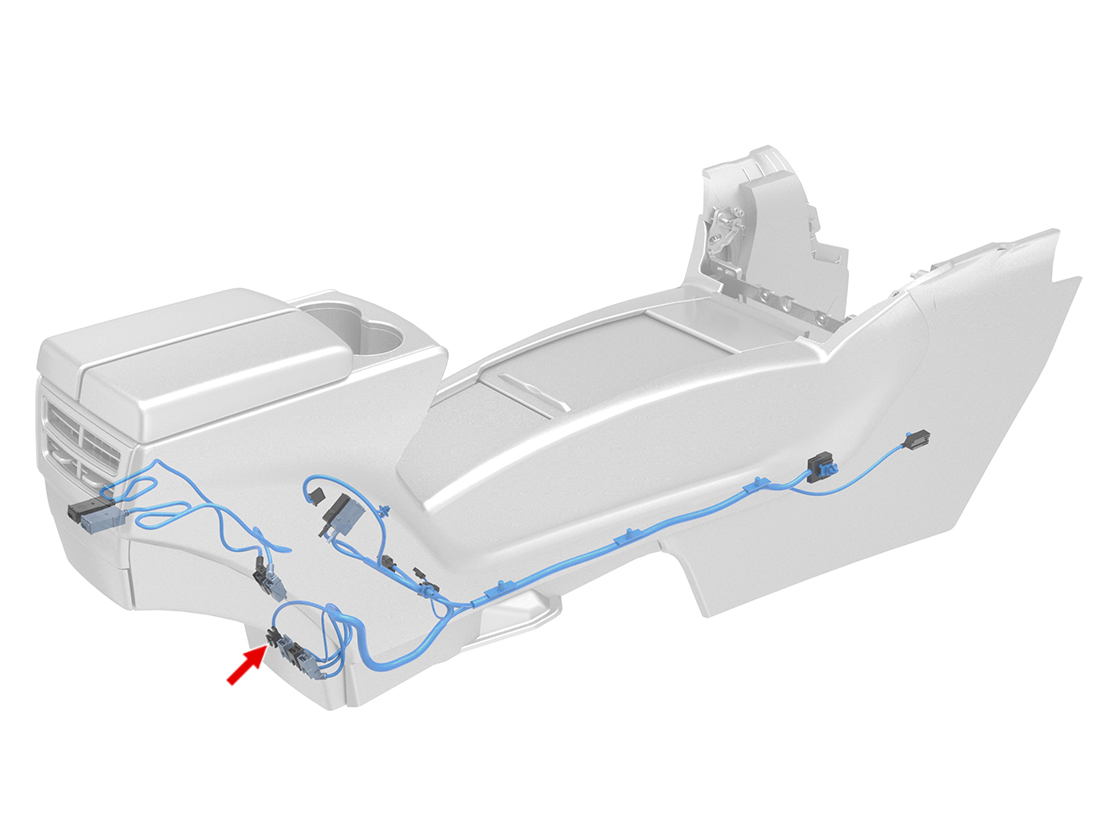

Location:
Connector Detail: Molex 15975041
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 3 | BK/WH | 0.75 | SN | X930M-10 | Molex 39000038 | 1108395-00-C | ||
| 4 | RD | 0.75 | SN | X930M-1 | Molex 39000038 | 1108395-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 3 | BK/WH | 0.75 | SN | X930M-10 | Molex 39000038 | 1108395-00-C | ||
| 4 | RD | 0.75 | SN | X930M-1 | Molex 39000038 | 1108395-00-C |
