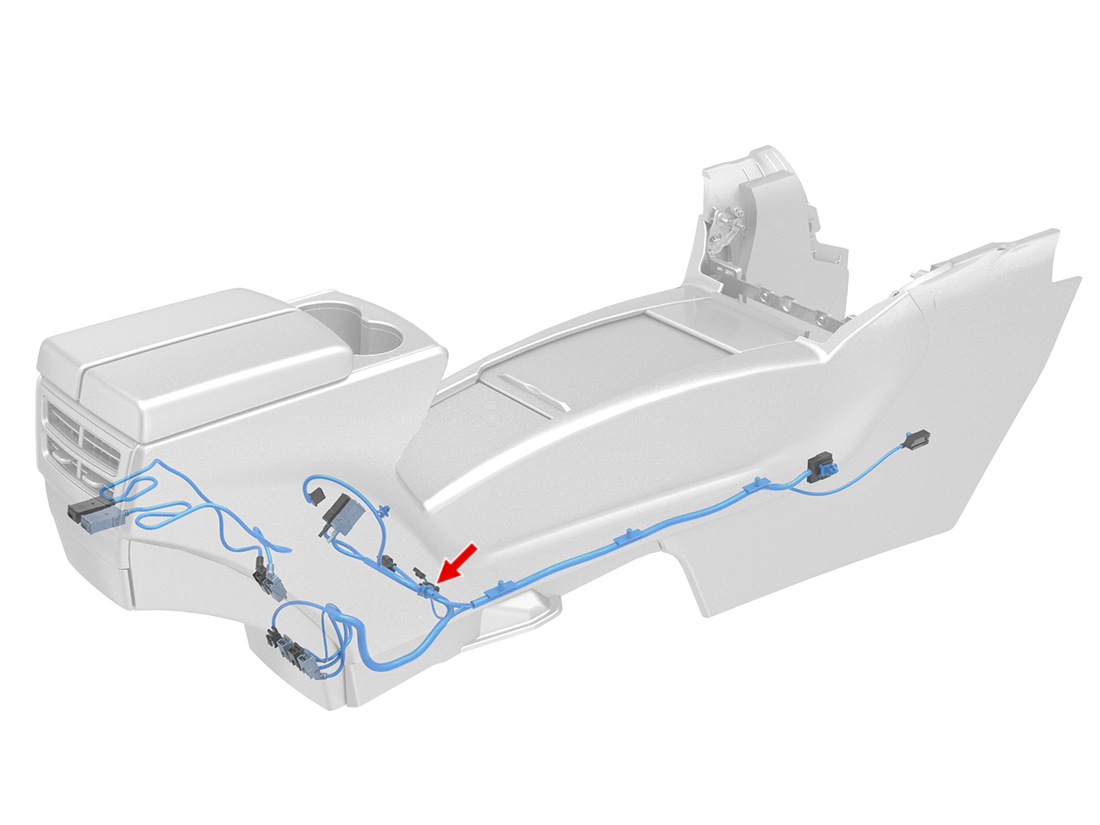

Location:
Connector Detail: Yazaki 7283-6445-40
Color: LightGray
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BK | 1 | SN | X930M-18 | Yazaki 7116-4271-02 | | 1099563-00-A | |
| 1 | BK | 1 | SN | Z2-GND-R | Yazaki 7116-4271-02 | | 1099563-00-A | |
| 2 | RD | 1 | SN | X930M-11 | Yazaki 7116-4271-02 | | 1099563-00-A | |
| 2 | RD | 1 | SN | Z1-PAC-R | Yazaki 7116-4271-02 | | 1099563-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BK | 1 | SN | X930M-18 | Yazaki 7116-4271-02 | | 1099563-00-A | |
| 1 | BK | 1 | SN | Z2-GND-R | Yazaki 7116-4271-02 | | 1099563-00-A | |
| 2 | RD | 1 | SN | X930M-11 | Yazaki 7116-4271-02 | | 1099563-00-A | |
| 2 | RD | 1 | SN | Z1-PAC-R | Yazaki 7116-4271-02 | | 1099563-00-A | |
