X194A - s-rhd-sop10

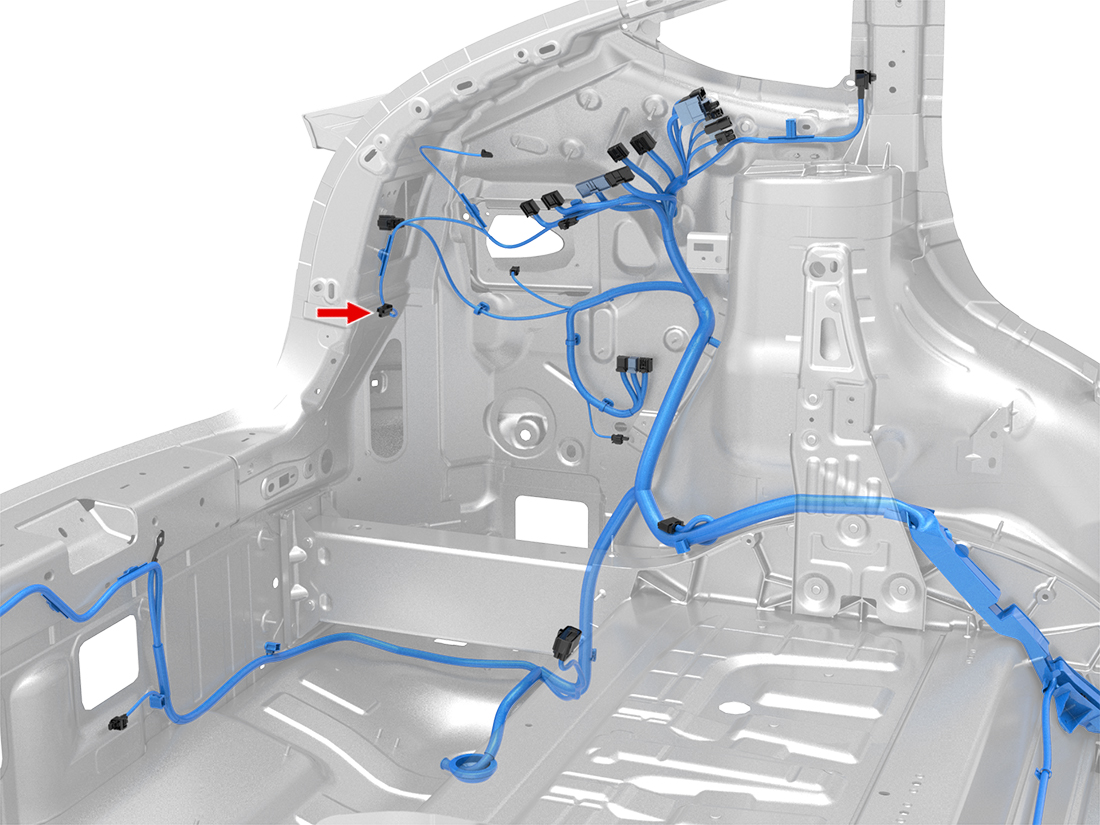

Location:
Connector Detail: DELPHI 12176836
Color: MediumGrey
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| A | RD/VT | 1 | SN | X912M-11 | DELPHI 12110844 | 1108330-00-C | ||
| C | BK | 1 | SN | GND_LR-1 | DELPHI 12110844 | 1108330-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| A | RD/VT | 1 | SN | X912M-11 | DELPHI 12110844 | 1108330-00-C | ||
| C | BK | 1 | SN | GND_LR-1 | DELPHI 12110844 | 1108330-00-C |
