X203 - s-rhd-sop10

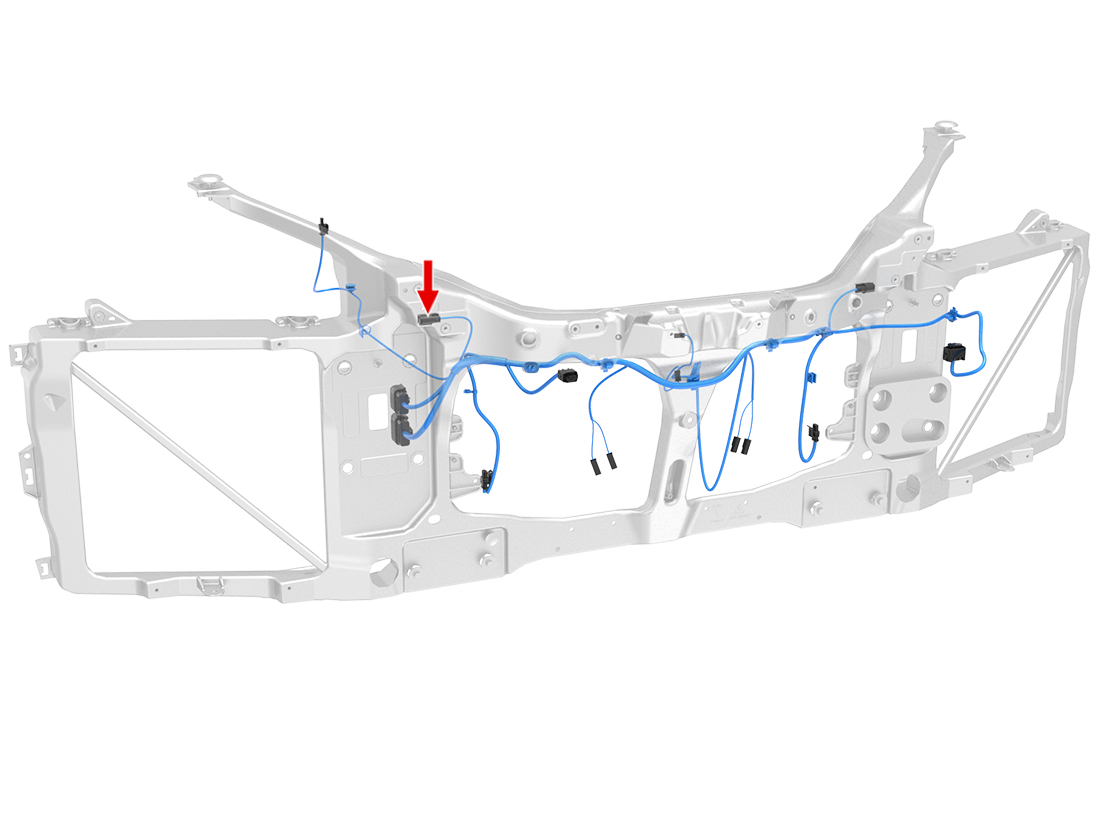

Location:
Location:
Connector Detail: AMP 2-1718643-1
Color: Natural
Serviceability: Terminal Pigtail
Connector Detail: Molex 31403-2200
Color: Gray
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/GN | 0.5 | SN | X965F-13 | Molex 33468-0023 | Tesla MAT-120-206 | 1099523-00-A | |
| 2 | BN/WH | 0.5 | SN | X965F-14 | Molex 33468-0023 | Tesla MAT-120-206 | 1099523-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | YE | 0.35 | AG | X915M-8 | AMP 7-1452665-3 | AMP 967067-2 | 1108515-00-C | |
| 2 | GN | 0.35 | AG | X915M-16 | AMP 7-1452665-3 | AMP 967067-2 | 1108515-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | YE | 0.35 | AG | X915M-8 | AMP 7-1452665-3 | AMP 967067-2 | 1108515-00-C | |
| 2 | GN | 0.35 | AG | X915M-16 | AMP 7-1452665-3 | AMP 967067-2 | 1108515-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/GN | 0.5 | SN | X965F-13 | Molex 33468-0023 | Tesla MAT-120-206 | 1099523-00-A | |
| 2 | BN/WH | 0.5 | SN | X965F-14 | Molex 33468-0023 | Tesla MAT-120-206 | 1099523-00-A |
