X204 - s-rhd-sop10

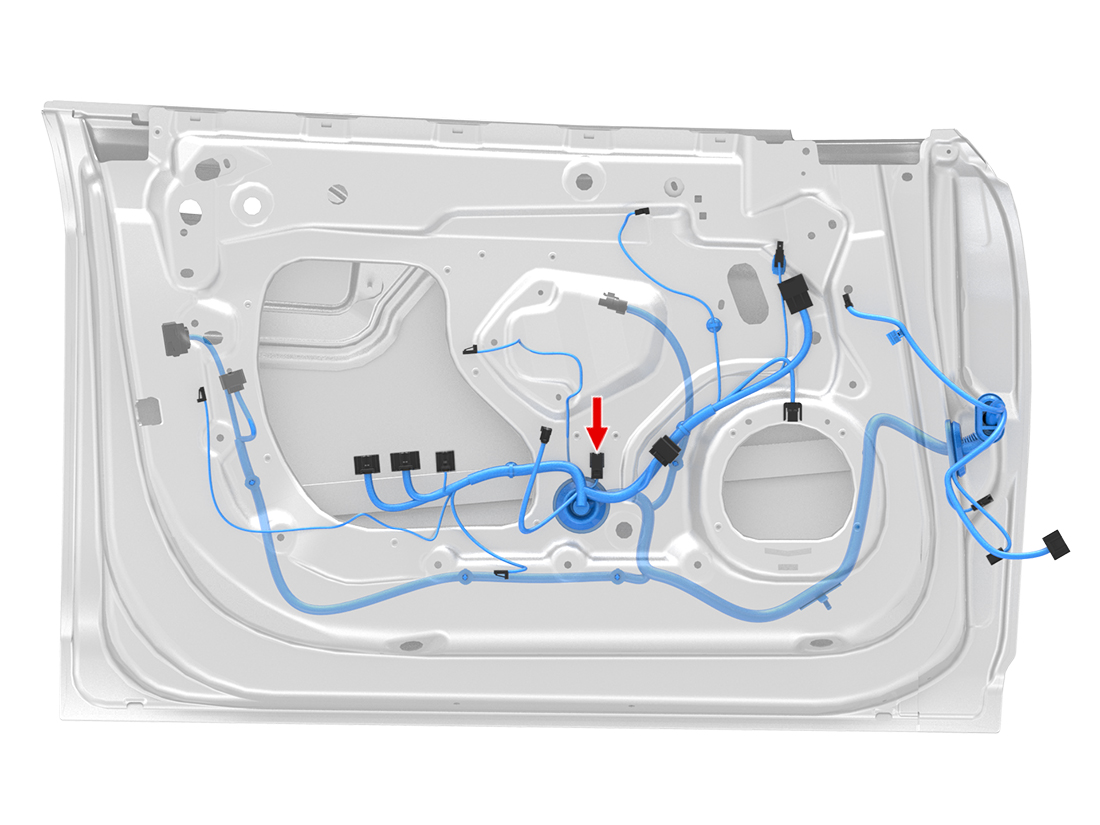

Location:

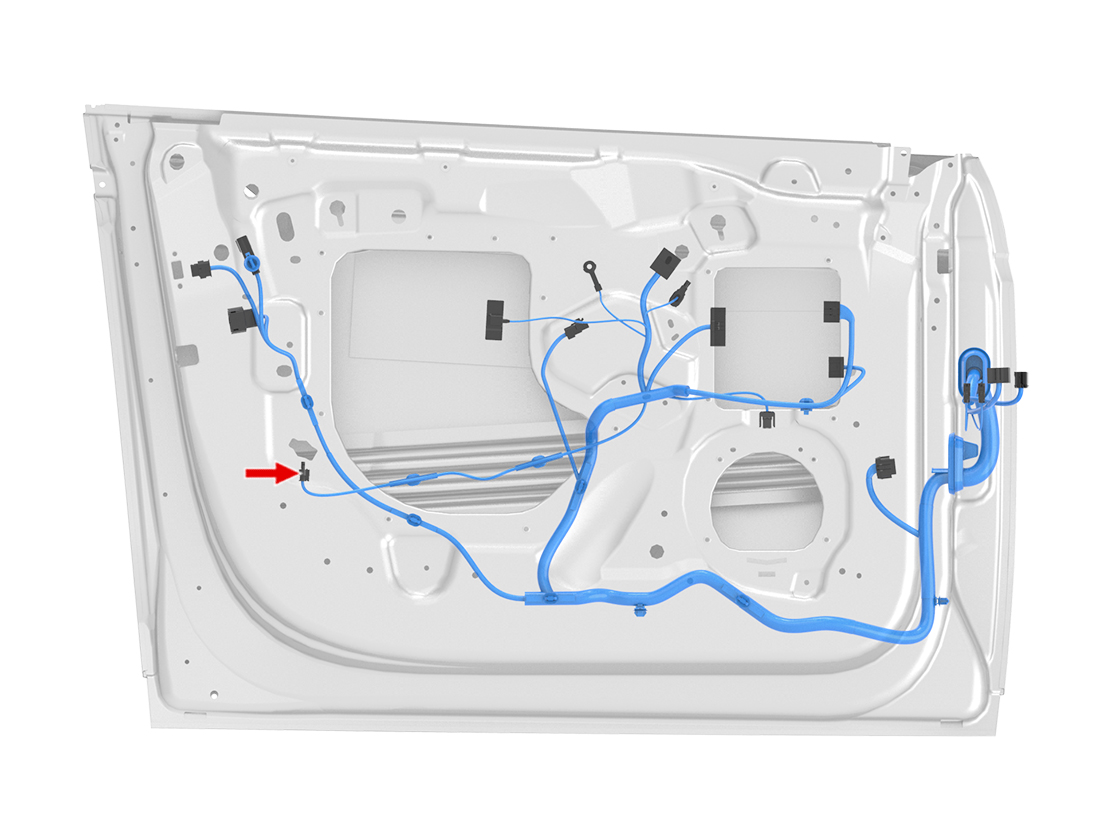

Location:
Connector Detail: AMP 1-1718643-1
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: Molex 31403-2600
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | OG/BK | 0.5 | SN | X943F-5 | Molex 33468-0002 | Tesla MAT-120-206 | 1099523-00-A | |
| 2 | GY/WH | 0.5 | SN | X943F-14 | Molex 33468-0002 | Tesla MAT-120-206 | 1099523-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | YE | 0.35 | AG | X920F-5 | AMP 7-1452665-3 | AMP 967067-2 | 1108515-00-C | |
| 2 | VT | 0.35 | AG | X920F-14 | AMP 7-1452665-3 | AMP 967067-2 | 1108515-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | YE | 0.35 | AG | X920F-5 | AMP 7-1452665-3 | AMP 967067-2 | 1108515-00-C | |
| 2 | VT | 0.35 | AG | X920F-14 | AMP 7-1452665-3 | AMP 967067-2 | 1108515-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | OG/BK | 0.5 | SN | X943F-5 | Molex 33468-0002 | Tesla MAT-120-206 | 1099523-00-A | |
| 2 | GY/WH | 0.5 | SN | X943F-14 | Molex 33468-0002 | Tesla MAT-120-206 | 1099523-00-A |
