X205 - s-rhd-sop10

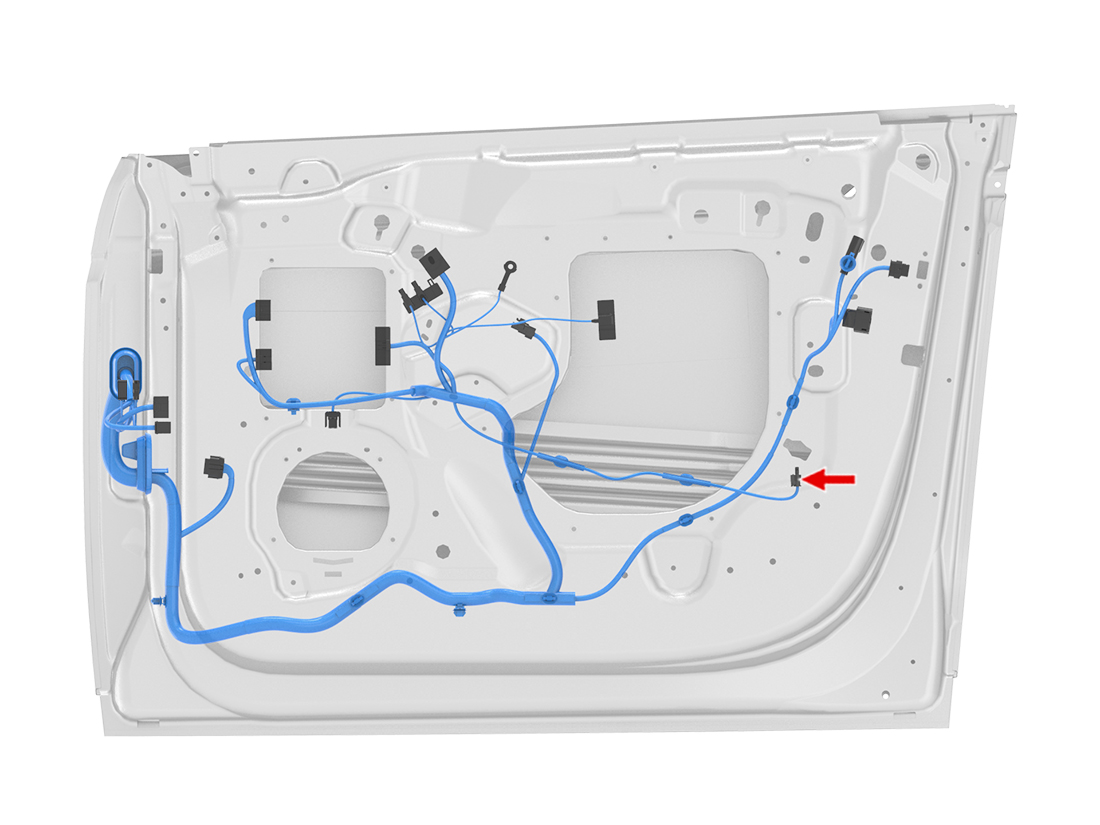

Location:

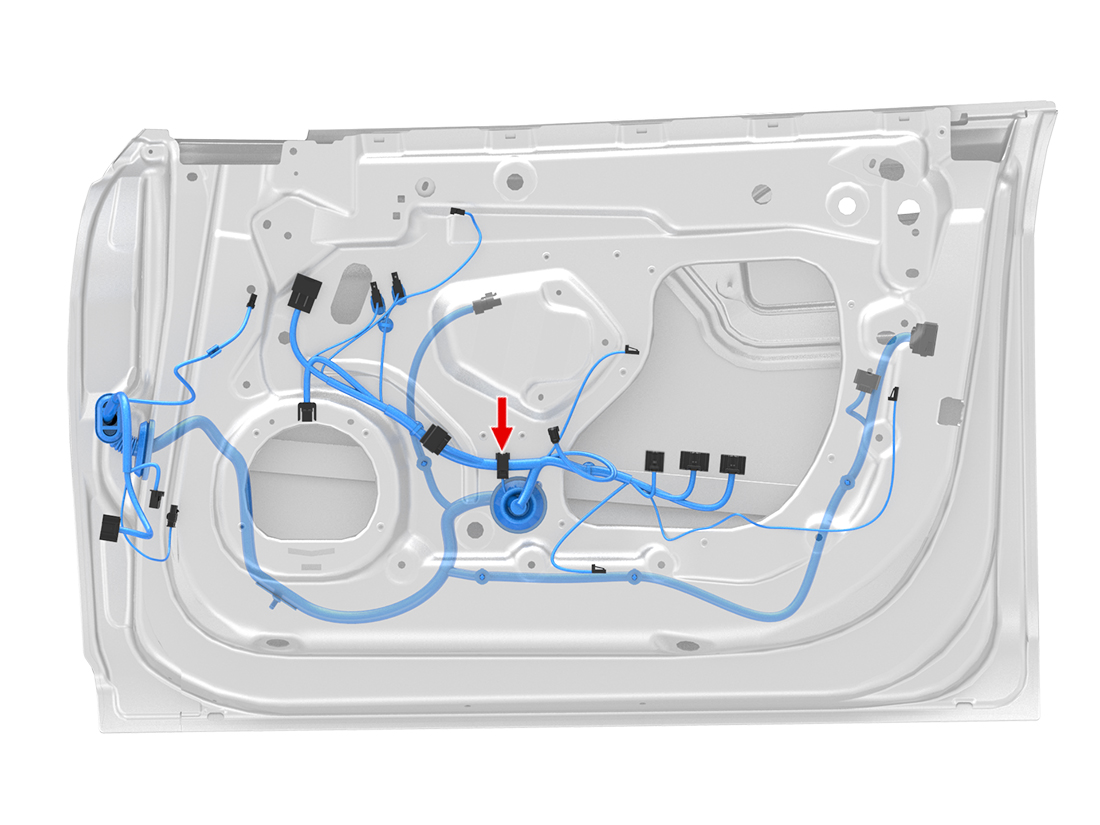

Location:
Connector Detail: AMP 1-1718643-1
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: Molex 31403-2600
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | WH/RD | 0.5 | SN | X944F-5 | Molex 33468-0002 | Tesla MAT-120-206 | 1099523-00-A | |
| 2 | WH/BU | 0.5 | SN | X944F-14 | Molex 33468-0002 | Tesla MAT-120-206 | 1099523-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | YE | 0.35 | AG | X922F-5 | AMP 7-1452665-3 | AMP 967067-2 | 1108515-00-C | |
| 2 | WH | 0.35 | AG | X922F-14 | AMP 7-1452665-3 | AMP 967067-2 | 1108515-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | YE | 0.35 | AG | X922F-5 | AMP 7-1452665-3 | AMP 967067-2 | 1108515-00-C | |
| 2 | WH | 0.35 | AG | X922F-14 | AMP 7-1452665-3 | AMP 967067-2 | 1108515-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | WH/RD | 0.5 | SN | X944F-5 | Molex 33468-0002 | Tesla MAT-120-206 | 1099523-00-A | |
| 2 | WH/BU | 0.5 | SN | X944F-14 | Molex 33468-0002 | Tesla MAT-120-206 | 1099523-00-A |
