X213 - s-rhd-sop10

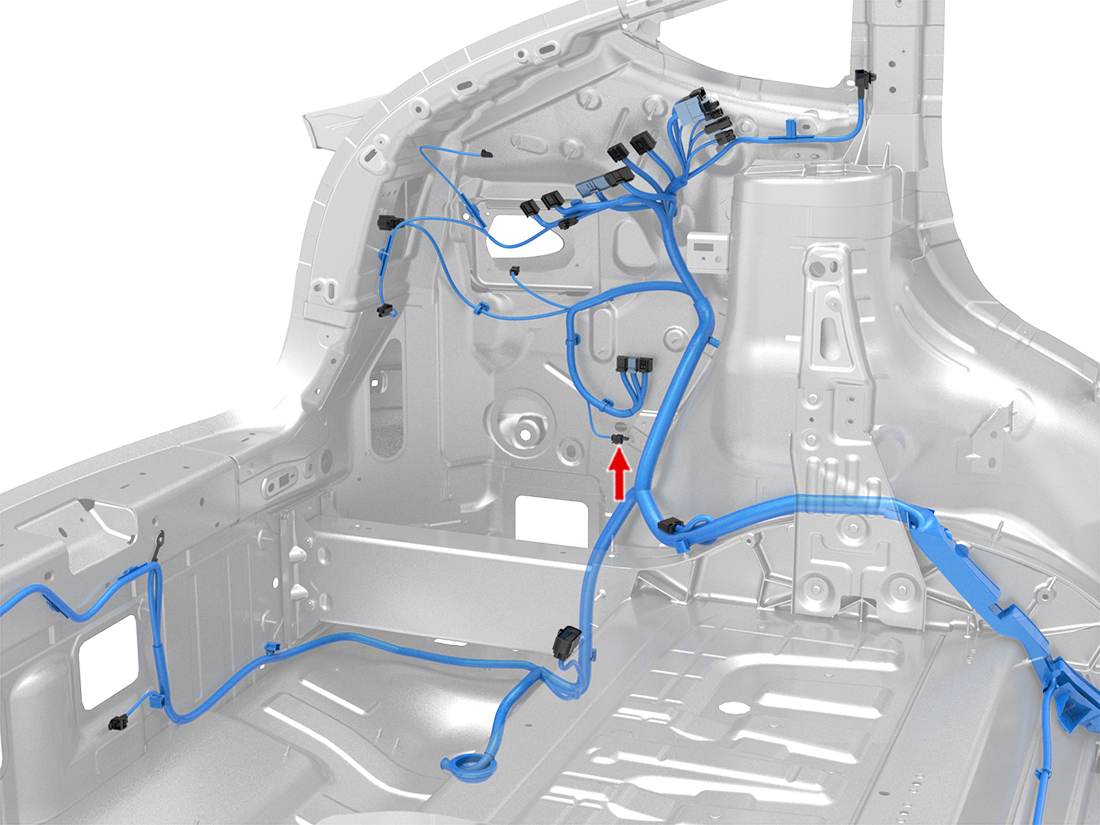

Location:
Connector Detail: AMP 3-1718643-1
Color: Blue
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | YE | 0.35 | AG | X201-29 | AMP 7-1452665-3 | AMP 967067-2 | 1108515-00-C | |
| 2 | BU | 0.35 | AG | X201-30 | AMP 7-1452665-3 | AMP 967067-2 | 1108515-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | YE | 0.35 | AG | X201-29 | AMP 7-1452665-3 | AMP 967067-2 | 1108515-00-C | |
| 2 | BU | 0.35 | AG | X201-30 | AMP 7-1452665-3 | AMP 967067-2 | 1108515-00-C |
