X217 - s-rhd-sop10

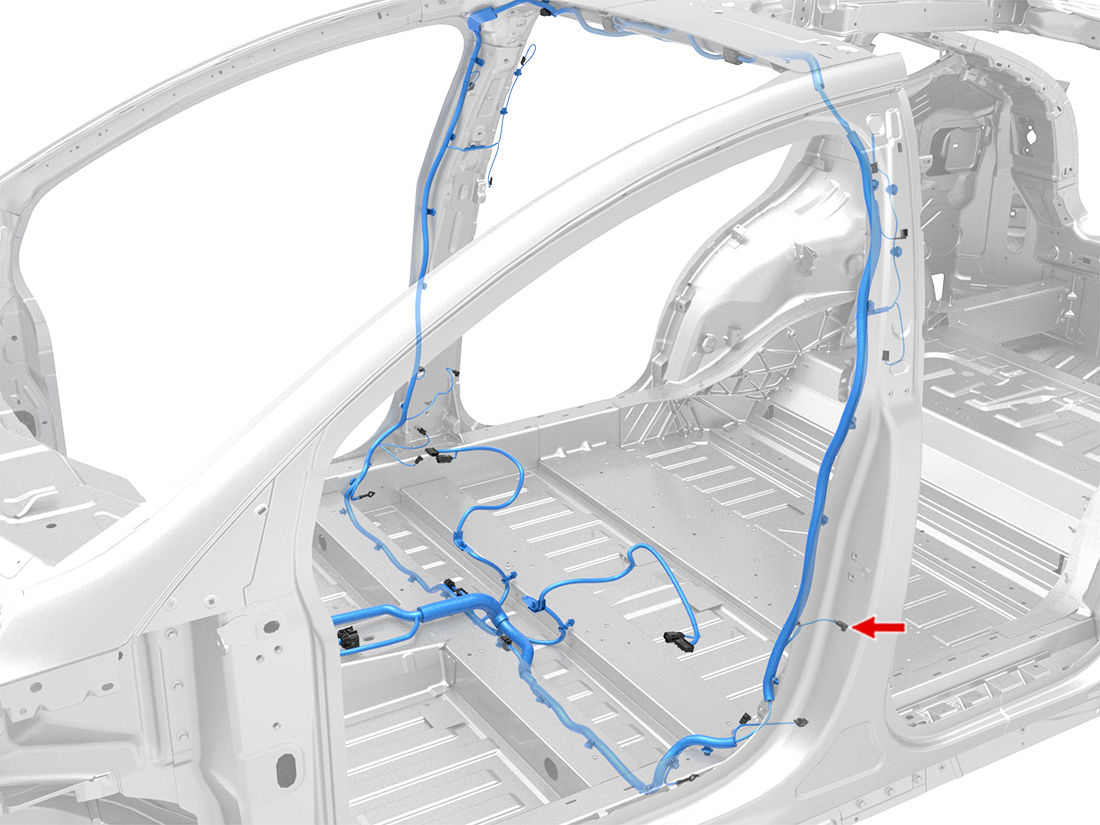

Location:
Connector Detail: DELPHI 33510816
Color: GN
Serviceability: Connector Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | OG | 0.35 | AU | X201-40 | - | - | 1057974-91-B | |
| 2 | GN | 0.35 | AU | X201-39 | - | - | 1057974-91-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | OG | 0.35 | AU | X201-40 | - | - | 1057974-91-B | |
| 2 | GN | 0.35 | AU | X201-39 | - | - | 1057974-91-B |
