X218 - s-rhd-sop10

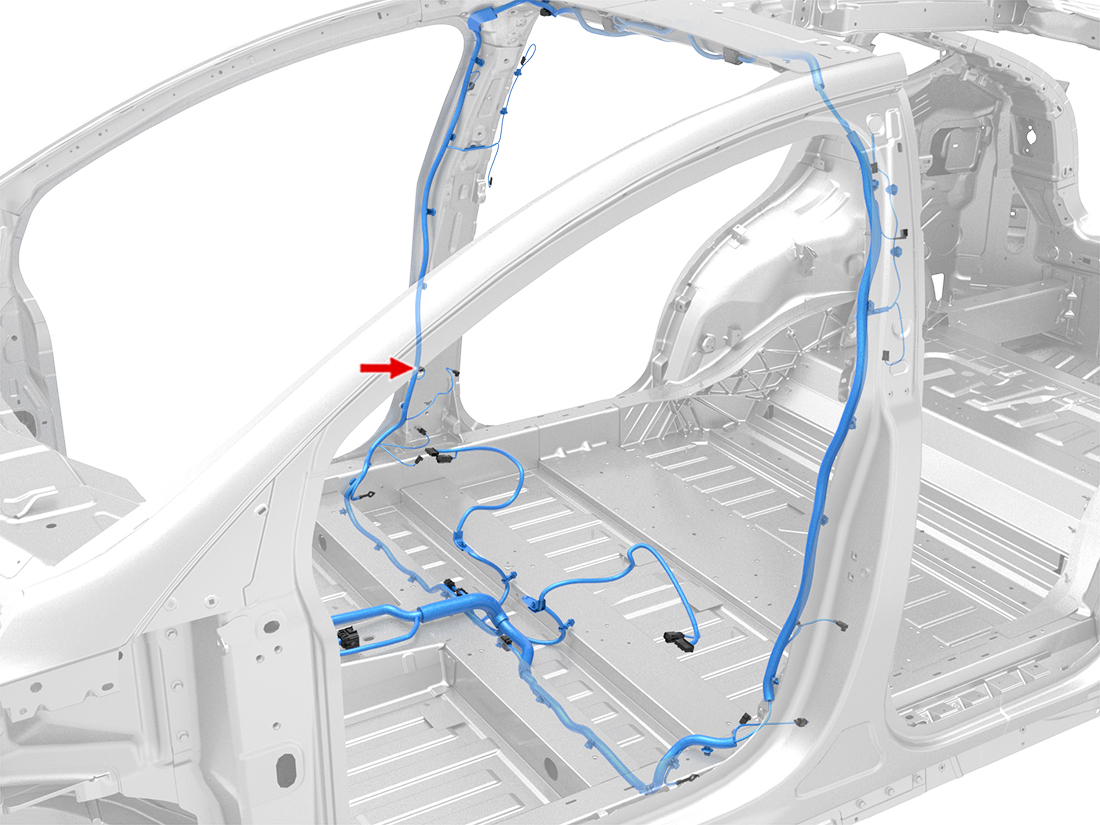

Location:
Location:
Connector Detail: Delphi 13925537
Color: BK
Serviceability: Connector Pigtail
Connector Detail: DELPHI 33510816
Color: GN
Serviceability: Connector Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | WH/RD | 0.5 | AU | X988F-3 | - | - | not found | |
| 2 | WH/BU | 0.5 | AU | X988F-17 | - | - | not found |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | OG | 0.35 | AU | X201-37 | - | - | 1057974-91-B | |
| 2 | GY | 0.35 | AU | X201-38 | - | - | 1057974-91-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | OG | 0.35 | AU | X201-37 | - | - | 1057974-91-B | |
| 2 | GY | 0.35 | AU | X201-38 | - | - | 1057974-91-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | WH/RD | 0.5 | AU | X988F-3 | - | - | not found | |
| 2 | WH/BU | 0.5 | AU | X988F-17 | - | - | not found |
