X220 - s-rhd-sop10

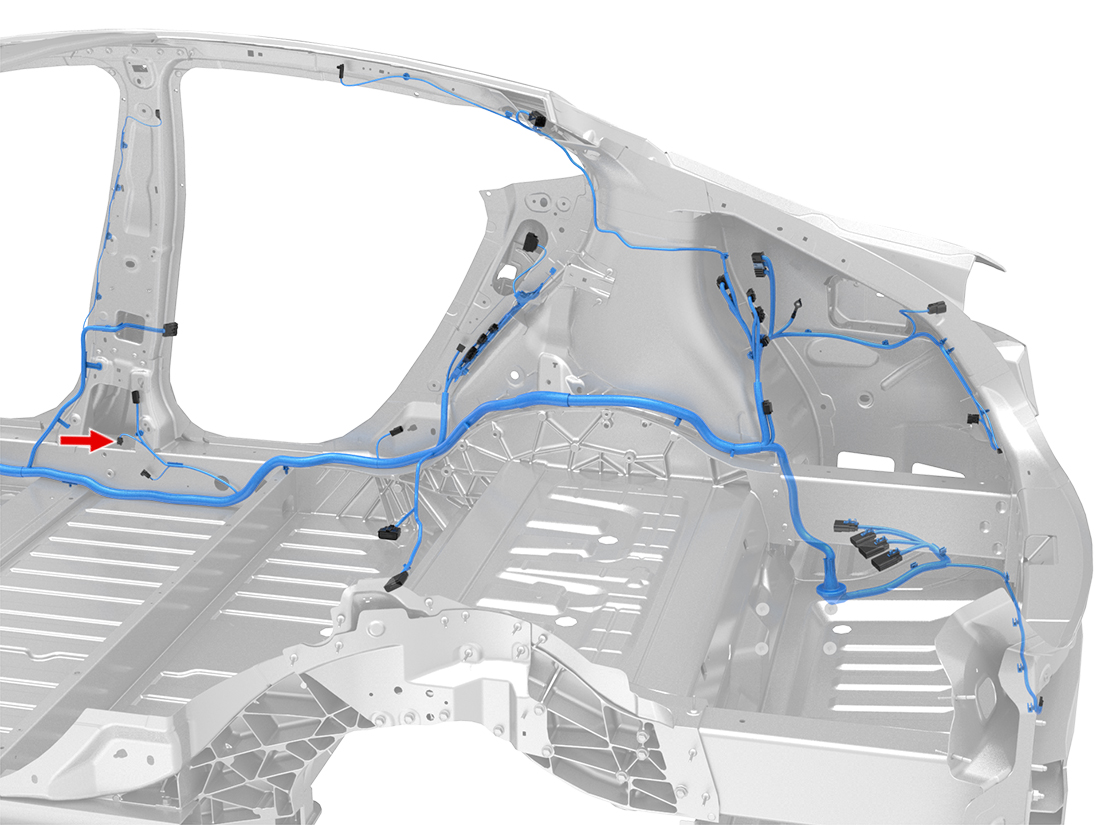

Location:

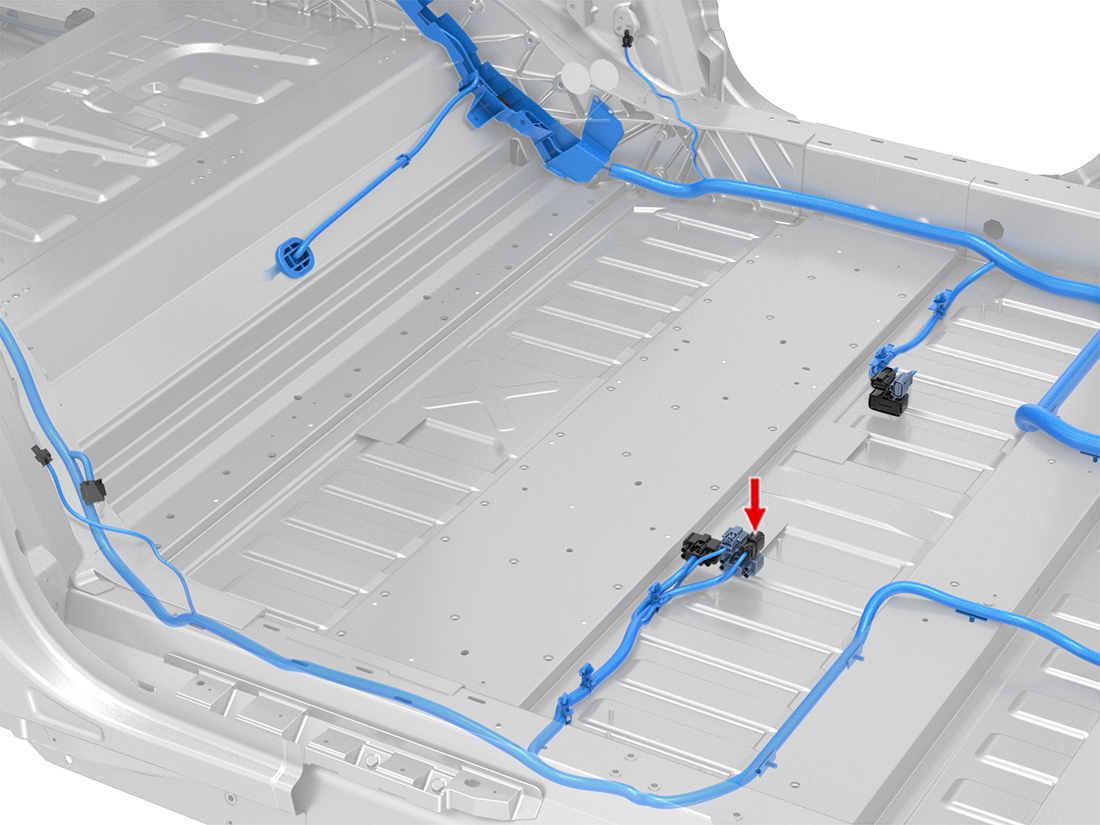

Location:
Connector Detail: AMP 1612121-5
Color: Orange
Serviceability: Connector Pigtail
Connector Detail: MOLEX 33471-0447
Color: GY
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/WH | 0.5 | AU | X988F-2 | - | - | not found | |
| 2 | BK/GY | 0.5 | AU | X988F-16 | - | - | not found |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | OG | 0.35 | AU | X201-49 | MOLEX 33001-3005 | TESLA MAT-120-240 | 1099513-00-A | 1116485-00-A |
| 2 | GY | 0.35 | AU | X201-50 | MOLEX 33001-3005 | TESLA MAT-120-240 | 1099513-00-A | 1116485-00-A |
| 3 | BK | 0.5 | SN | GND_C2-1 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | OG | 0.35 | AU | X201-49 | MOLEX 33001-3005 | TESLA MAT-120-240 | 1099513-00-A | 1116485-00-A |
| 2 | GY | 0.35 | AU | X201-50 | MOLEX 33001-3005 | TESLA MAT-120-240 | 1099513-00-A | 1116485-00-A |
| 3 | BK | 0.5 | SN | GND_C2-1 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/WH | 0.5 | AU | X988F-2 | - | - | not found | |
| 2 | BK/GY | 0.5 | AU | X988F-16 | - | - | not found |
