X221 - s-rhd-sop10

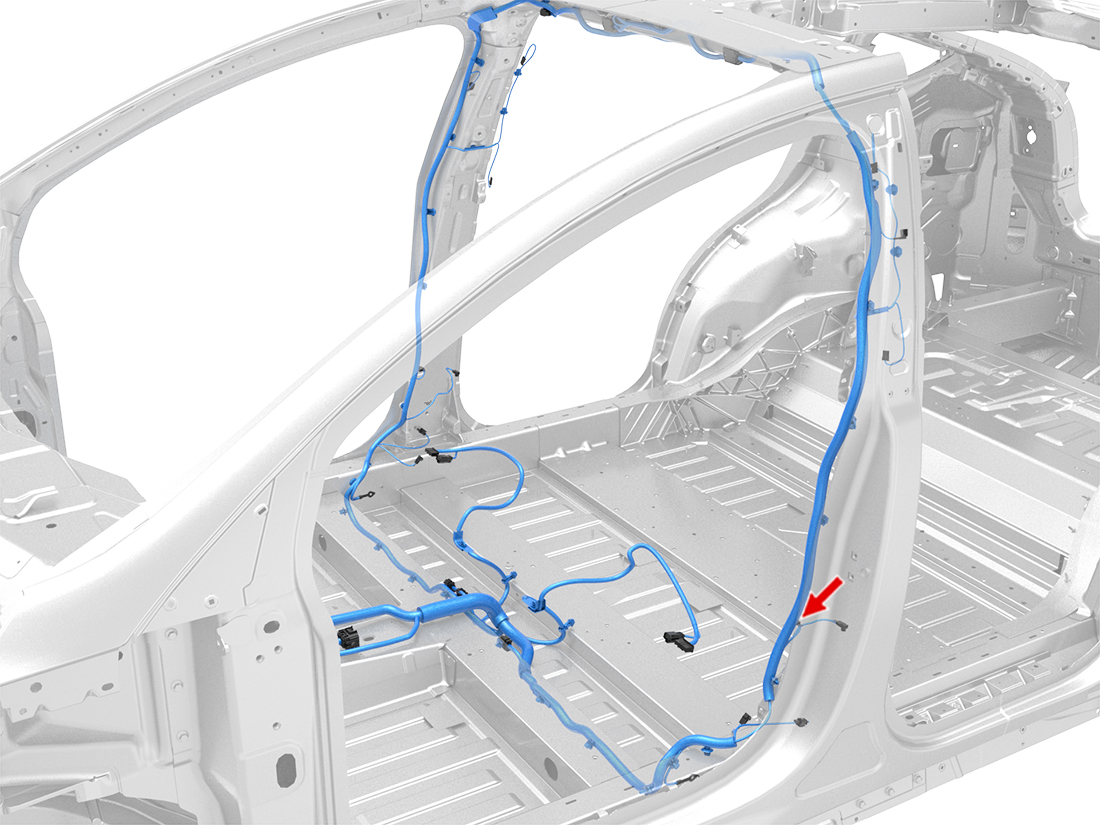

Location:

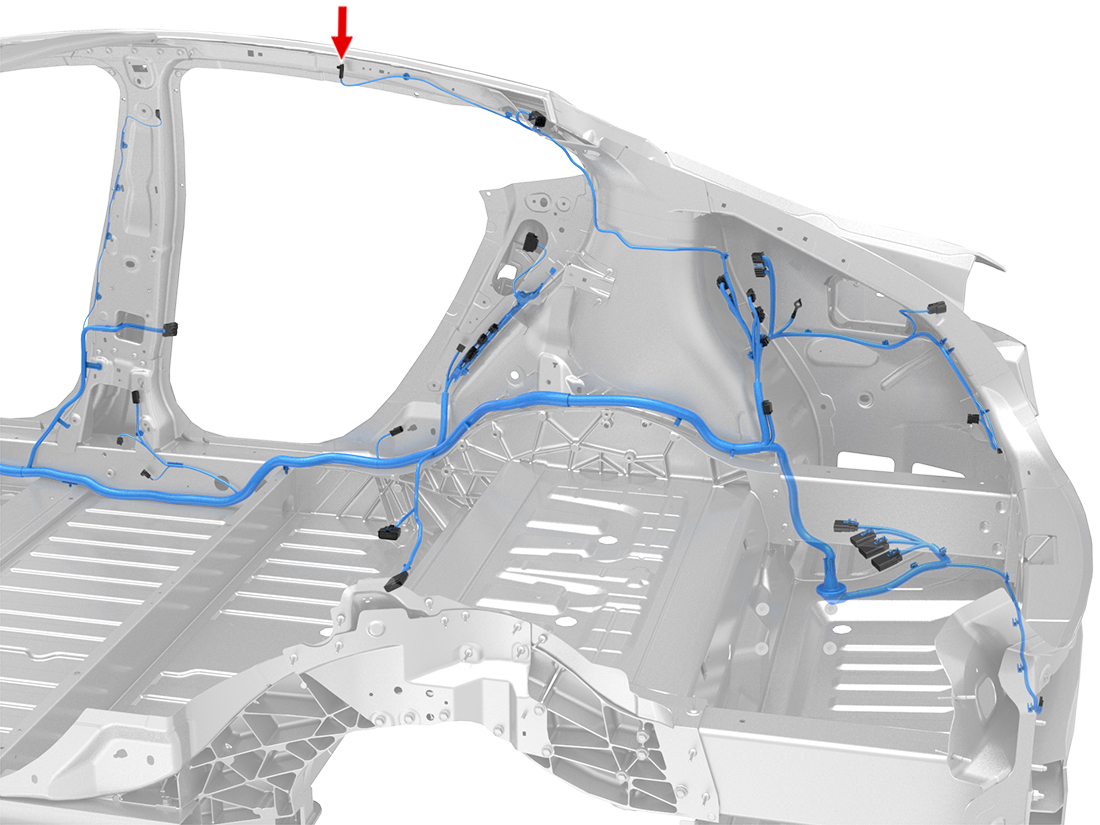

Location:
Connector Detail: DELPHI 33510817
Color: YE
Serviceability: Connector Pigtail
Connector Detail: FCI F456110C
Color: BK
Serviceability: Connector Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | WH/BK | 0.5 | AU | X988F-6 | - | - | 1057974-90-B | |
| 2 | BU | 0.5 | AU | X988F-7 | - | - | 1057974-90-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | OG | 0.35 | AU | X201-8 | - | - | 1057974-92-B | |
| 2 | BN | 0.35 | AU | X201-7 | - | - | 1057974-92-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | OG | 0.35 | AU | X201-8 | - | - | 1057974-92-B | |
| 2 | BN | 0.35 | AU | X201-7 | - | - | 1057974-92-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | WH/BK | 0.5 | AU | X988F-6 | - | - | 1057974-90-B | |
| 2 | BU | 0.5 | AU | X988F-7 | - | - | 1057974-90-B |
