X222 - s-rhd-sop10

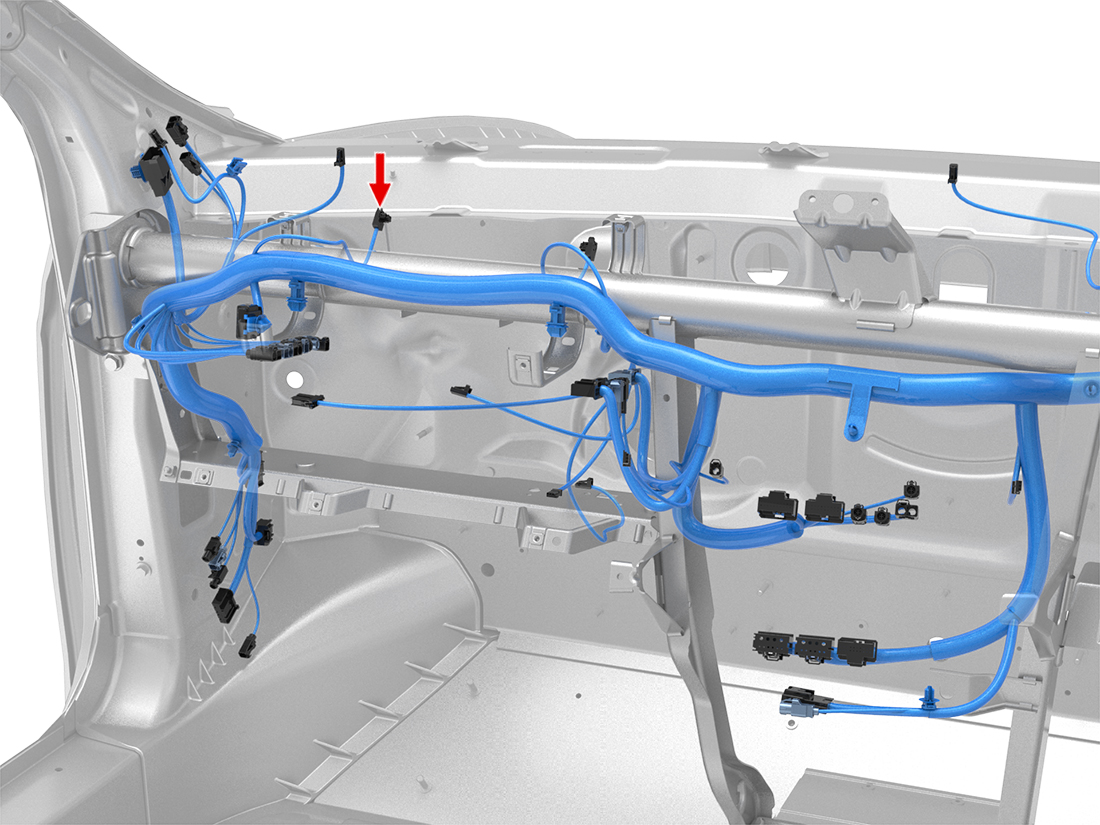

Location:

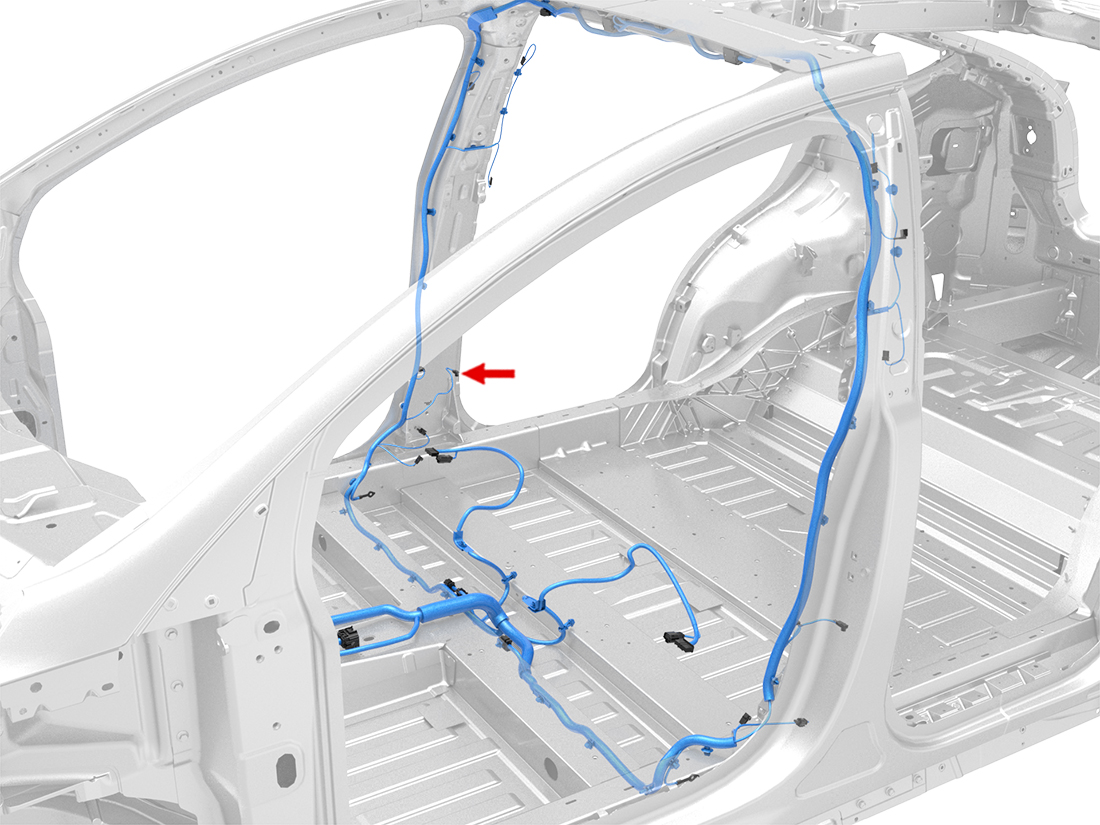

Location:

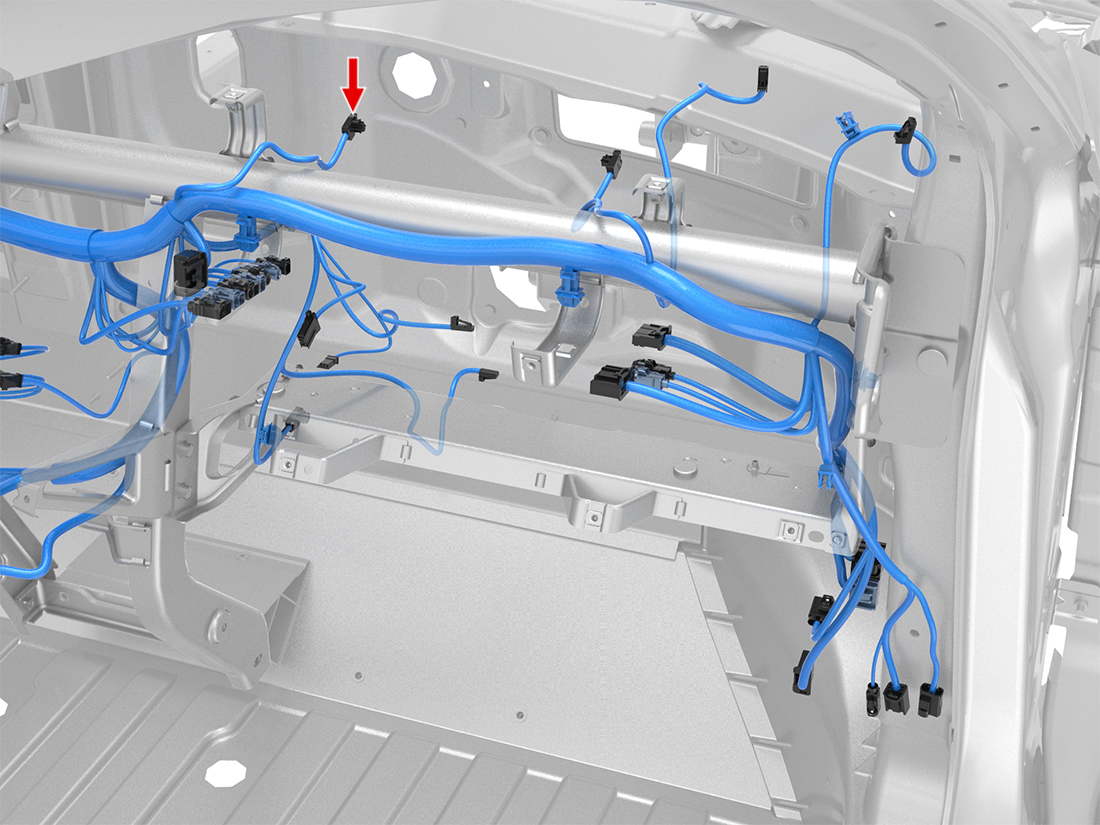

Location:
Connector Detail: AMP 1612121-4
Color: Yellow
Serviceability: Connector Pigtail
Connector Detail: DELPHI 33510817
Color: YE
Serviceability: Connector Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/GY | 0.5 | AU | X949F-18 | - | - | not found | |
| 2 | BK/GY | 0.5 | AU | X949F-19 | - | - | not found |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | OG | 0.35 | AU | X201-5 | - | - | 1057974-92-B | |
| 2 | VT | 0.35 | AU | X201-6 | - | - | 1057974-92-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | OG | 0.35 | AU | X201-5 | - | - | 1057974-92-B | |
| 2 | VT | 0.35 | AU | X201-6 | - | - | 1057974-92-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/GY | 0.5 | AU | X949F-18 | - | - | not found | |
| 2 | BK/GY | 0.5 | AU | X949F-19 | - | - | not found |
