X223 - s-rhd-sop10

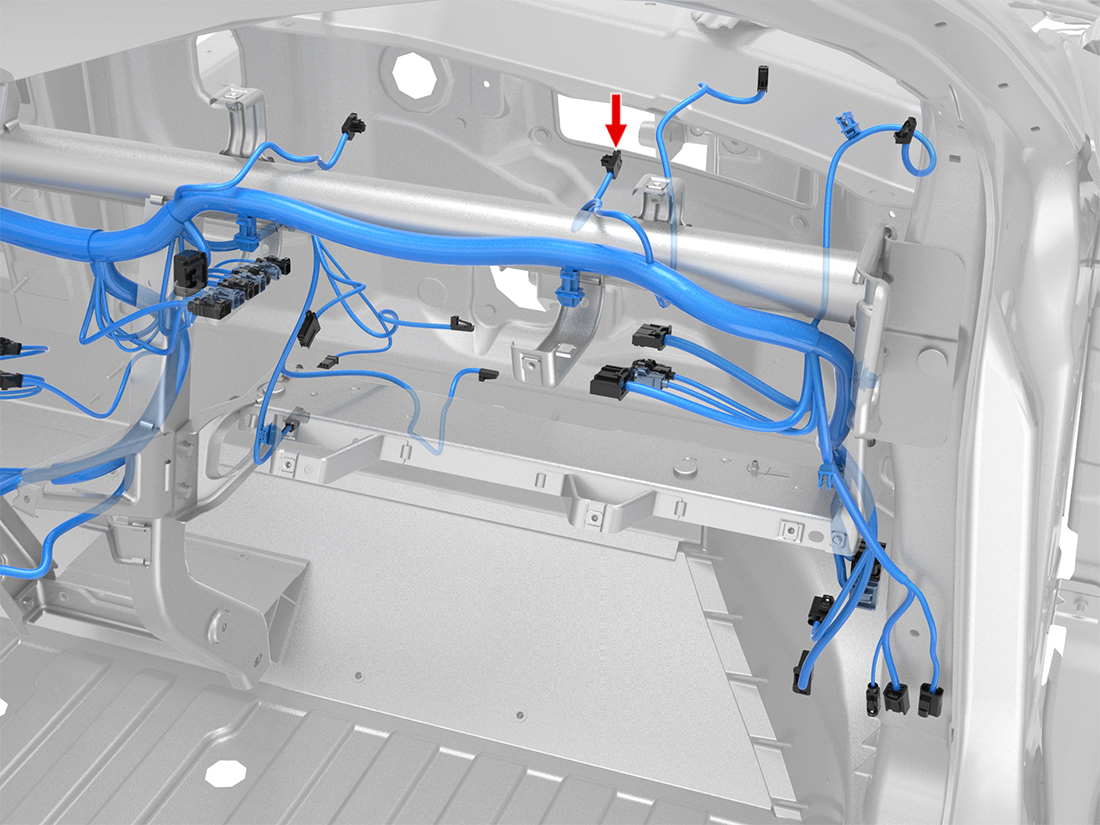

Location:
Location:
Connector Detail: AMP 1612121-5
Color: Orange
Serviceability: Connector Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/BK | 0.5 | AU | X949F-12 | - | - | not found | |
| 2 | OG/BK | 0.5 | AU | X949F-13 | - | - | not found |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/BK | 0.5 | AU | X949F-12 | - | - | not found | |
| 2 | OG/BK | 0.5 | AU | X949F-13 | - | - | not found |
