X225 - s-rhd-sop10

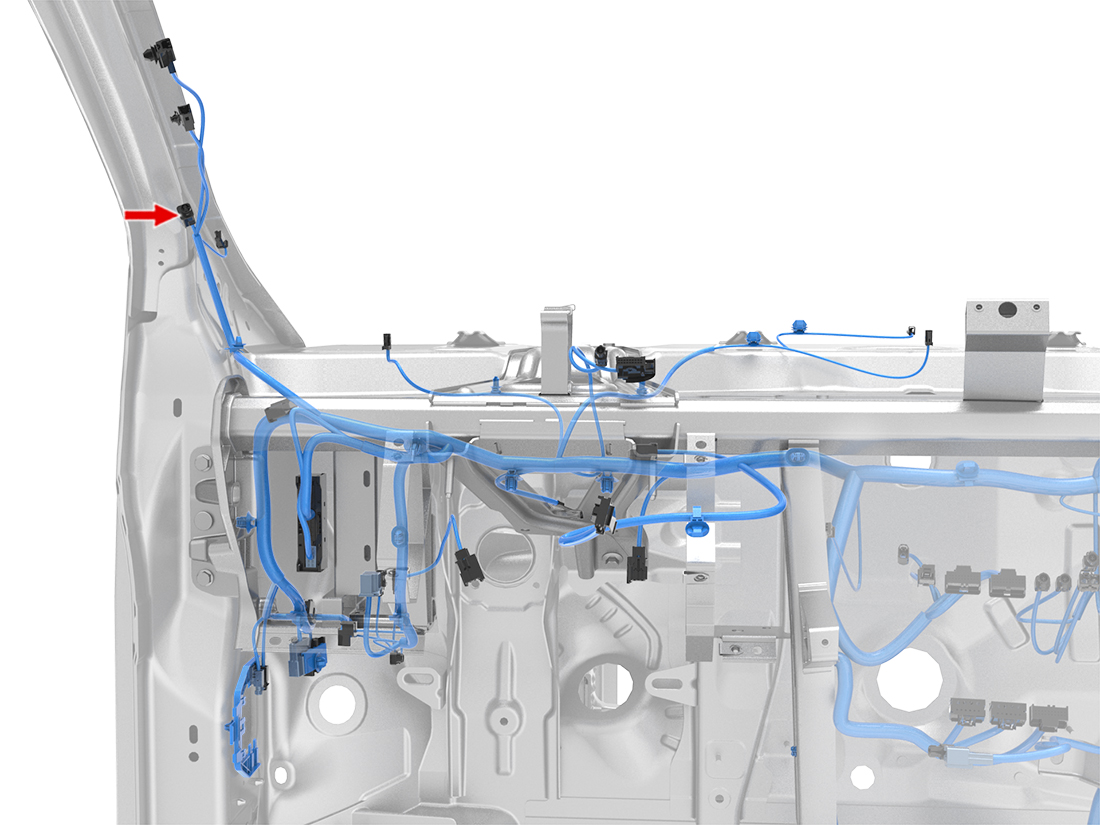

Location:
Connector Detail: Delphi 33511962
Color: BK
Serviceability: Connector Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | OG | 0.35 | AU | X200-10 | - | - | 1057973-90-B | |
| 2 | RD | 0.35 | AU | X200-9 | - | - | 1057973-90-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | OG | 0.35 | AU | X200-10 | - | - | 1057973-90-B | |
| 2 | RD | 0.35 | AU | X200-9 | - | - | 1057973-90-B |
