X230 - s-rhd-sop10

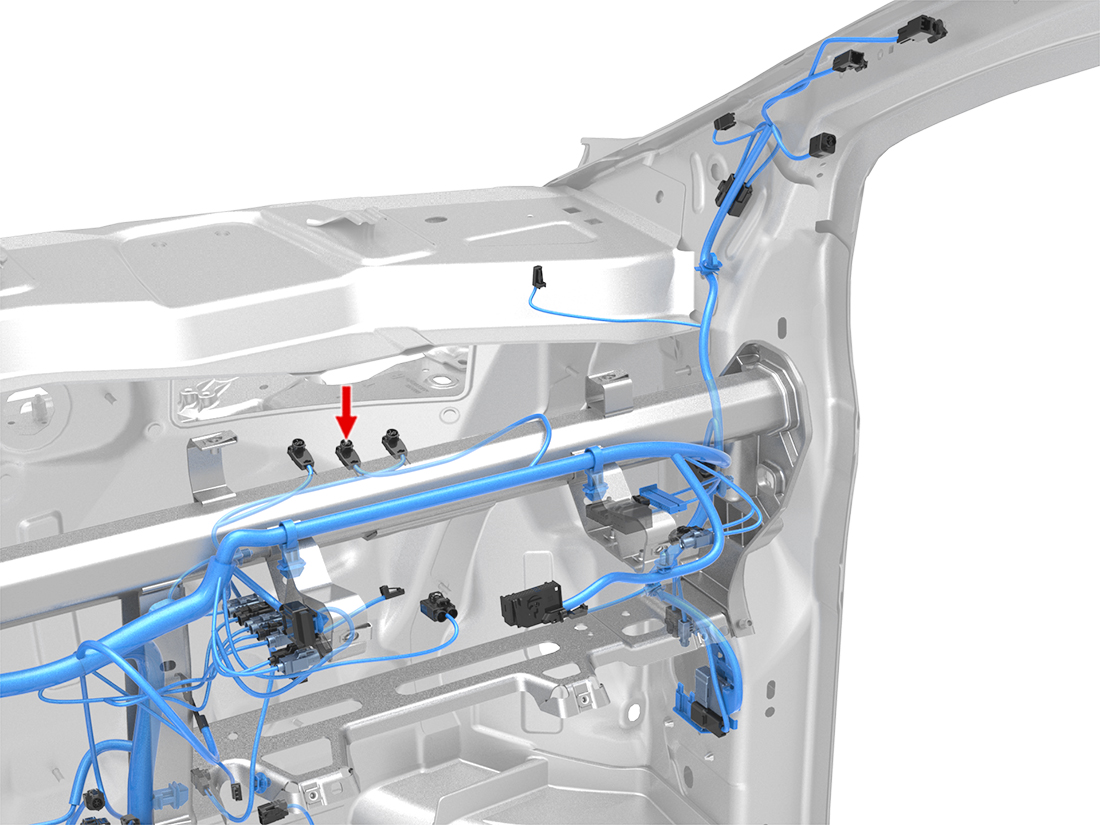

Location:

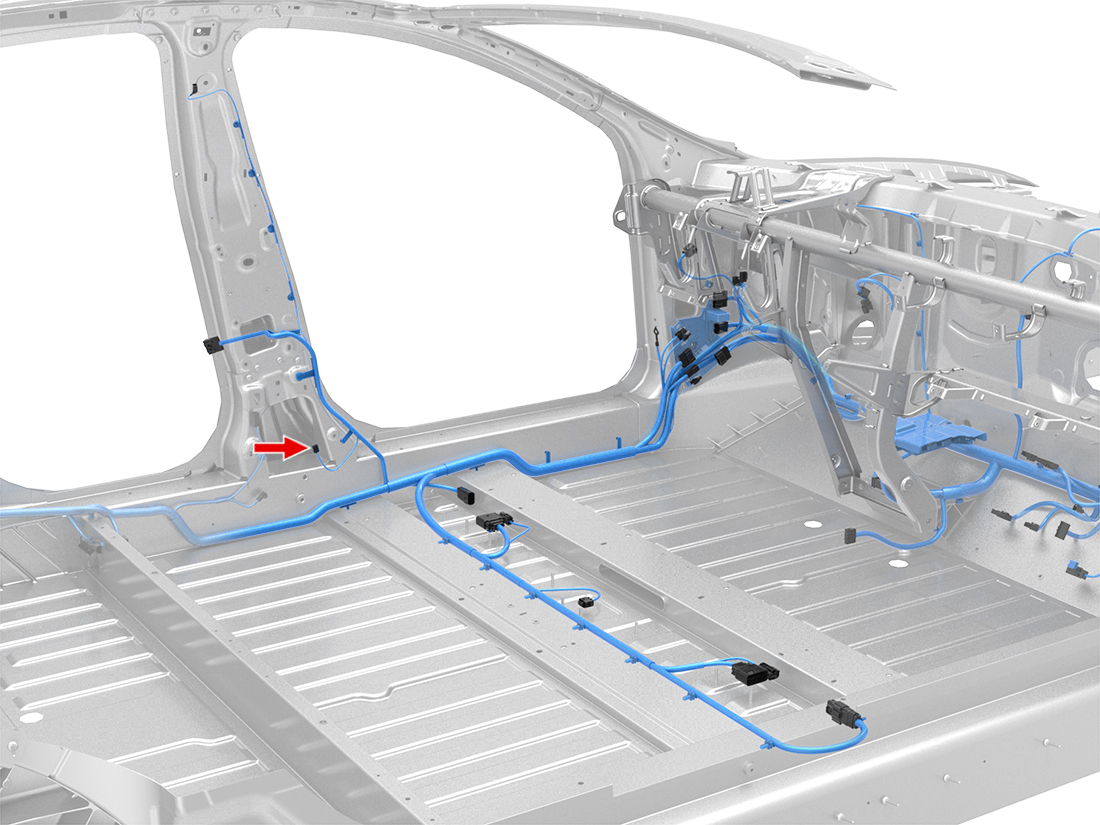

Location:
Connector Detail: AMP 1612121-5
Color: Orange
Serviceability: Connector Pigtail
Connector Detail: Delphi 33510817
Color: YE
Serviceability: Connector Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/GN | 0.5 | AU | X201-3 | - | - | not found | |
| 2 | BK/VT | 0.5 | AU | X201-4 | - | - | not found |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | OG | 0.35 | AU | X200-22 | - | - | 1057974-92-B | |
| 2 | BU | 0.35 | AU | X200-21 | - | - | 1057974-92-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/GN | 0.5 | AU | X201-13 | - | - | not found | |
| 2 | BK/VT | 0.5 | AU | X201-14 | - | - | not found |
