X231 - s-rhd-sop10

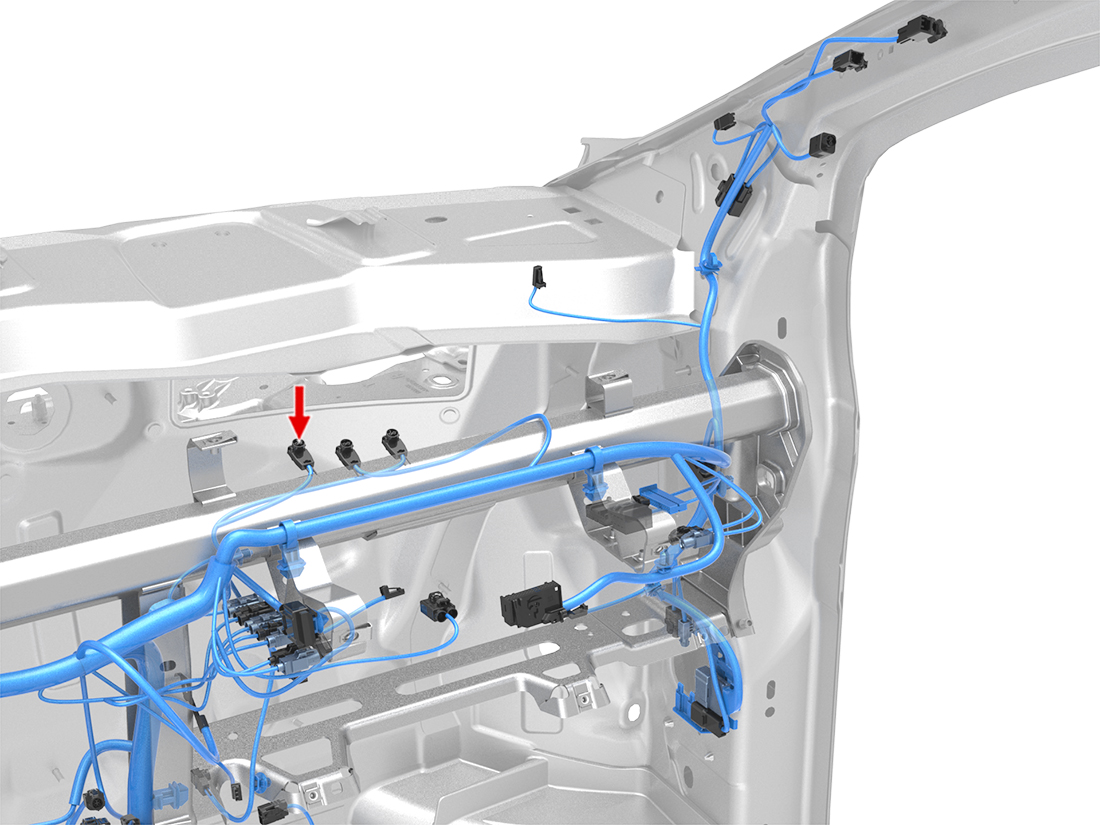

Location:

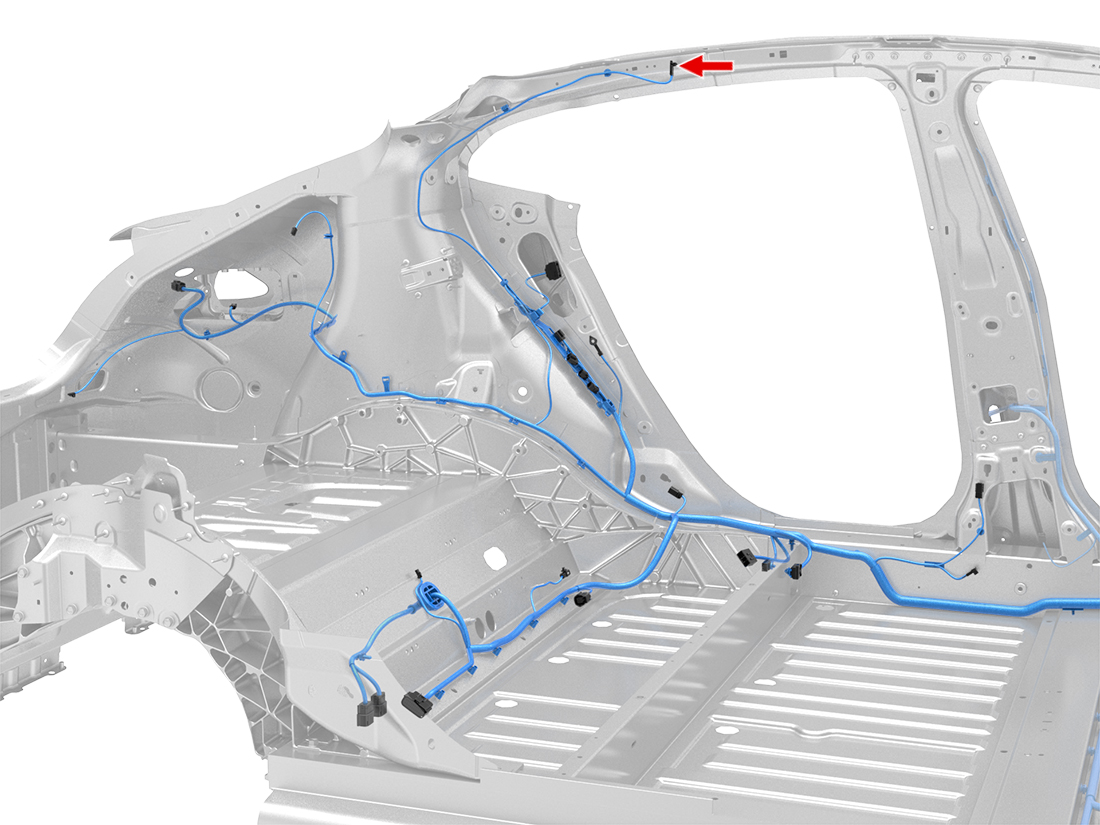

Location:
Connector Detail: Delphi 13925537
Color: BK
Serviceability: Connector Pigtail
Connector Detail: Delphi 33510815
Color: BK
Serviceability: Connector Pigtail
Connector Detail: Delphi 33512202
Color: BK
Serviceability: Connector Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GN/WH | 0.5 | AU | X201-23 | - | - | not found | |
| 2 | BN | 0.5 | AU | X201-24 | - | - | not found |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | OG | 0.35 | AU | X200-5 | - | - | 1057974-90-B | |
| 2 | RD | 0.35 | AU | X200-6 | - | - | 1057974-90-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GN/WH | 0.5 | AU | X201-23 | - | - | not found | |
| 2 | BN | 0.5 | AU | X201-24 | - | - | not found |
