X232 - s-rhd-sop10

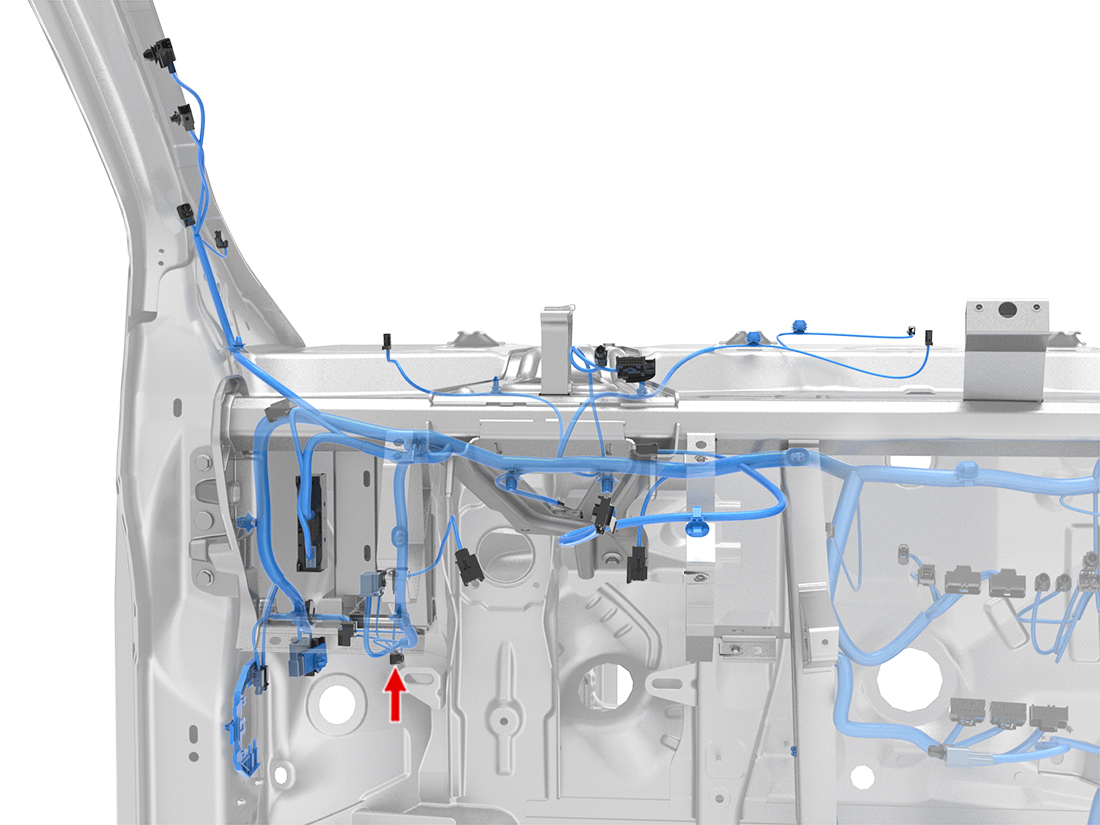

Location:

Location:

Connector Detail: AMP 1376030-1
Color: Yellow
Serviceability: Connector Pigtail
Connector Detail: Delphi 13925537
Color: BK
Serviceability: Connector Pigtail
Connector Detail: Delphi 33510817
Color: YE
Serviceability: Connector Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/GY | 0.5 | AU | X201-5 | - | - | not found | |
| 2 | RD | 0.5 | AU | X201-6 | - | - | not found |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | OG | 0.35 | AU | X200-11 | - | - | 1057974-92-B | |
| 2 | BK | 0.35 | AU | X200-12 | - | - | 1057974-92-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/GY | 0.5 | AU | X201-15 | - | - | not found | |
| 2 | RD | 0.5 | AU | X201-16 | - | - | not found |
