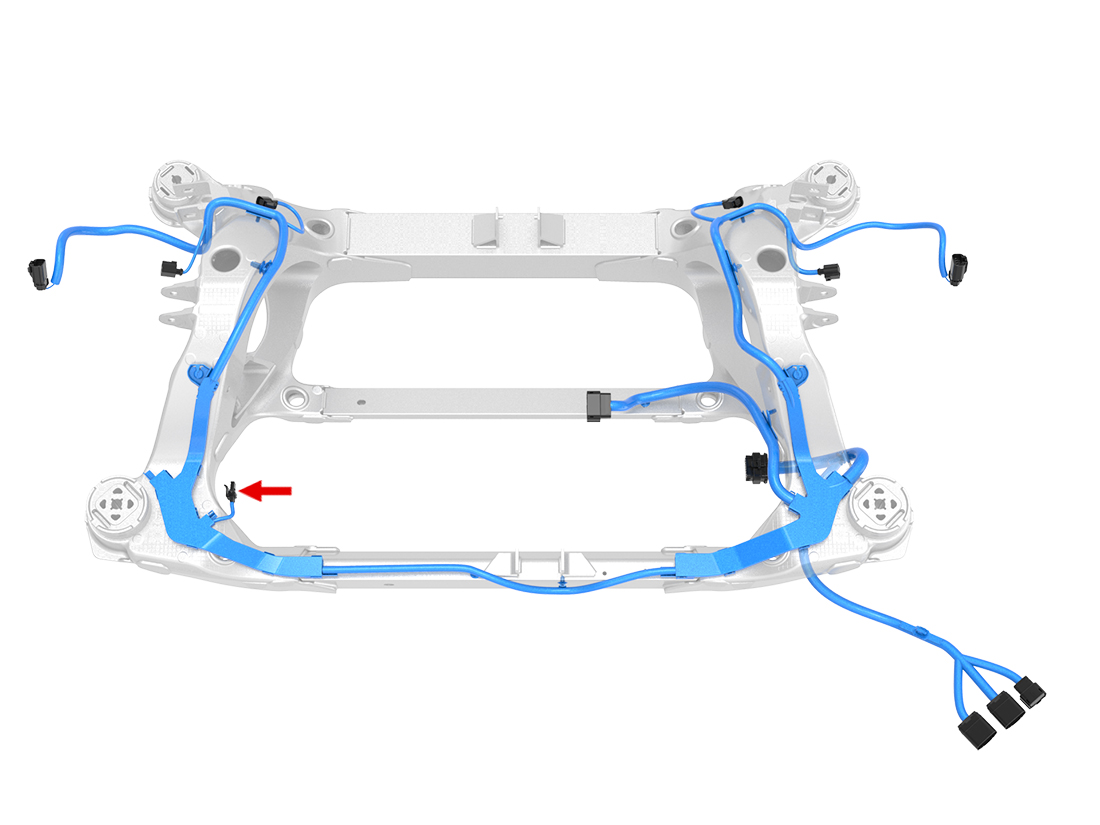

Location:
Connector Detail: AMP 444046-4
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BK | 0.75 | SN | X250-17 | AMP 282438-1 | AMP 963530-1 | 1102093-00-B | |
| 2 | GN | 0.75 | SN | X250-16 | AMP 282438-1 | AMP 963530-1 | 1102093-00-B | |
| 3 | RD/GY | 0.75 | SN | X250-10 | AMP 282438-1 | AMP 963530-1 | 1102093-00-B | |
| 4 | RD/VT | 0.75 | SN | X250-9 | AMP 282438-1 | AMP 963530-1 | 1102093-00-B | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BK | 0.75 | SN | X250-17 | AMP 282438-1 | AMP 963530-1 | 1102093-00-B | |
| 2 | GN | 0.75 | SN | X250-16 | AMP 282438-1 | AMP 963530-1 | 1102093-00-B | |
| 3 | RD/GY | 0.75 | SN | X250-10 | AMP 282438-1 | AMP 963530-1 | 1102093-00-B | |
| 4 | RD/VT | 0.75 | SN | X250-9 | AMP 282438-1 | AMP 963530-1 | 1102093-00-B | |
