X259 - s-rhd-sop10

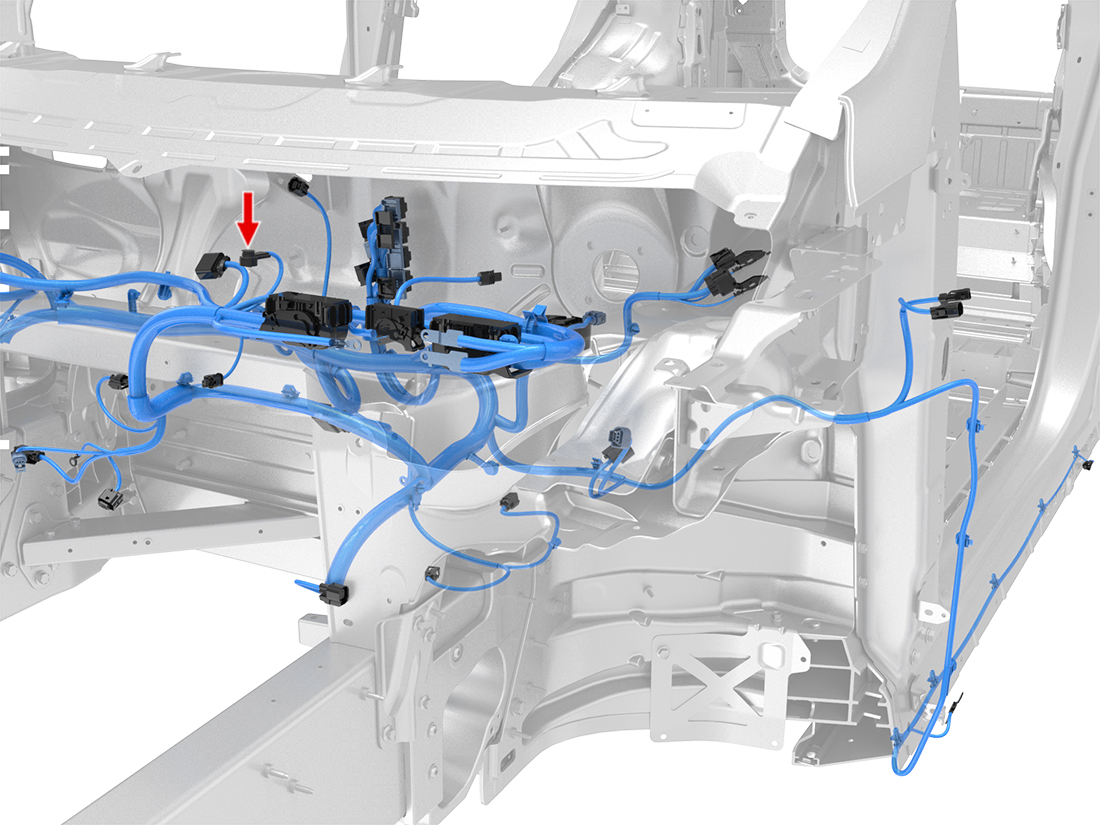

Location:

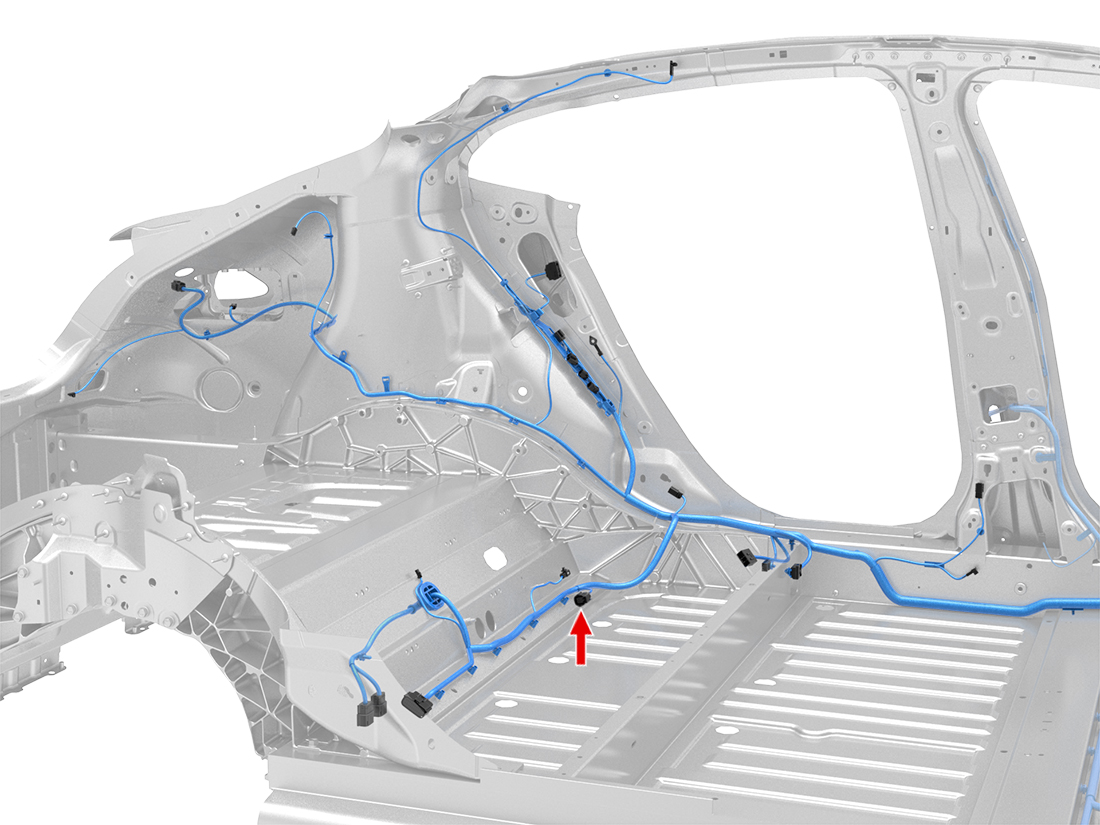

Location:
Connector Detail: Delphi 33401365
Color: White
Serviceability: Connector Pigtail
Connector Detail: Sumitomo 6189-7757
Color: Gray
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/WH | 1.5 | SN | X954M-26 | Sumitomo 8100-4174 | Sumitomo 7165-0472 | 1099532-00-B | |
| 2 | BK | 1 | SN | G720-1 | Sumitomo 8240-0264 | Sumitomo 7165-0473 | 1099532-00-B | |
| 3 | RD/GY | 0.35 | SN | X954M-8 | Sumitomo 8240-0263 | Sumitomo 7165-0474 | 1099542-00-B | |
| 4 | WH | 0.35 | SN | X954M-16 | Sumitomo 8240-0263 | Sumitomo 7165-0474 | 1099542-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | VT | 0.5 | AU | X915M-9 | - | - | 1061055-90-A | |
| 2 | GN | 0.5 | AU | X915M-17 | - | - | 1061055-90-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | VT | 0.5 | AU | X915M-9 | - | - | 1061055-90-A | |
| 2 | GN | 0.5 | AU | X915M-17 | - | - | 1061055-90-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/WH | 1.5 | SN | X954M-26 | Sumitomo 8100-4174 | Sumitomo 7165-0472 | 1099532-00-B | |
| 2 | BK | 1 | SN | G720-1 | Sumitomo 8240-0264 | Sumitomo 7165-0473 | 1099532-00-B | |
| 3 | RD/GY | 0.35 | SN | X954M-8 | Sumitomo 8240-0263 | Sumitomo 7165-0474 | 1099542-00-B | |
| 4 | WH | 0.35 | SN | X954M-16 | Sumitomo 8240-0263 | Sumitomo 7165-0474 | 1099542-00-B |
