X262 - s-rhd-sop10

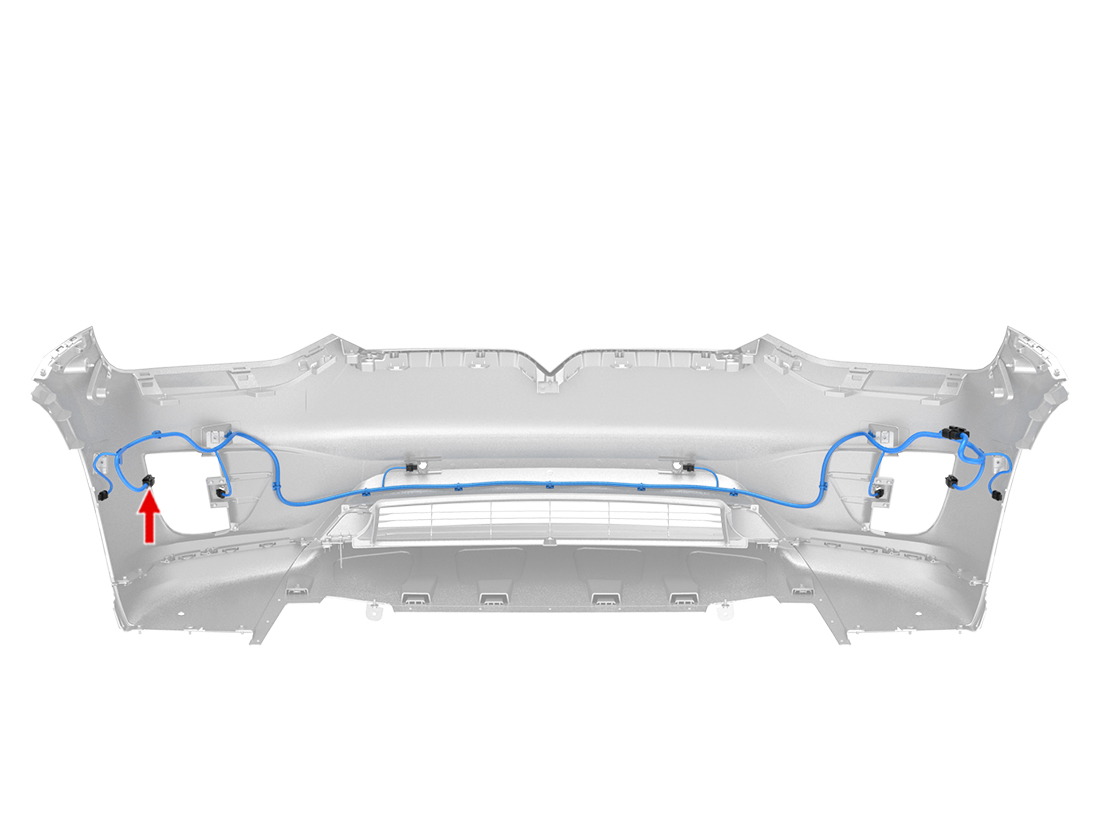

Location:

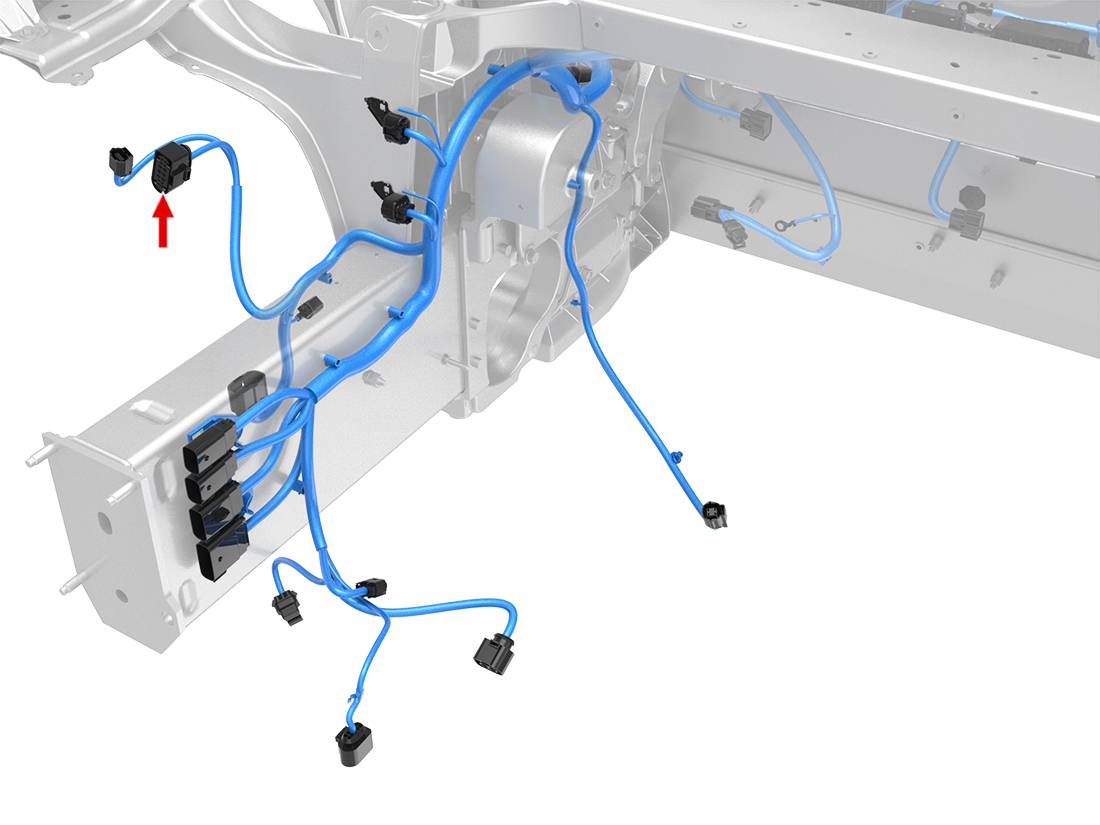

Location:
Connector Detail: AMP 1719105-1
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: Molex 33472-0601
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/VT | 0.35 | SN | X953F-5 | AMP 969005-2 | AMP 964971-1 | 1099471-00-B | |
| 4 | GN | 0.35 | SN | X020-22 | AMP 969005-2 | AMP 964971-1 | 1099471-00-B | |
| 6 | RD/GY | 1 | SN | X026-4 | AMP 964286-2 | AMP 963294-1 | 1099469-00-B | |
| 7 | VT | 0.35 | SN | X020-8 | AMP 964282-2 | AMP 963294-1 | 1099468-00-C | |
| 8 | BK | 1 | SN | Z93-GDB06-R | AMP 964286-2 | AMP 963294-1 | 1099469-00-B | |
| 9 | BK | 1 | SN | Z93-GDB06-R | AMP 964286-2 | AMP 963294-1 | 1099469-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GN/WH | 0.5 | SN | X901F-13 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 2 | GN | 0.5 | SN | X901F-15 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 3 | BK | 0.5 | SN | Z6-GJRF210-L | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 4 | BU | 0.5 | SN | X901F-20 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 5 | BN | 0.5 | SN | X901F-14 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 6 | BK | 0.5 | SN | Z6-GJRF210-L | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GN/WH | 0.5 | SN | X901F-13 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 2 | GN | 0.5 | SN | X901F-15 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 3 | BK | 0.5 | SN | Z6-GJRF210-L | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 4 | BU | 0.5 | SN | X901F-20 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 5 | BN | 0.5 | SN | X901F-14 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 6 | BK | 0.5 | SN | Z6-GJRF210-L | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/VT | 0.35 | SN | X953F-5 | AMP 969005-2 | AMP 964971-1 | 1099471-00-B | |
| 4 | GN | 0.35 | SN | X020-22 | AMP 969005-2 | AMP 964971-1 | 1099471-00-B | |
| 6 | RD/GY | 1 | SN | X026-4 | AMP 964286-2 | AMP 963294-1 | 1099469-00-B | |
| 7 | VT | 0.35 | SN | X020-8 | AMP 964282-2 | AMP 963294-1 | 1099468-00-C | |
| 8 | BK | 1 | SN | Z93-GDB06-R | AMP 964286-2 | AMP 963294-1 | 1099469-00-B | |
| 9 | BK | 1 | SN | Z93-GDB06-R | AMP 964286-2 | AMP 963294-1 | 1099469-00-B |
