X263 - s-rhd-sop10

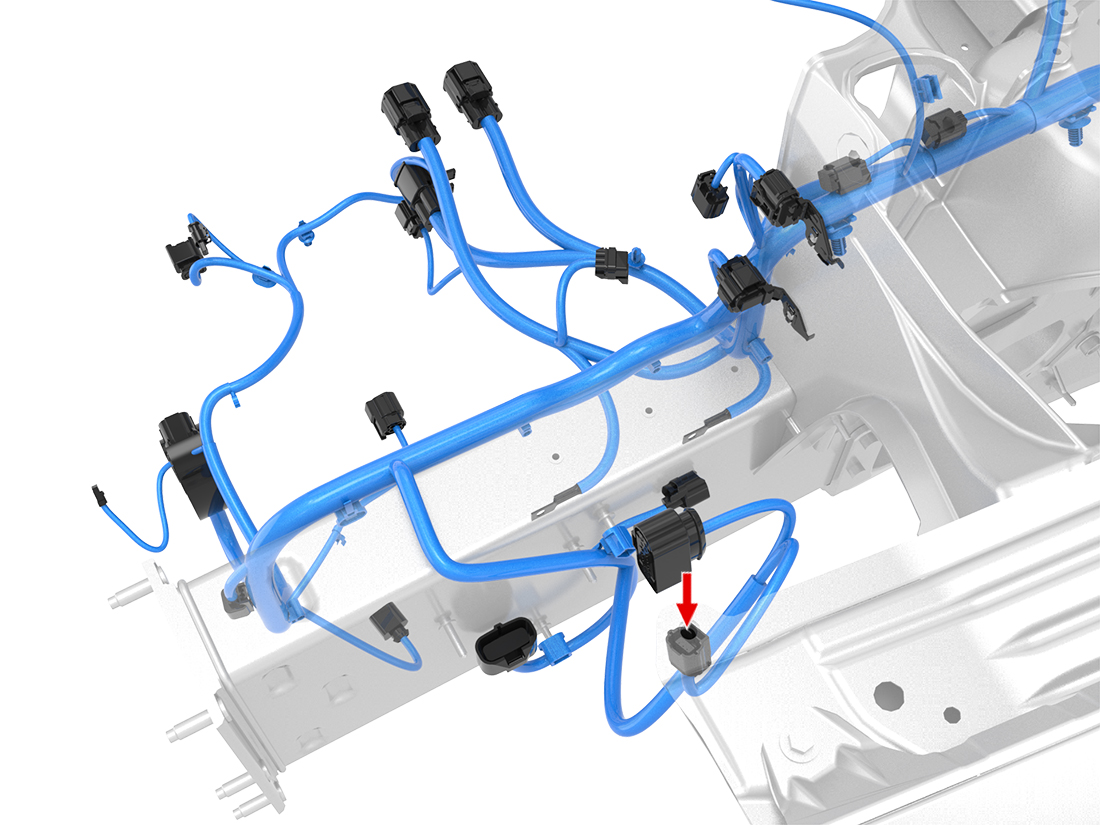

Location:
Location:
Connector Detail: Molex 33472-0601
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: Yazaki 7283-8852-30
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | YE | 0.35 | SN | X267-2 | Yazaki 7116-4415-02 | Yazaki 7158-3166-60 | 1102120-00-B | |
| 2 | OG | 0.35 | SN | X267-4 | Yazaki 7116-4415-02 | Yazaki 7158-3166-60 | 1102120-00-B | |
| 3 | WH | 0.35 | SN | X267-6 | Yazaki 7116-4415-02 | Yazaki 7158-3166-60 | 1102120-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BU/WH | 0.5 | SN | X901F-17 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 2 | BN | 0.5 | SN | X901F-16 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 3 | BK | 0.5 | SN | Z6-GJRF210-R | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 4 | GN | 0.5 | SN | X901F-10 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 5 | VT | 0.5 | SN | X901F-18 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 6 | BK | 0.5 | SN | Z6-GJRF210-R | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BU/WH | 0.5 | SN | X901F-17 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 2 | BN | 0.5 | SN | X901F-16 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 3 | BK | 0.5 | SN | Z6-GJRF210-R | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 4 | GN | 0.5 | SN | X901F-10 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 5 | VT | 0.5 | SN | X901F-18 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 6 | BK | 0.5 | SN | Z6-GJRF210-R | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | YE | 0.35 | SN | X267-2 | Yazaki 7116-4415-02 | Yazaki 7158-3166-60 | 1102120-00-B | |
| 2 | OG | 0.35 | SN | X267-4 | Yazaki 7116-4415-02 | Yazaki 7158-3166-60 | 1102120-00-B | |
| 3 | WH | 0.35 | SN | X267-6 | Yazaki 7116-4415-02 | Yazaki 7158-3166-60 | 1102120-00-B |
