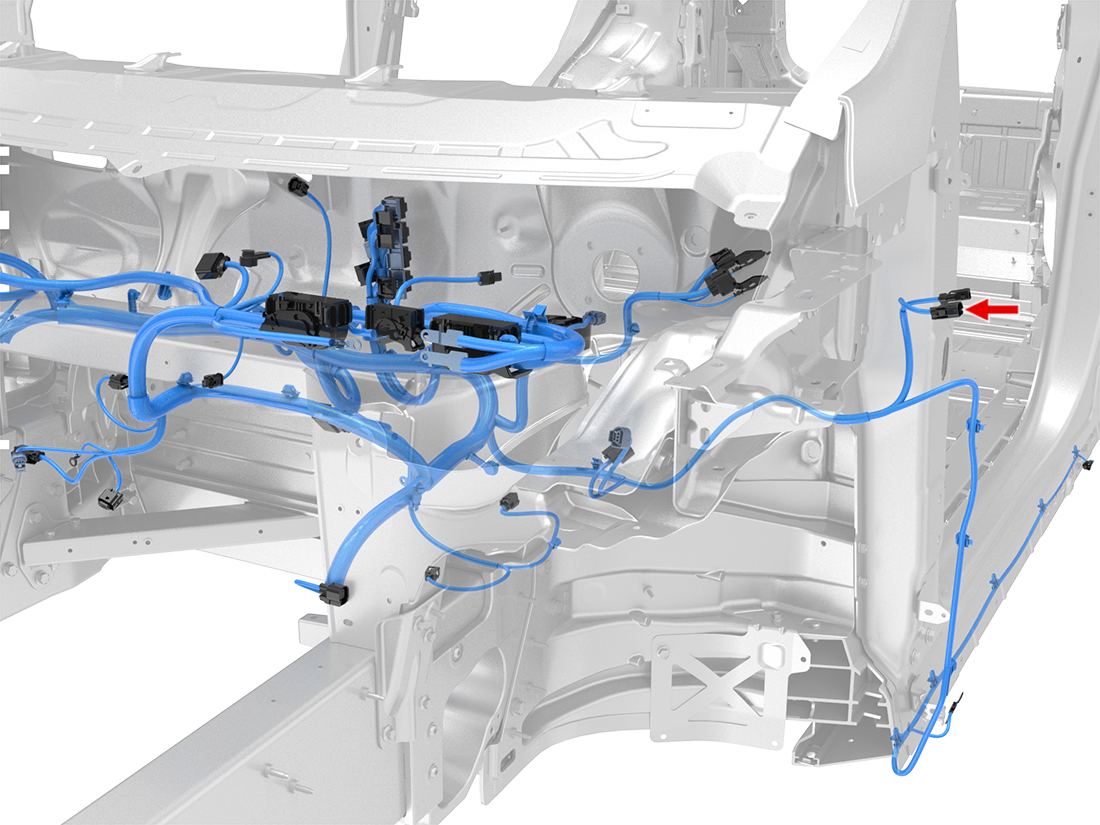

Location:
Connector Detail: Yazaki 7283-4110-40
Color: Gray
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | VT | 0.5 | SN | X051-18 | Yazaki 7116-4102-02 | Yazaki 7158-3030-50 | 1099558-00-B | |
| 2 | BK | 0.5 | SN | GND_FR_LH1-1 | Yazaki 7116-4102-02 | Yazaki 7158-3030-50 | 1099558-00-B | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | VT | 0.5 | SN | X051-18 | Yazaki 7116-4102-02 | Yazaki 7158-3030-50 | 1099558-00-B | |
| 2 | BK | 0.5 | SN | GND_FR_LH1-1 | Yazaki 7116-4102-02 | Yazaki 7158-3030-50 | 1099558-00-B | |
