X269 - s-rhd-sop10

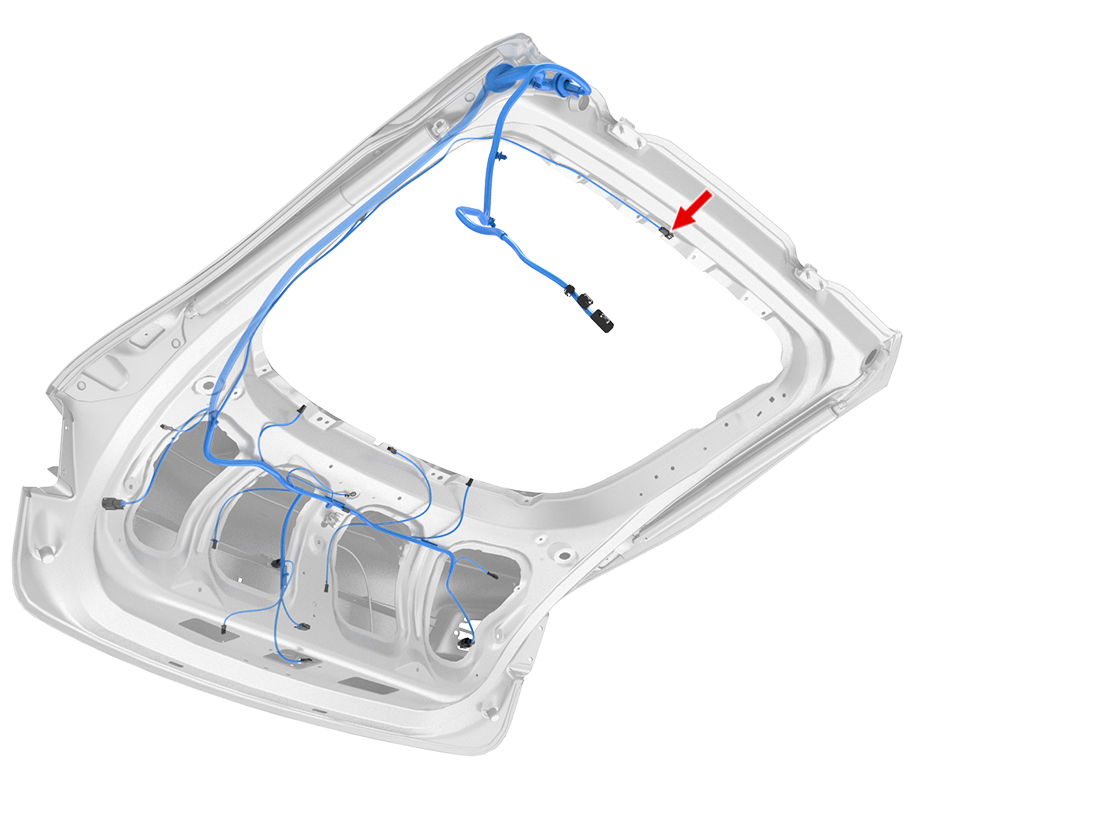

Location:
Location:
Connector Detail: Delphi 12059252
Color: Red
Serviceability: Terminal Pigtail
Connector Detail: Yazaki 7283-4110-40
Color: Gray
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| A | WH/BK | 0.5 | SN | X921F-11 | Delphi 12059894 | 1099473-00-A | ||
| B | BK | 0.5 | SN | Z46-GDL01-R | Delphi 12059894 | 1099473-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | VT/WH | 0.5 | SN | X051-1 | Yazaki 7116-4102-02 | Yazaki 7158-3030-50 | 1099558-00-B | |
| 2 | BK | 0.5 | SN | GND_FR_RH2-1 | Yazaki 7116-4102-02 | Yazaki 7158-3030-50 | 1099558-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | VT/WH | 0.5 | SN | X051-1 | Yazaki 7116-4102-02 | Yazaki 7158-3030-50 | 1099558-00-B | |
| 2 | BK | 0.5 | SN | GND_FR_RH2-1 | Yazaki 7116-4102-02 | Yazaki 7158-3030-50 | 1099558-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| A | WH/BK | 0.5 | SN | X921F-11 | Delphi 12059894 | 1099473-00-A | ||
| B | BK | 0.5 | SN | Z46-GDL01-R | Delphi 12059894 | 1099473-00-A |
