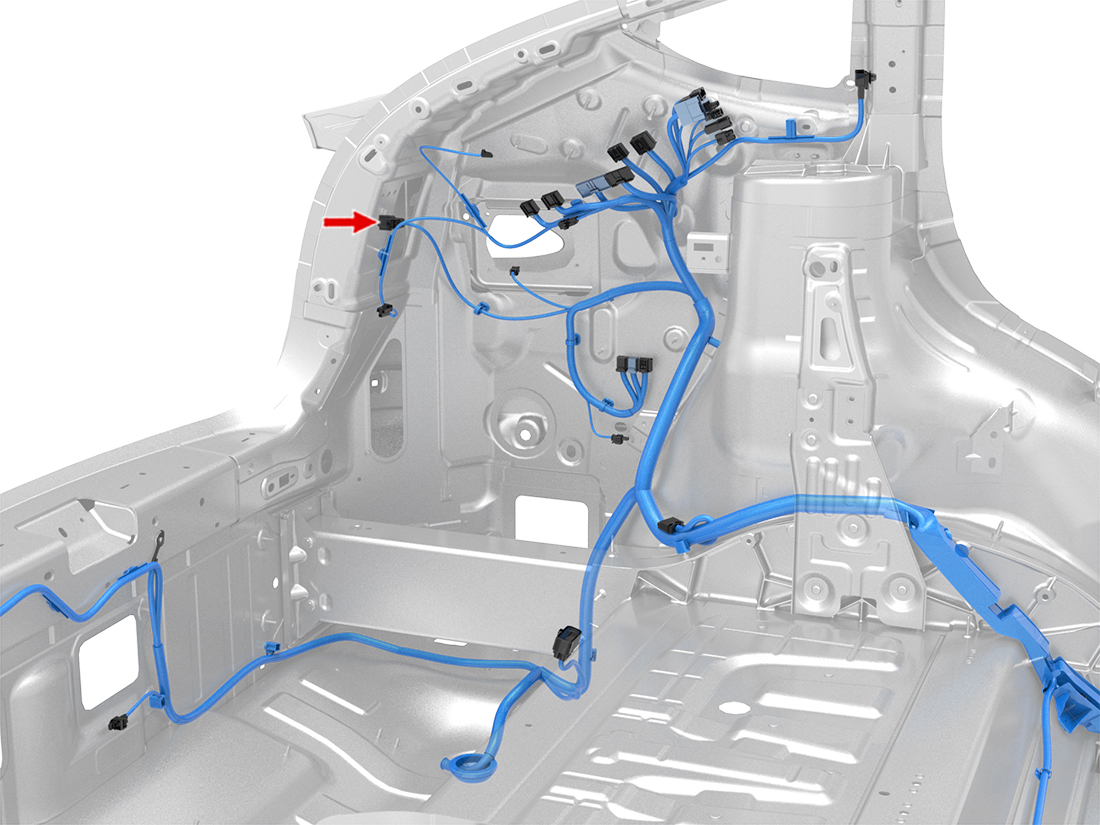

Location:

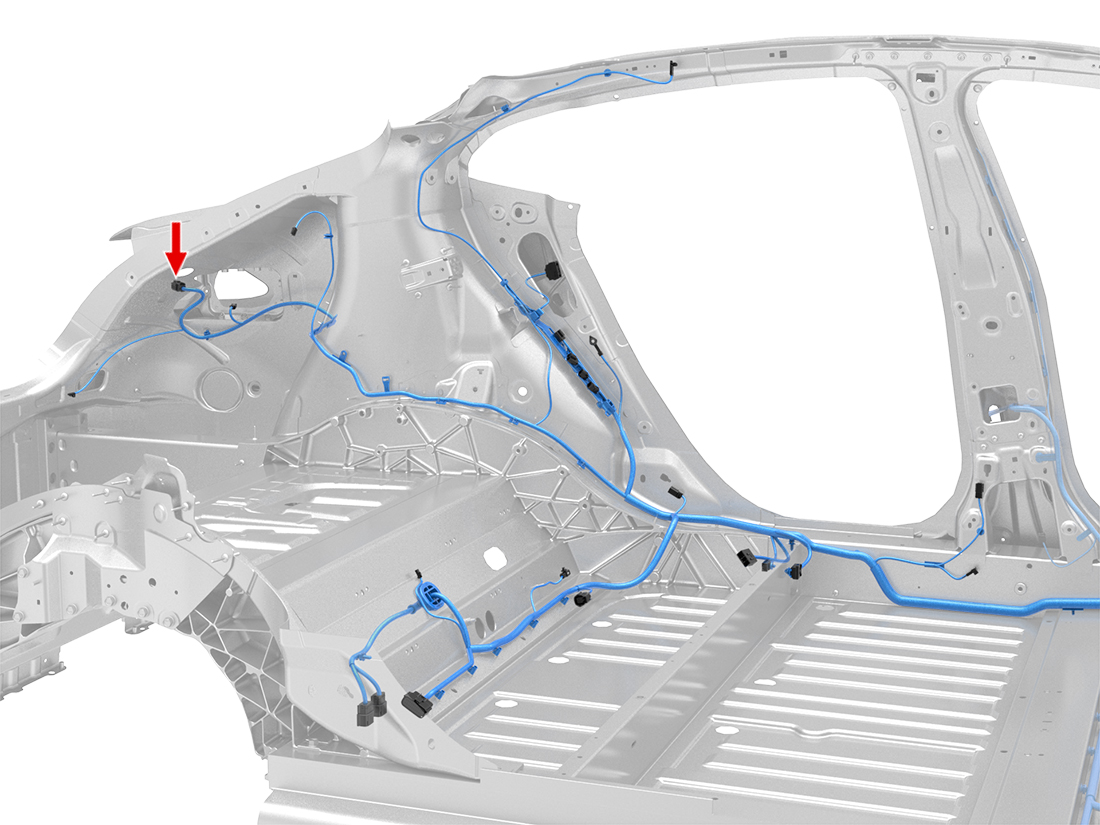

Location:
Connector Detail: MOLEX 33472-0601
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | WH/RD | 0.35 | SN | X955M-3 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 2 | RD/GY | 0.35 | SN | Z47-EXL24-L | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 3 | RD/BU | 0.35 | SN | X955M-14 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 4 | WH | 0.35 | SN | X022-14 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 5 | BK | 0.75 | SN | G720-1 | Molex 33012-3002 | Tesla MAT-120-240 | 1099517-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 2 | GY | 0.5 | SN | X070-11 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 3 | VT | 0.5 | SN | X070-8 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 4 | BN | 0.5 | SN | X070-14 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 5 | GN | 0.5 | SN | X070-9 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 6 | BK | 0.5 | SN | GND_LR-1 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 2 | GY | 0.5 | SN | X070-11 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 3 | VT | 0.5 | SN | X070-8 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 4 | BN | 0.5 | SN | X070-14 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 5 | GN | 0.5 | SN | X070-9 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 6 | BK | 0.5 | SN | GND_LR-1 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | WH/RD | 0.35 | SN | X955M-3 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 2 | RD/GY | 0.35 | SN | Z47-EXL24-R | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 3 | RD/BU | 0.35 | SN | X955M-14 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 4 | WH | 0.35 | SN | X022-14 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 5 | BK | 0.75 | SN | G720-1 | Molex 33012-3002 | Tesla MAT-120-240 | 1099517-00-A | 1116485-00-A |
