X271 - s-rhd-sop10

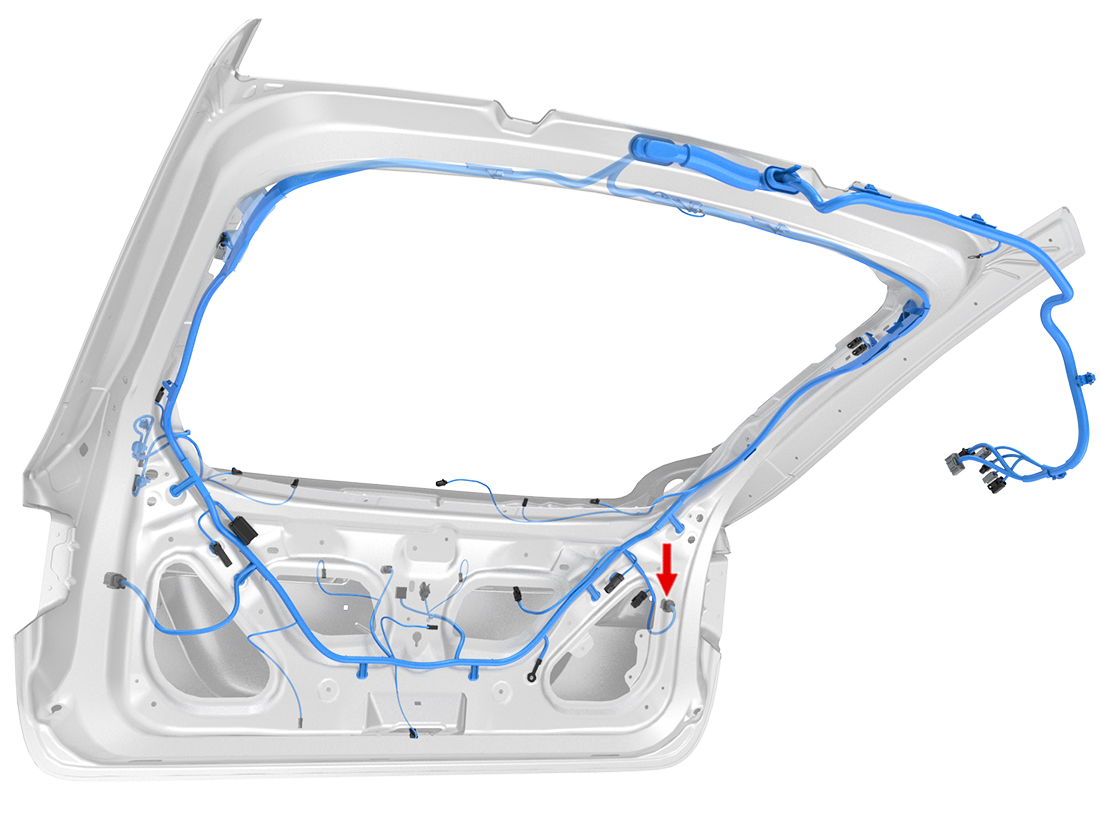

Location:
Location:
Connector Detail: Molex 33472-0601
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: Molex 33472-4001
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/GY | 0.5 | SN | X921F-5 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 3 | RD/BK | 0.5 | SN | X921F-6 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 4 | BK | 0.5 | SN | Z46-GDL01-R | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 2 | VT | 0.5 | SN | X955F-5 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 3 | RD | 0.5 | SN | X955F-4 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 4 | WH | 0.5 | SN | X955F-3 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 6 | BK | 0.5 | SN | GND_LG-1 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 2 | VT | 0.5 | SN | X955F-5 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 3 | RD | 0.5 | SN | X955F-4 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 4 | WH | 0.5 | SN | X955F-3 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 6 | BK | 0.5 | SN | GND_LG-1 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/GY | 0.5 | SN | X921F-5 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 3 | RD/BK | 0.5 | SN | X921F-6 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 4 | BK | 0.5 | SN | Z46-GDL01-R | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
