X274 - s-rhd-sop10

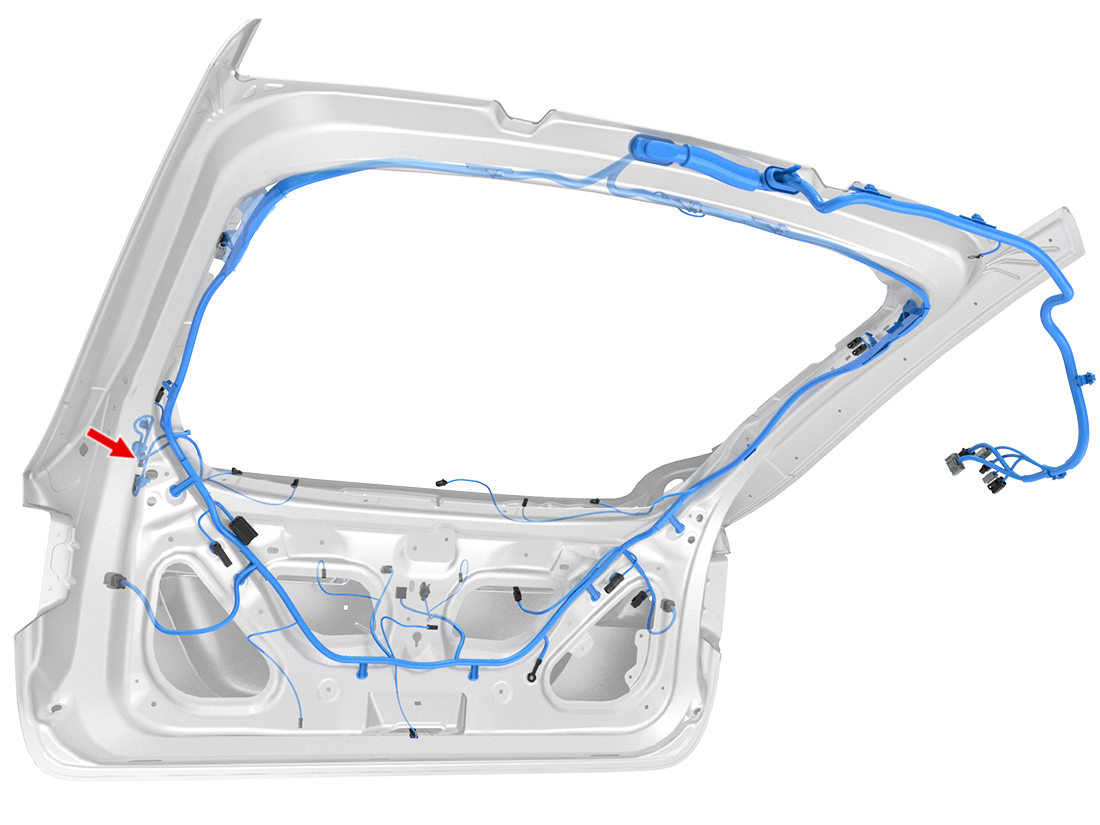

Location:
Connector Detail: JST 02T-JWPF-VSLE-S
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BN | 0.35 | SN | X955F-7 | JST SWPT-001T-P025 | Tesla MAT-120-170 | 1108350-00-C | |
| 2 | BK | 0.35 | SN | GND_LG-1 | JST SWPT-001T-P025 | Tesla MAT-120-170 | 1108350-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BN | 0.35 | SN | X955F-7 | JST SWPT-001T-P025 | Tesla MAT-120-170 | 1108350-00-C | |
| 2 | BK | 0.35 | SN | GND_LG-1 | JST SWPT-001T-P025 | Tesla MAT-120-170 | 1108350-00-C |
