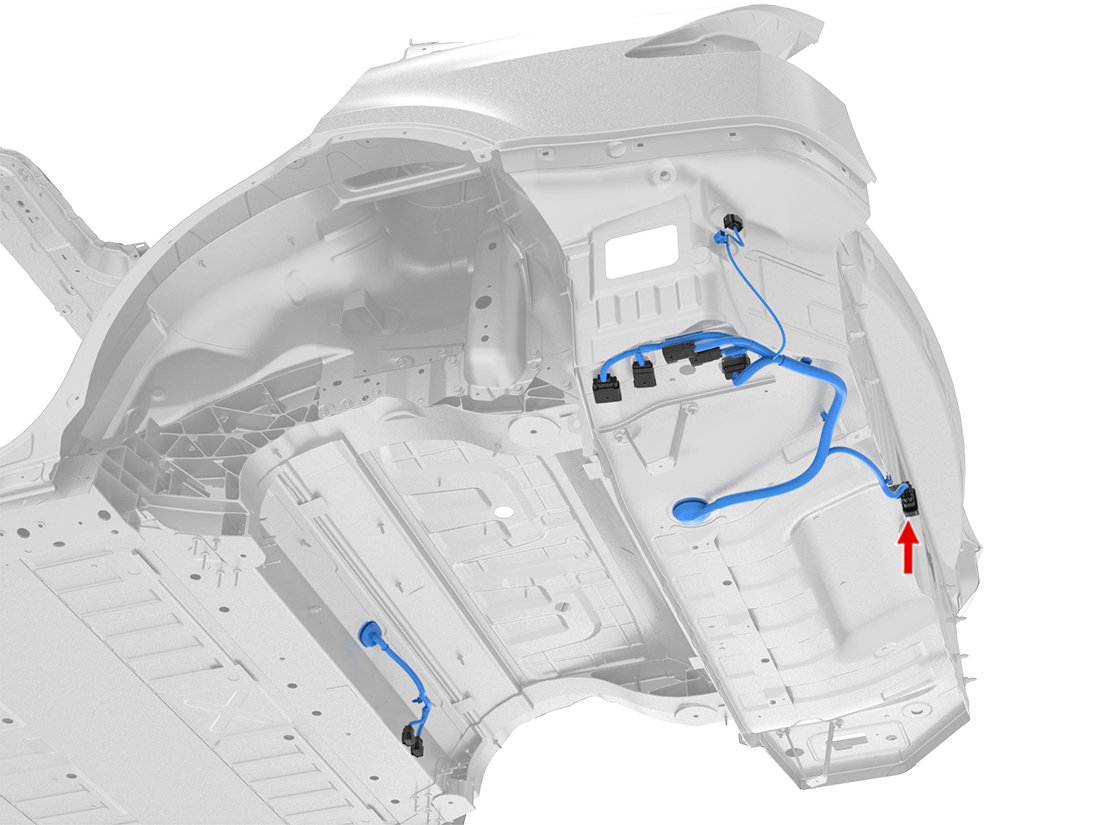

Location:
Connector Detail: MOLEX 34986-1601
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD | 2 | SN | X276-5 | AMP 1326031-5 | YAZAKI 7158-3113-40 | 1099435-00-B | |
| 2 | WH | 0.75 | SN | X078-4 | MOLEX 33000-0002 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 3 | GN | 0.75 | SN | X078-2 | MOLEX 33000-0002 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 4 | BU | 0.75 | SN | X078-3 | MOLEX 33000-0002 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 5 | GY/WH | 0.75 | SN | X078-1 | MOLEX 33000-0002 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 8 | RD | 1 | SN | X913M-9 | AMP 1326031-4 | YAZAKI 7158-3112-70 | 1099435-00-B | |
| 9 | BU | 1.5 | SN | X926M-9 | AMP 1326031-4 | YAZAKI 7158-3112-70 | 1099435-00-B | |
| 12 | GY/WH | 0.5 | SN | X078-8 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 13 | RD | 0.75 | SN | X078-5 | MOLEX 33000-0002 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 15 | GY | 0.75 | SN | X078-6 | MOLEX 33000-0002 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 16 | BK | 2 | SN | GND_LR-1 | AMP 1326031-5 | YAZAKI 7158-3113-40 | 1099435-00-B | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD | 2 | SN | X276-5 | AMP 1326031-5 | YAZAKI 7158-3113-40 | 1099435-00-B | |
| 2 | WH | 0.75 | SN | X078-4 | MOLEX 33000-0002 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 3 | GN | 0.75 | SN | X078-2 | MOLEX 33000-0002 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 4 | BU | 0.75 | SN | X078-3 | MOLEX 33000-0002 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 5 | GY/WH | 0.75 | SN | X078-1 | MOLEX 33000-0002 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 8 | RD | 1 | SN | X913M-9 | AMP 1326031-4 | YAZAKI 7158-3112-70 | 1099435-00-B | |
| 9 | BU | 1.5 | SN | X926M-9 | AMP 1326031-4 | YAZAKI 7158-3112-70 | 1099435-00-B | |
| 12 | GY/WH | 0.5 | SN | X078-8 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 13 | RD | 0.75 | SN | X078-5 | MOLEX 33000-0002 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 15 | GY | 0.75 | SN | X078-6 | MOLEX 33000-0002 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 16 | BK | 2 | SN | GND_LR-1 | AMP 1326031-5 | YAZAKI 7158-3113-40 | 1099435-00-B | |
