X277 - s-rhd-sop10

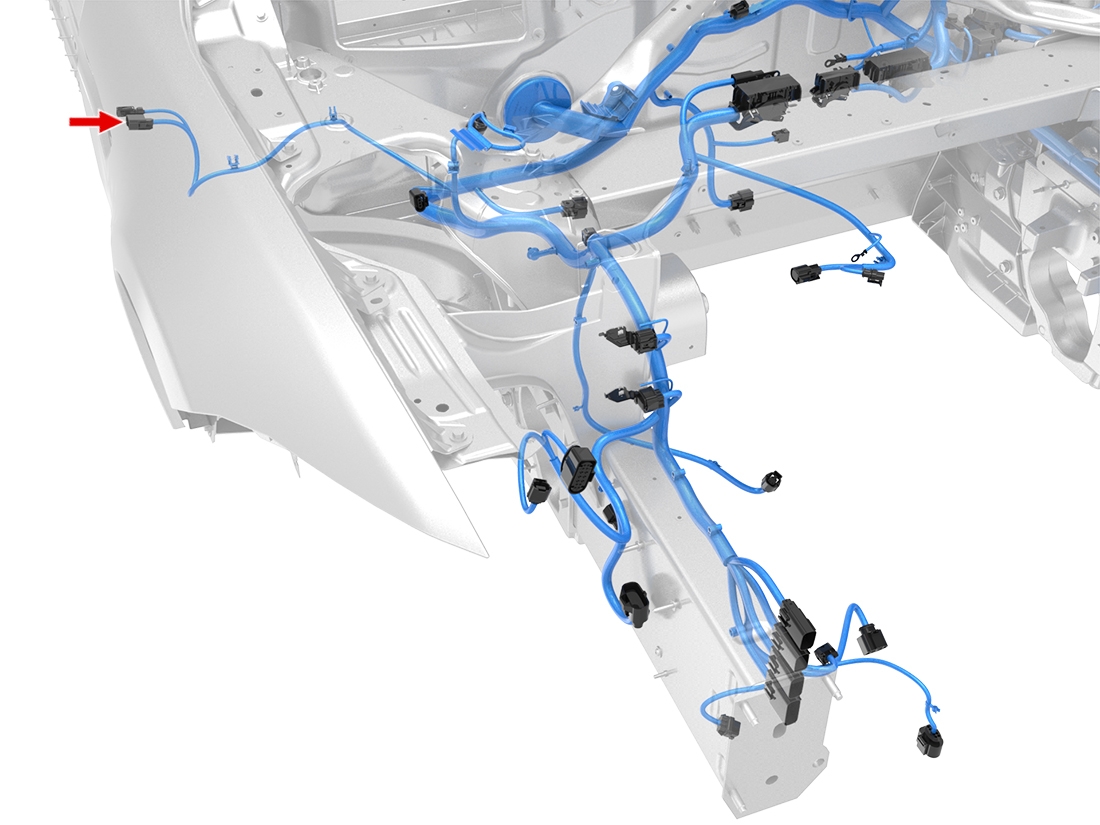

Location:
Connector Detail: DELPHI 13627828
Color: GY
Serviceability: Terminal Pigtail
Connector Detail: Yazaki 7283-4110-40
Color: Gray
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/GN | 0.35 | SN | X955F-19 | Yazaki 7116-4102-02 | Yazaki 7158-3030-50 | 1099558-00-B | |
| 2 | BK | 0.35 | SN | G520-1 | Yazaki 7116-4102-02 | Yazaki 7158-3030-50 | 1099558-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/GN | 0.35 | SN | X955F-19 | Yazaki 7116-4102-02 | Yazaki 7158-3030-50 | 1099558-00-B | |
| 2 | BK | 0.35 | SN | G520-1 | Yazaki 7116-4102-02 | Yazaki 7158-3030-50 | 1099558-00-B |
