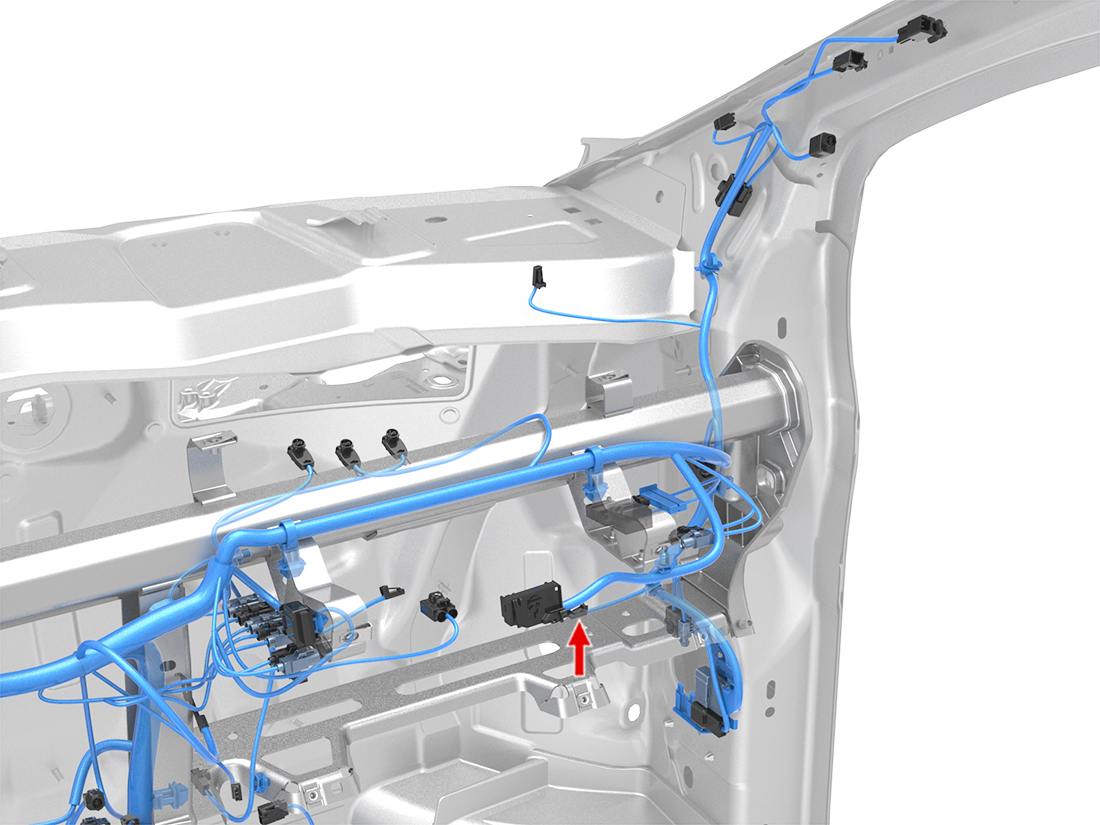

Location:
Location:
Connector Detail: AMP 1-1534113-1
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BU/WH | 0.35 | SN | X576-10 | AMP 5-928999-1 | | 1099455-00-B | |
| 2 | BK | 0.35 | SN | Z52-GDD10-R | AMP 5-928999-1 | | 1099455-00-B | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | WH | 0.35 | SN | X734-10 | AMP 5-928999-1 | | 1099455-00-B | |
| 2 | BK | 0.35 | SN | GND_IP_R-1 | AMP 5-928999-1 | | 1099455-00-B | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | WH | 0.35 | SN | X734-10 | AMP 5-928999-1 | | 1099455-00-B | |
| 2 | BK | 0.35 | SN | GND_IP_R-1 | AMP 5-928999-1 | | 1099455-00-B | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BU/WH | 0.35 | SN | X576-10 | AMP 5-928999-1 | | 1099455-00-B | |
| 2 | BK | 0.35 | SN | Z52-GDD10-R | AMP 5-928999-1 | | 1099455-00-B | |
