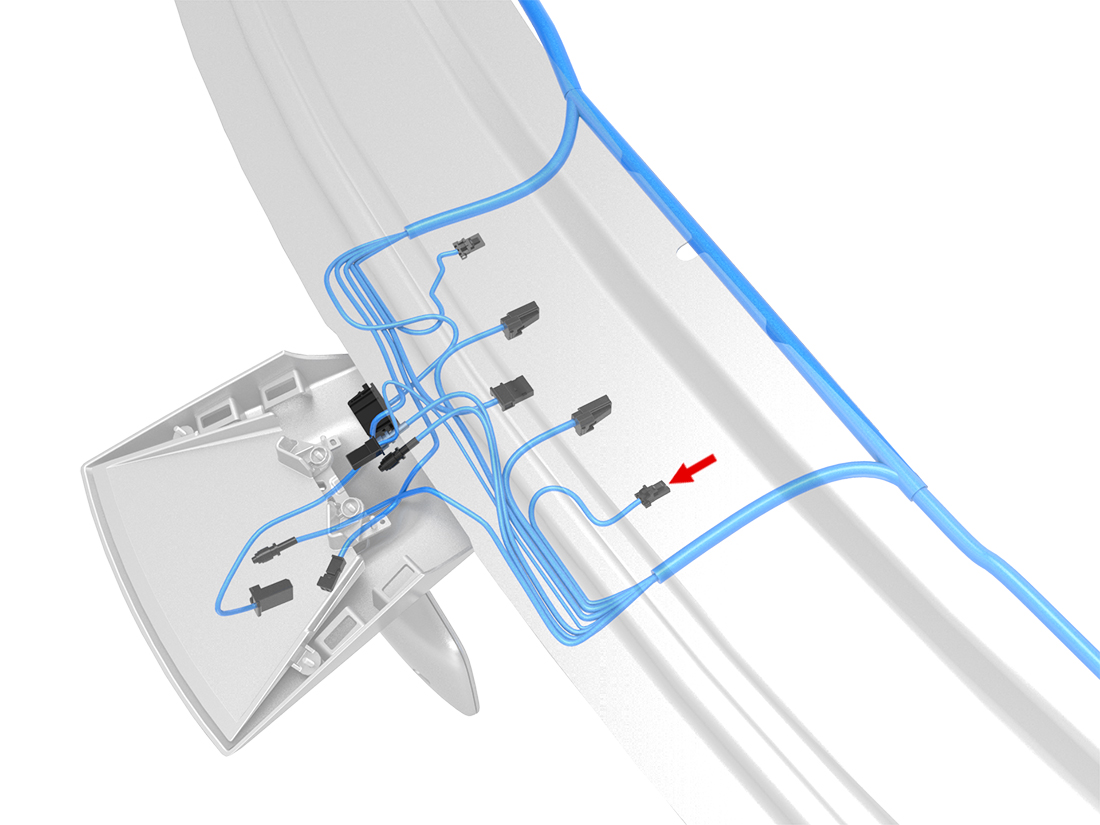

Location:
Connector Detail: Molex 50-57-9703
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GY | 0.35 | SN | X967F-13 | Molex 16-02-0086 | | 1099506-00-A | |
| 2 | BK | 0.35 | SN | Z62-+GDC12-L | Molex 16-02-0086 | | 1099506-00-A | |
| 3 | WH | 0.35 | SN | X967F-12 | Molex 16-02-0086 | | 1099506-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GY | 0.35 | SN | X967F-13 | Molex 16-02-0086 | | 1099506-00-A | |
| 2 | BK | 0.35 | SN | Z62-+GDC12-L | Molex 16-02-0086 | | 1099506-00-A | |
| 3 | WH | 0.35 | SN | X967F-12 | Molex 16-02-0086 | | 1099506-00-A | |
