X285 - s-rhd-sop10

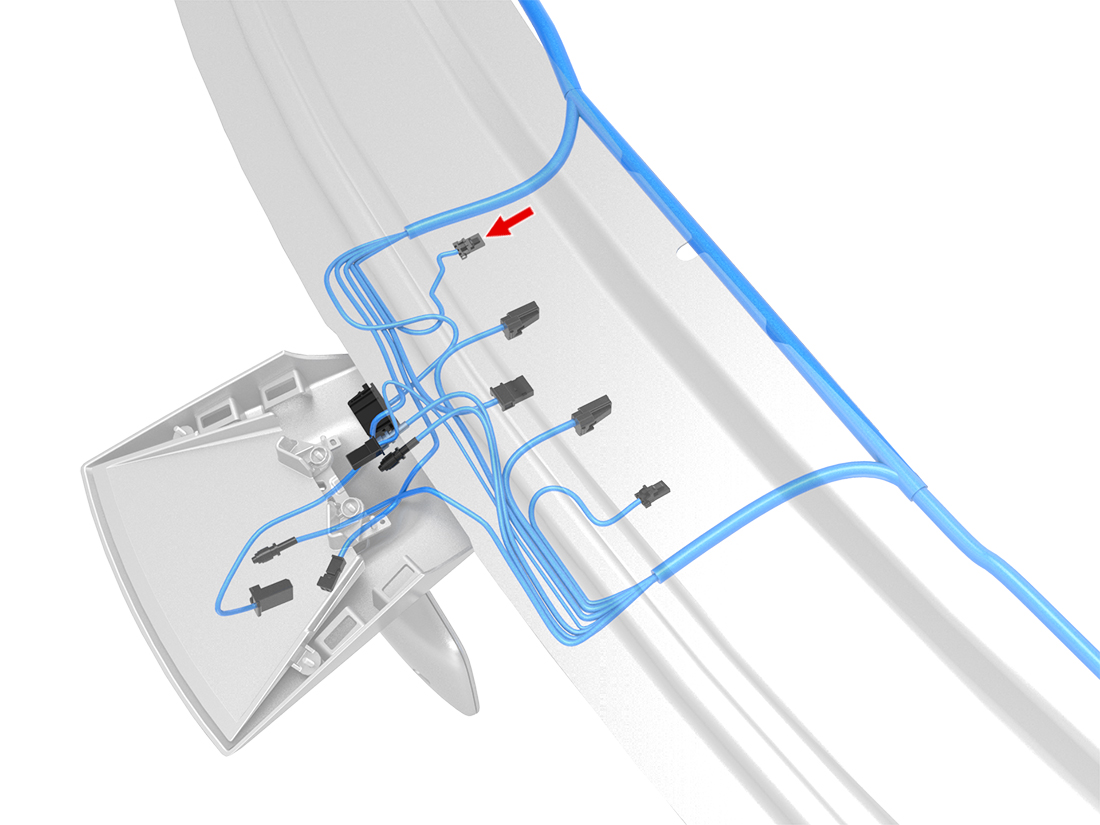

Location:

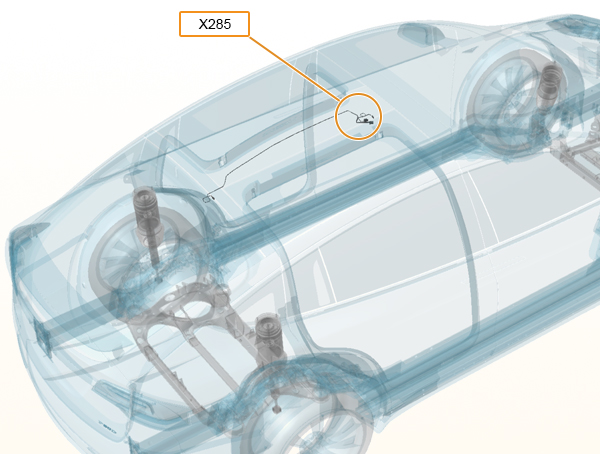

Location:
Connector Detail: Molex 50-57-9703
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: AMP 9-1718346-1
Color: WaterBlue
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/BK | 0.35 | SN | X967F-15 | Molex 16-02-0086 | 1099506-00-A | ||
| 2 | BK | 0.35 | SN | Z62-+GDC12-R | Molex 16-02-0086 | 1099506-00-A | ||
| 3 | BU | 0.35 | SN | X967F-14 | Molex 16-02-0086 | 1099506-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/BK | 0.35 | SN | Z1-INL05-R | AMP 928999-1 | 1099455-00-B | ||
| 2 | BK | 0.35 | SN | X981F-5 | AMP 928999-1 | 1099455-00-B | ||
| 3 | VT | 0.35 | SN | Z2-INL06-R | AMP 928999-1 | 1099455-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/BK | 0.35 | SN | Z1-INL05-R | AMP 928999-1 | 1099455-00-B | ||
| 2 | BK | 0.35 | SN | X981F-5 | AMP 928999-1 | 1099455-00-B | ||
| 3 | VT | 0.35 | SN | Z2-INL06-R | AMP 928999-1 | 1099455-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/BK | 0.35 | SN | X967F-15 | Molex 16-02-0086 | 1099506-00-A | ||
| 2 | BK | 0.35 | SN | Z62-+GDC12-R | Molex 16-02-0086 | 1099506-00-A | ||
| 3 | BU | 0.35 | SN | X967F-14 | Molex 16-02-0086 | 1099506-00-A |
