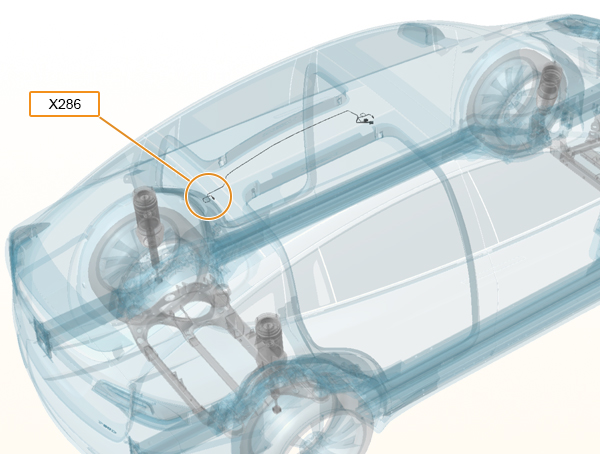

Location:
Connector Detail: AMP 9-1718346-1
Color: WaterBlue
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/BK | 0.35 | SN | Z1-INL05-L | AMP 928999-1 | | 1099455-00-B | |
| 2 | BK | 0.35 | SN | X981F-10 | AMP 928999-1 | | 1099455-00-B | |
| 3 | VT | 0.35 | SN | Z2-INL06-L | AMP 928999-1 | | 1099455-00-B | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/BK | 0.35 | SN | Z1-INL05-L | AMP 928999-1 | | 1099455-00-B | |
| 2 | BK | 0.35 | SN | X981F-10 | AMP 928999-1 | | 1099455-00-B | |
| 3 | VT | 0.35 | SN | Z2-INL06-L | AMP 928999-1 | | 1099455-00-B | |
