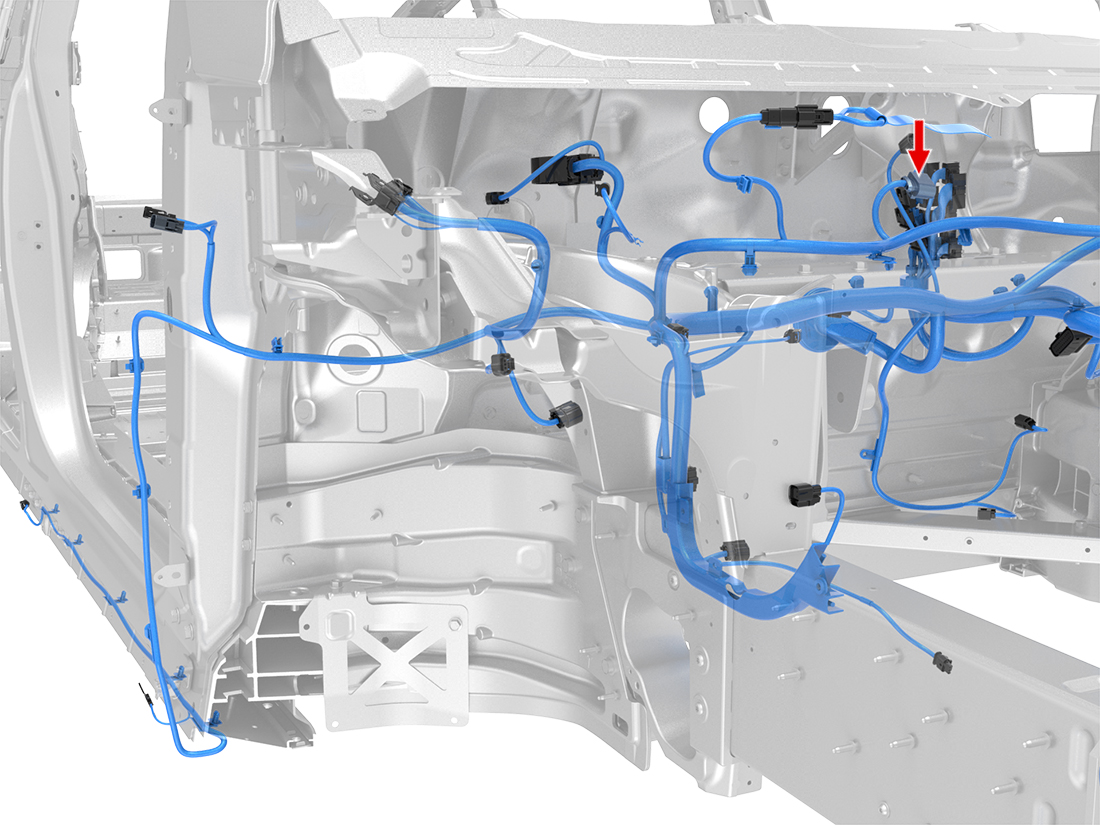

Location:
Location:
Connector Detail: FEP 42122100
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/BU | 2 | SN | X001-22 | AMP 964273-2 | AMP 963293-1 | | |
| 2 | BK | 2 | SN | GND_FR_RH2-1 | AMP 964273-2 | AMP 963293-1 | | |
| 3 | VT/WH | 0.5 | SN | X913F-16 | AMP 964282-2 | AMP 963294-1 | 1099468-00-C | |
| 4 | GN | 0.5 | SN | X914M-13 | AMP 964282-2 | AMP 963294-1 | 1099468-00-C | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/BU | 2 | SN | X001-22 | AMP 964273-2 | AMP 963293-1 | | |
| 2 | BK | 2 | SN | GND_FR_RH2-1 | AMP 964273-2 | AMP 963293-1 | | |
| 3 | VT/WH | 0.5 | SN | X913F-16 | AMP 964282-2 | AMP 963294-1 | 1099468-00-C | |
| 4 | GN | 0.5 | SN | X914M-13 | AMP 964282-2 | AMP 963294-1 | 1099468-00-C | |
