X302 - s-rhd-sop10

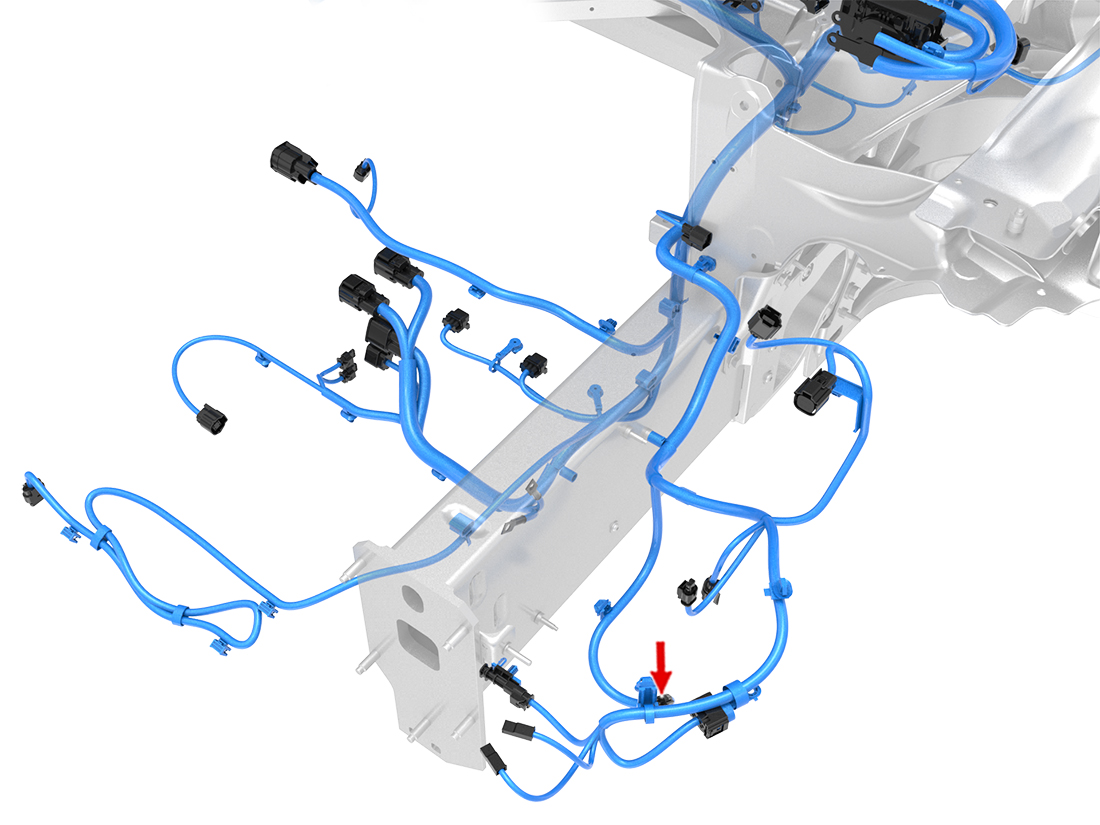

Location:

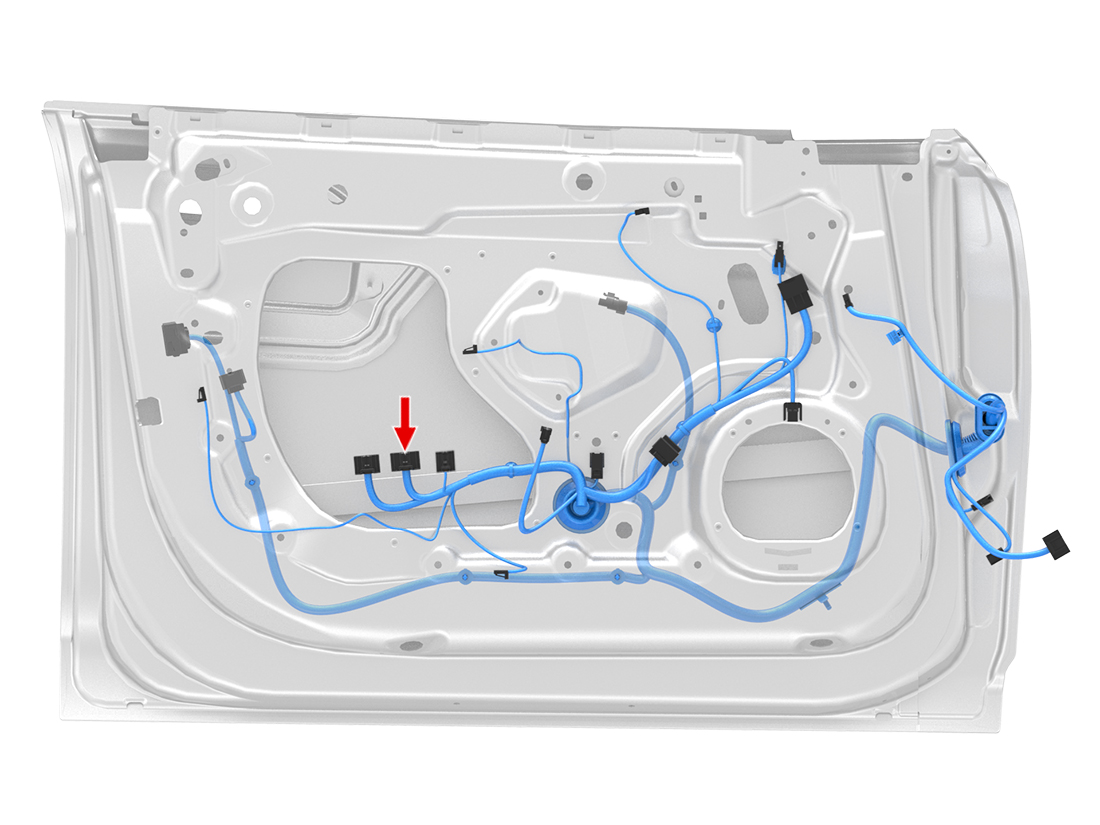

Location:
Connector Detail: Delphi 12162195
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: JAE MX34028SF1
Color: Gray
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 2 | OG | 0.35 | SN | X928F-3 | JAE M34S75C4F1 | 1099499-00-B | ||
| 3 | GN | 0.35 | SN | Z7-DCL10-L | JAE M34S75C4F1 | 1099499-00-B | ||
| 4 | RD/GY | 0.35 | SN | X316-1 | JAE M34S75C4F1 | 1099499-00-B | ||
| 5 | RD/VT | 0.35 | SN | X316-7 | JAE M34S75C4F1 | 1099499-00-B | ||
| 6 | RD/GN | 0.35 | SN | X316-8 | JAE M34S75C4F1 | 1099499-00-B | ||
| 8 | RD/BK | 0.35 | SN | X316-5 | JAE M34S75C4F1 | 1099499-00-B | ||
| 14 | RD | 0.35 | SN | X488-1 | JAE M34S75C4F1 | 1099499-00-B | ||
| 15 | BN | 0.35 | SN | X943F-15 | JAE M34S75C4F1 | 1099499-00-B | ||
| 16 | BN/WH | 0.35 | SN | X943F-6 | JAE M34S75C4F1 | 1099499-00-B | ||
| 18 | GY | 0.35 | SN | X316-11 | JAE M34S75C4F1 | 1099499-00-B | ||
| 19 | YE/WH | 0.35 | SN | X316-17 | JAE M34S75C4F1 | 1099499-00-B | ||
| 21 | WH/BK | 0.35 | SN | X316-18 | JAE M34S75C4F1 | 1099499-00-B | ||
| 22 | BK | 0.35 | SN | X943F-13 | JAE M34S75C4F1 | 1099499-00-B | ||
| 23 | GY/WH | 0.35 | SN | X928F-7 | JAE M34S75C4F1 | 1099499-00-B | ||
| 27 | SI | 0.35 | SN | Z1-SEC19-R | JAE M34S75C4F1 | 1099499-00-B | ||
| 28 | BK | 0.35 | SN | X488-3 | JAE M34S75C4F1 | 1099499-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| A | BK | 0.5 | SN | GND_FR_LH1-1 | Delphi 12089290 | Tesla MAT-125-185 | 1108329-00-C | |
| B | BN/WH | 0.5 | SN | X051-11 | Delphi 12089290 | Tesla MAT-125-185 | 1108329-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| A | BK | 0.5 | SN | GND_FR_LH1-1 | Delphi 12089290 | Tesla MAT-125-185 | 1108329-00-C | |
| B | BN/WH | 0.5 | SN | X051-11 | Delphi 12089290 | Tesla MAT-125-185 | 1108329-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 2 | OG | 0.35 | SN | X928F-3 | JAE M34S75C4F1 | 1099499-00-B | ||
| 3 | GN | 0.35 | SN | Z7-DCL10-L | JAE M34S75C4F1 | 1099499-00-B | ||
| 4 | RD/GY | 0.35 | SN | X316-1 | JAE M34S75C4F1 | 1099499-00-B | ||
| 5 | RD/VT | 0.35 | SN | X316-7 | JAE M34S75C4F1 | 1099499-00-B | ||
| 6 | RD/GN | 0.35 | SN | X316-8 | JAE M34S75C4F1 | 1099499-00-B | ||
| 8 | RD/BK | 0.35 | SN | X316-5 | JAE M34S75C4F1 | 1099499-00-B | ||
| 14 | RD | 0.35 | SN | X488-1 | JAE M34S75C4F1 | 1099499-00-B | ||
| 15 | BN | 0.35 | SN | X943F-15 | JAE M34S75C4F1 | 1099499-00-B | ||
| 16 | BN/WH | 0.35 | SN | X943F-6 | JAE M34S75C4F1 | 1099499-00-B | ||
| 18 | GY | 0.35 | SN | X316-11 | JAE M34S75C4F1 | 1099499-00-B | ||
| 19 | YE/WH | 0.35 | SN | X316-17 | JAE M34S75C4F1 | 1099499-00-B | ||
| 21 | WH/BK | 0.35 | SN | X316-18 | JAE M34S75C4F1 | 1099499-00-B | ||
| 22 | BK | 0.35 | SN | X943F-13 | JAE M34S75C4F1 | 1099499-00-B | ||
| 23 | GY/WH | 0.35 | SN | X928F-7 | JAE M34S75C4F1 | 1099499-00-B | ||
| 27 | SI | 0.35 | SN | Z1-SEC19-R | JAE M34S75C4F1 | 1099499-00-B | ||
| 28 | BK | 0.35 | SN | X488-3 | JAE M34S75C4F1 | 1099499-00-B |
