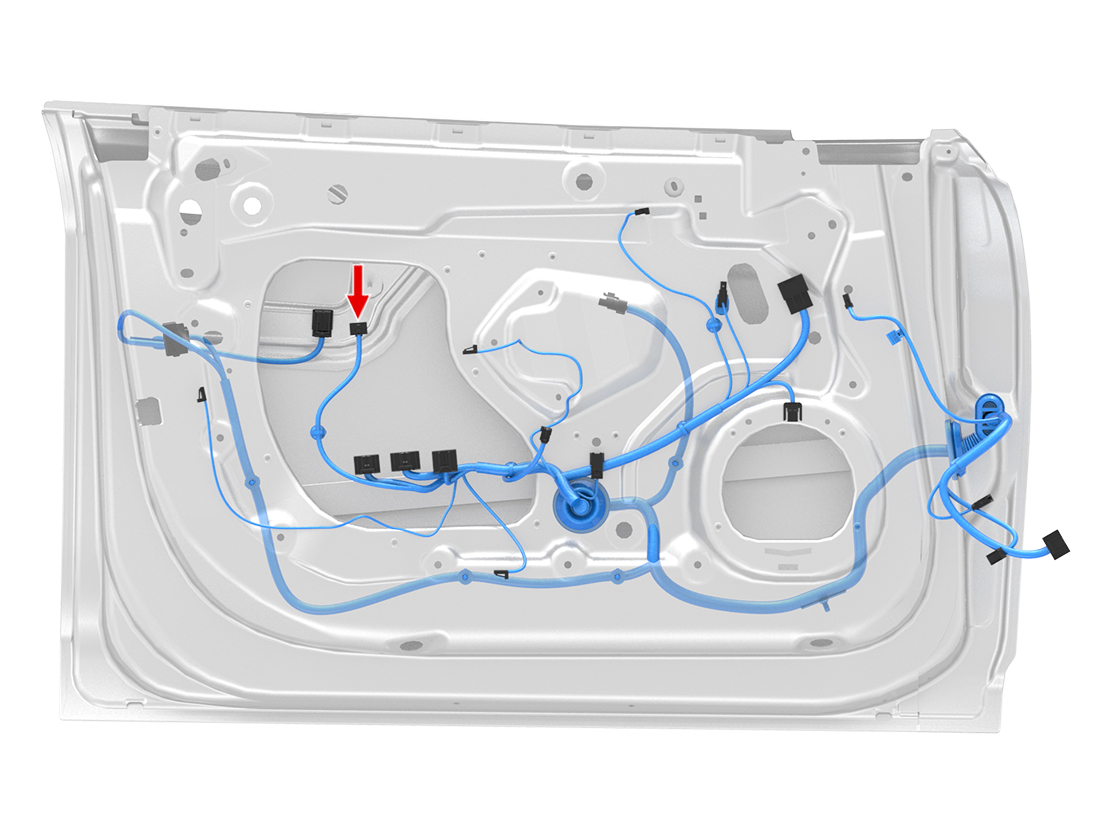

Location:
Connector Detail: Molex 34824-5124
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GY | 0.35 | SN | X310A-1 | Molex 560023-0421 | | 1108392-00-C | |
| 2 | BN | 0.35 | SN | X310A-2 | Molex 560023-0421 | | 1108392-00-C | |
| 3 | WH | 0.35 | SN | Z2-DCL12-R | Molex 560023-0421 | | 1108392-00-C | |
| 4 | WH/BU | 0.35 | SN | X301-18 | Molex 560023-0421 | | 1108392-00-C | |
| 5 | BK/WH | 0.35 | SN | X310A-6 | Molex 560023-0421 | | 1108392-00-C | |
| 6 | RD/WH | 0.35 | SN | X310A-5 | Molex 560023-0421 | | 1108392-00-C | |
| 7 | OG | 0.35 | SN | X310A-4 | Molex 560023-0421 | | 1108392-00-C | |
| 8 | GN | 0.35 | SN | X310A-3 | Molex 560023-0421 | | 1108392-00-C | |
| 11 | RD | 0.35 | SN | Z78-PRM06-L | Molex 560023-0421 | | 1108392-00-C | |
| 12 | BK | 0.35 | SN | Z77-GDD01-L | Molex 560023-0421 | | 1108392-00-C | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GY | 0.35 | SN | X310A-1 | Molex 560023-0421 | | 1108392-00-C | |
| 2 | BN | 0.35 | SN | X310A-2 | Molex 560023-0421 | | 1108392-00-C | |
| 3 | WH | 0.35 | SN | Z2-DCL12-R | Molex 560023-0421 | | 1108392-00-C | |
| 4 | WH/BU | 0.35 | SN | X301-18 | Molex 560023-0421 | | 1108392-00-C | |
| 5 | BK/WH | 0.35 | SN | X310A-6 | Molex 560023-0421 | | 1108392-00-C | |
| 6 | RD/WH | 0.35 | SN | X310A-5 | Molex 560023-0421 | | 1108392-00-C | |
| 7 | OG | 0.35 | SN | X310A-4 | Molex 560023-0421 | | 1108392-00-C | |
| 8 | GN | 0.35 | SN | X310A-3 | Molex 560023-0421 | | 1108392-00-C | |
| 11 | RD | 0.35 | SN | Z78-PRM06-L | Molex 560023-0421 | | 1108392-00-C | |
| 12 | BK | 0.35 | SN | Z77-GDD01-L | Molex 560023-0421 | | 1108392-00-C | |
