X310 - s-rhd-sop10

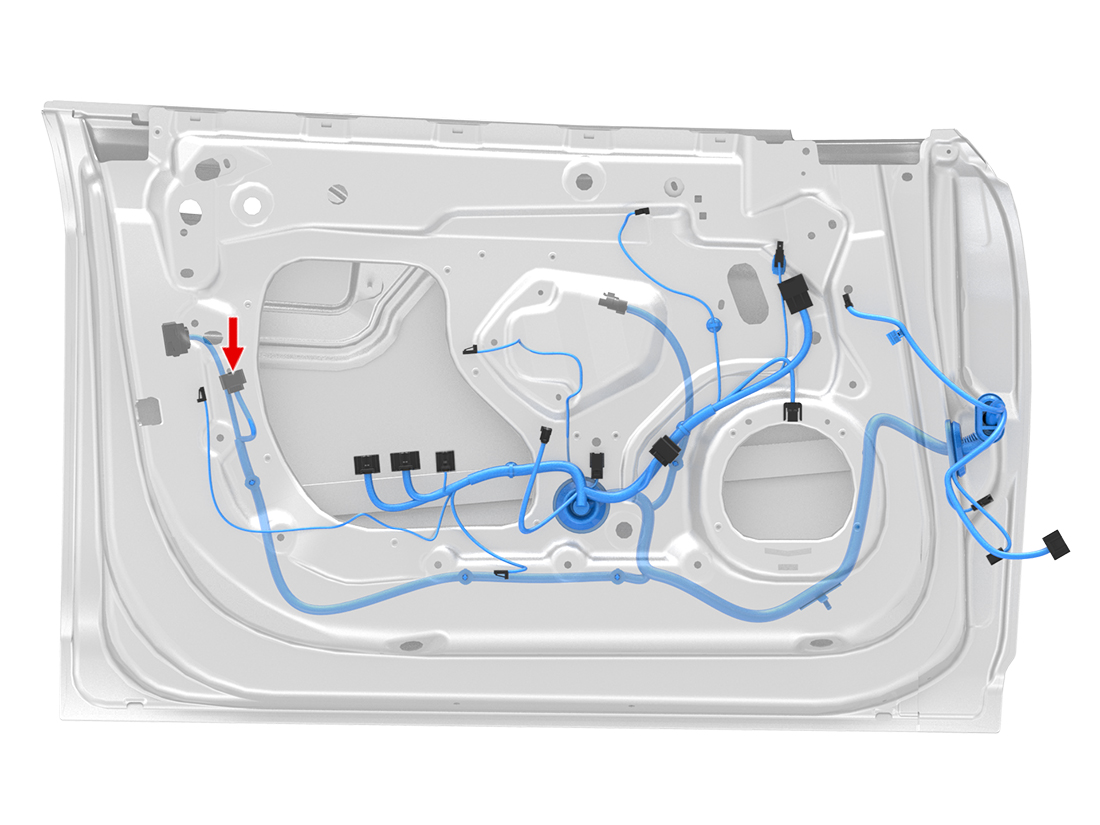

Location:
Location:
Connector Detail: AMP 171809-2
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: Yazaki 7283-8856-30
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 0.35 | SN | Z78-PRM06-R | Yazaki 7116-4415-02 | Yazaki 7158-3166-60 | 1102120-00-B | |
| 2 | BK | 0.35 | SN | Z77-GDD01-R | Yazaki 7116-4415-02 | Yazaki 7158-3166-60 | 1102120-00-B | |
| 5 | WH/BU | 0.35 | SN | X301-18 | Yazaki 7116-4415-02 | Yazaki 7158-3166-60 | 1102120-00-B | |
| 10 | WH | 0.35 | SN | Z2-DCL12-L | Yazaki 7116-4415-02 | Yazaki 7158-3166-60 | 1102120-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/GN | 2 | SN | X956F-1 | AMP 170233-2 | 1099443-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/GN | 2 | SN | X956F-1 | AMP 170233-2 | 1099443-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 0.35 | SN | Z78-PRM06-R | Yazaki 7116-4415-02 | Yazaki 7158-3166-60 | 1102120-00-B | |
| 2 | BK | 0.35 | SN | Z77-GDD01-R | Yazaki 7116-4415-02 | Yazaki 7158-3166-60 | 1102120-00-B | |
| 5 | WH/BU | 0.35 | SN | X301-18 | Yazaki 7116-4415-02 | Yazaki 7158-3166-60 | 1102120-00-B | |
| 10 | WH | 0.35 | SN | Z2-DCL12-L | Yazaki 7116-4415-02 | Yazaki 7158-3166-60 | 1102120-00-B |
