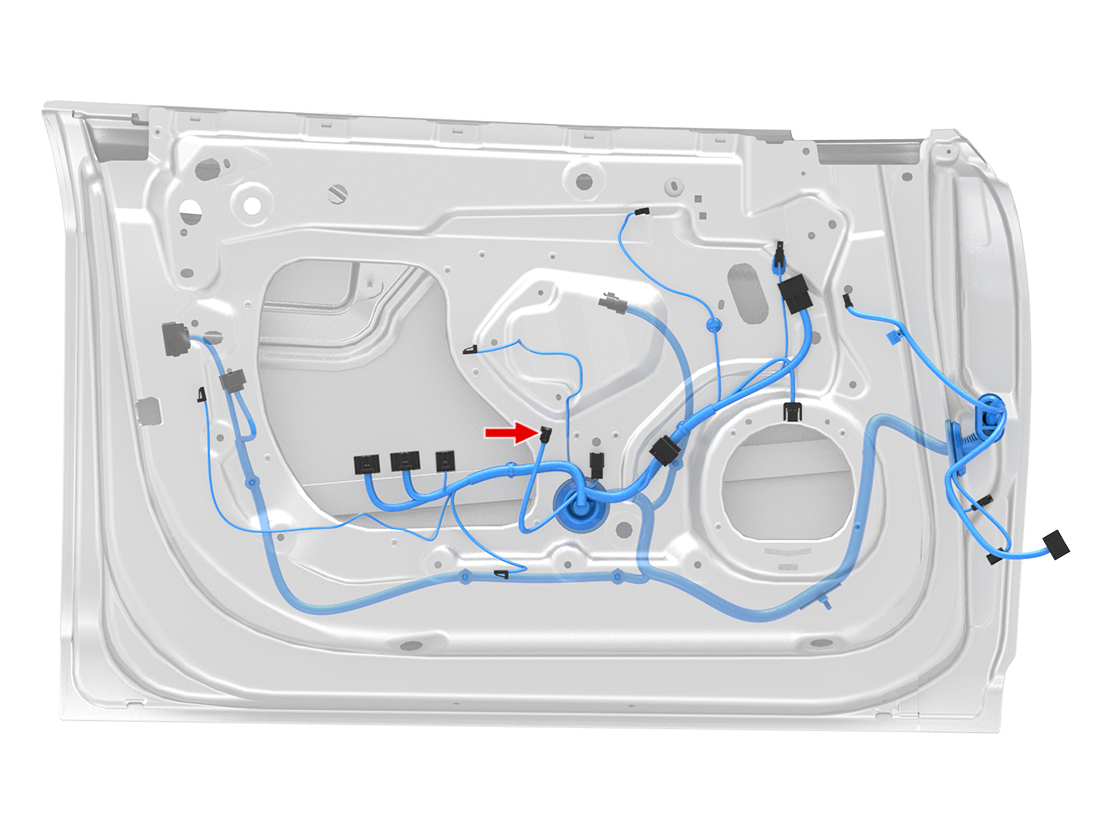

Location:
Connector Detail: AMP 2-929170-4
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | WH/RD | 0.5 | SN | X315-6 | AMP 5-963715-1 | | 1099458-00-A | |
| 2 | BK | 0.35 | SN | Z36-GDD01-L | AMP 5-928999-1 | | 1099455-00-B | |
| 3 | GY | 0.35 | SN | Z4-DCL15-L | AMP 5-928999-1 | | 1099455-00-B | |
| 4 | BU | 0.5 | SN | X315-1 | AMP 5-963715-1 | | 1099458-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | WH/RD | 0.5 | SN | X315-6 | AMP 5-963715-1 | | 1099458-00-A | |
| 2 | BK | 0.35 | SN | Z36-GDD01-L | AMP 5-928999-1 | | 1099455-00-B | |
| 3 | GY | 0.35 | SN | Z4-DCL15-L | AMP 5-928999-1 | | 1099455-00-B | |
| 4 | BU | 0.5 | SN | X315-1 | AMP 5-963715-1 | | 1099458-00-A | |
