X332 - s-rhd-sop10

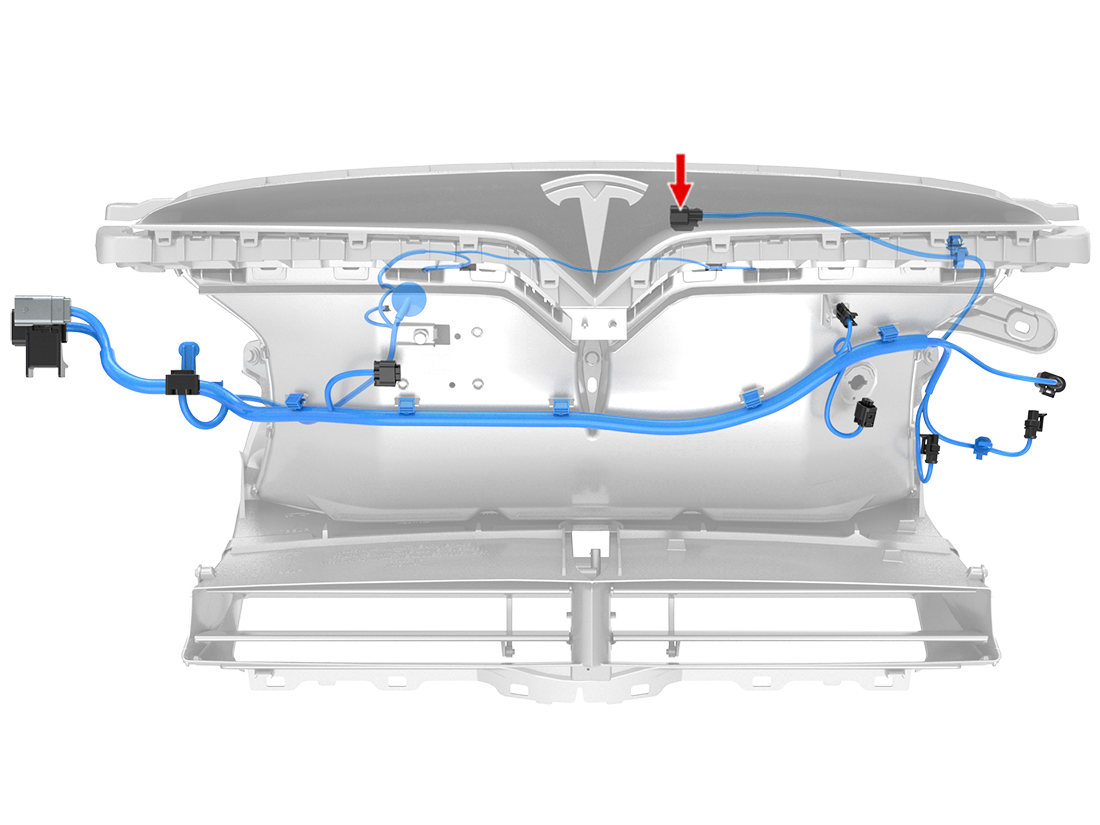

Location:

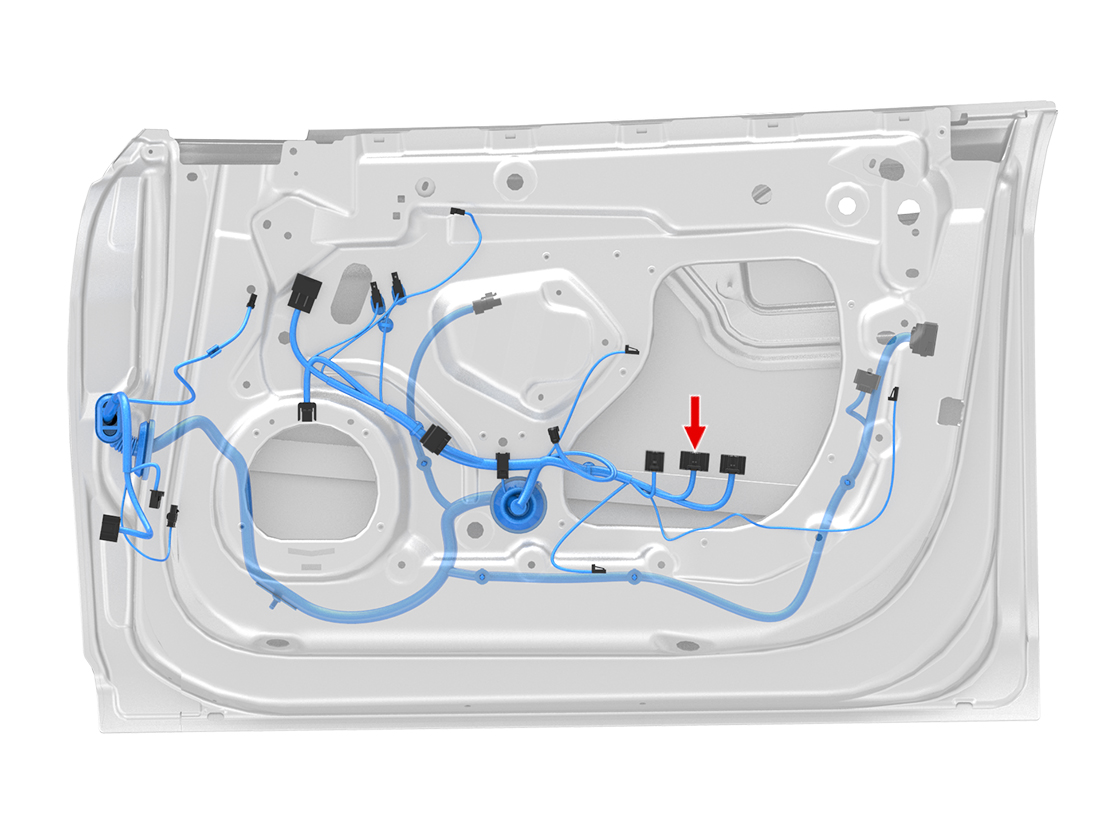

Location:
Connector Detail: AEES E-3550
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: JAE MX34028SF1
Color: Gray
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 2 | OG | 0.35 | SN | X929F-3 | JAE M34S75C4F1 | 1099499-00-B | ||
| 3 | GN | 0.35 | SN | Z13-DCR10-R | JAE M34S75C4F1 | 1099499-00-B | ||
| 4 | RD/GY | 0.35 | SN | X346-1 | JAE M34S75C4F1 | 1099499-00-B | ||
| 5 | RD/VT | 0.35 | SN | X346-7 | JAE M34S75C4F1 | 1099499-00-B | ||
| 6 | RD/GN | 0.35 | SN | X346-8 | JAE M34S75C4F1 | 1099499-00-B | ||
| 8 | RD/BK | 0.35 | SN | X346-5 | JAE M34S75C4F1 | 1099499-00-B | ||
| 14 | RD | 0.35 | SN | X489-1 | JAE M34S75C4F1 | 1099499-00-B | ||
| 15 | BN | 0.35 | SN | X944F-15 | JAE M34S75C4F1 | 1099499-00-B | ||
| 16 | BN/WH | 0.35 | SN | X944F-6 | JAE M34S75C4F1 | 1099499-00-B | ||
| 18 | VT | 0.35 | SN | X346-11 | JAE M34S75C4F1 | 1099499-00-B | ||
| 19 | YE/WH | 0.35 | SN | X346-17 | JAE M34S75C4F1 | 1099499-00-B | ||
| 21 | WH/BK | 0.35 | SN | X346-18 | JAE M34S75C4F1 | 1099499-00-B | ||
| 22 | BK | 0.35 | SN | X944F-13 | JAE M34S75C4F1 | 1099499-00-B | ||
| 23 | GY/WH | 0.35 | SN | X929F-7 | JAE M34S75C4F1 | 1099499-00-B | ||
| 27 | SI | 0.35 | SN | Z1-SEC23-R | JAE M34S75C4F1 | 1099499-00-B | ||
| 28 | BK | 0.35 | SN | X489-3 | JAE M34S75C4F1 | 1099499-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GN | 0.5 | SN | X905M-8 | Yazaki 7116-4102-02 | QSR E1644-06 | 1099558-00-B | |
| 2 | BK | 0.5 | SN | Z3-+GJRF106-R | Yazaki 7116-4102-02 | QSR E1644-06 | 1099558-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GN | 0.5 | SN | X905M-8 | Yazaki 7116-4102-02 | QSR E1644-06 | 1099558-00-B | |
| 2 | BK | 0.5 | SN | Z3-+GJRF106-R | Yazaki 7116-4102-02 | QSR E1644-06 | 1099558-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 2 | OG | 0.35 | SN | X929F-3 | JAE M34S75C4F1 | 1099499-00-B | ||
| 3 | GN | 0.35 | SN | Z13-DCR10-R | JAE M34S75C4F1 | 1099499-00-B | ||
| 4 | RD/GY | 0.35 | SN | X346-1 | JAE M34S75C4F1 | 1099499-00-B | ||
| 5 | RD/VT | 0.35 | SN | X346-7 | JAE M34S75C4F1 | 1099499-00-B | ||
| 6 | RD/GN | 0.35 | SN | X346-8 | JAE M34S75C4F1 | 1099499-00-B | ||
| 8 | RD/BK | 0.35 | SN | X346-5 | JAE M34S75C4F1 | 1099499-00-B | ||
| 14 | RD | 0.35 | SN | X489-1 | JAE M34S75C4F1 | 1099499-00-B | ||
| 15 | BN | 0.35 | SN | X944F-15 | JAE M34S75C4F1 | 1099499-00-B | ||
| 16 | BN/WH | 0.35 | SN | X944F-6 | JAE M34S75C4F1 | 1099499-00-B | ||
| 18 | VT | 0.35 | SN | X346-11 | JAE M34S75C4F1 | 1099499-00-B | ||
| 19 | YE/WH | 0.35 | SN | X346-17 | JAE M34S75C4F1 | 1099499-00-B | ||
| 21 | WH/BK | 0.35 | SN | X346-18 | JAE M34S75C4F1 | 1099499-00-B | ||
| 22 | BK | 0.35 | SN | X944F-13 | JAE M34S75C4F1 | 1099499-00-B | ||
| 23 | GY/WH | 0.35 | SN | X929F-7 | JAE M34S75C4F1 | 1099499-00-B | ||
| 27 | SI | 0.35 | SN | Z1-SEC23-R | JAE M34S75C4F1 | 1099499-00-B | ||
| 28 | BK | 0.35 | SN | X489-3 | JAE M34S75C4F1 | 1099499-00-B |
