X333 - s-rhd-sop10

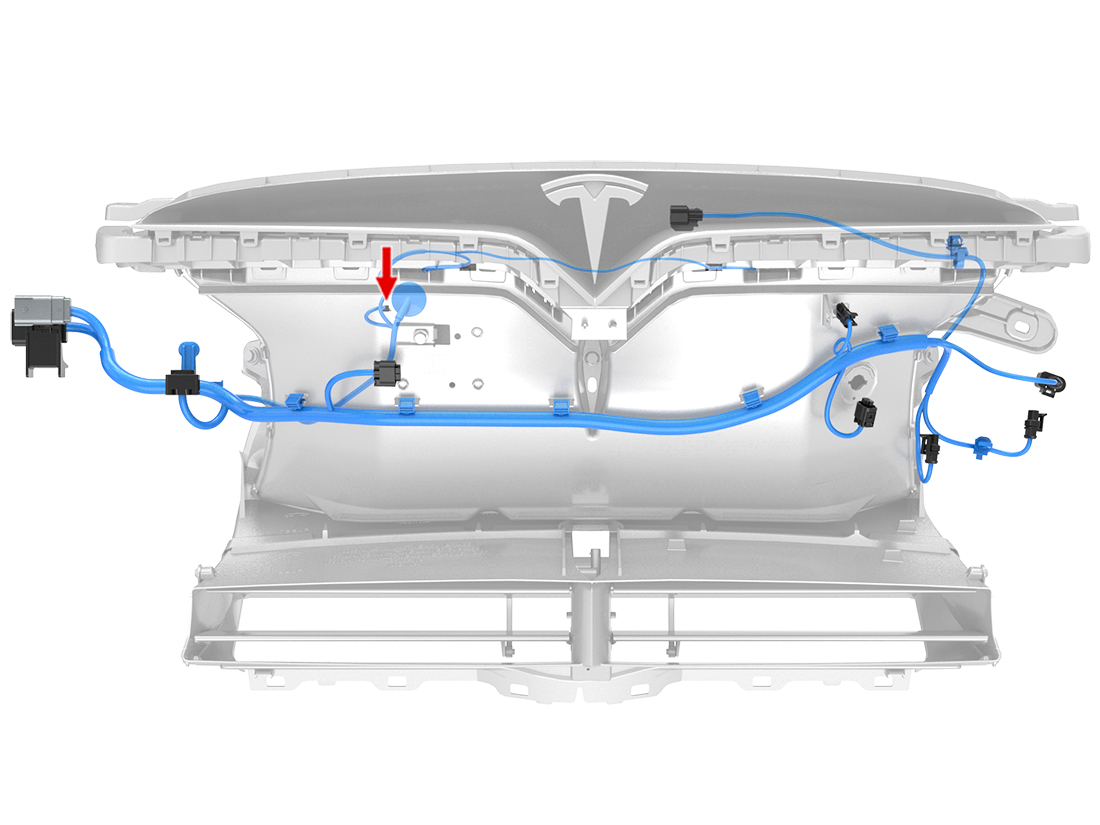

Location:

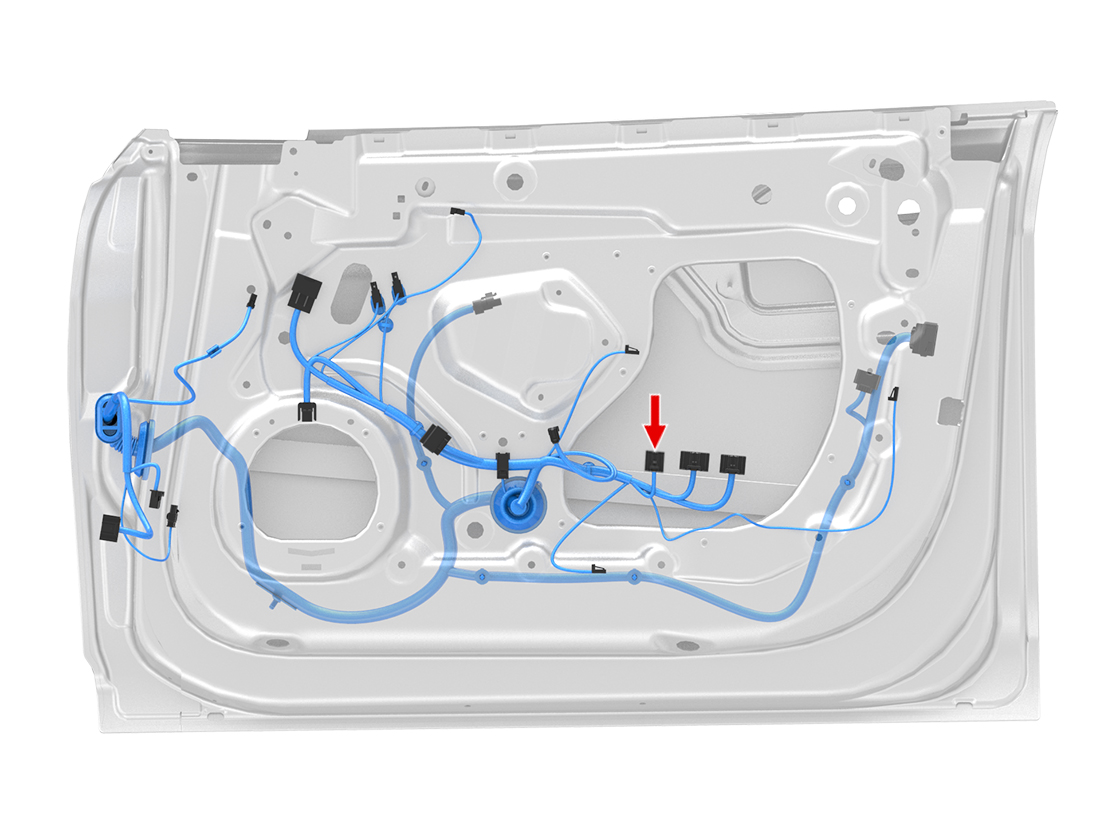

Location:
Connector Detail: AMP 1-1718346-1
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: Molex 31372-1000
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | YE/WH | 0.35 | SN | X944F-3 | Molex 33012-3003 | 1099518-00-A | 1116485-00-A | |
| 7 | RD | 0.5 | SN | Z72-PRM26-L | AMP 1326030-2 | 1099431-00-A | ||
| 10 | BK | 0.5 | SN | Z35-GDC09-L | AMP 1326030-2 | 1099431-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BN | 0.5 | SN | X906M-14 | AMP 5-963715-1 | 1099458-00-A | ||
| 2 | BK | 0.75 | SN | Z3-+GJRF106-L | AMP 5-963715-1 | 1099458-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BN | 0.5 | SN | X906M-14 | AMP 5-963715-1 | 1099458-00-A | ||
| 2 | BK | 0.75 | SN | Z3-+GJRF106-L | AMP 5-963715-1 | 1099458-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | YE/WH | 0.35 | SN | X944F-3 | Molex 33012-3003 | 1099518-00-A | 1116485-00-A | |
| 7 | RD | 0.5 | SN | Z72-PRM26-L | AMP 1326030-2 | 1099431-00-A | ||
| 10 | BK | 0.5 | SN | Z35-GDC09-L | AMP 1326030-2 | 1099431-00-A |
