X340 - s-rhd-sop10

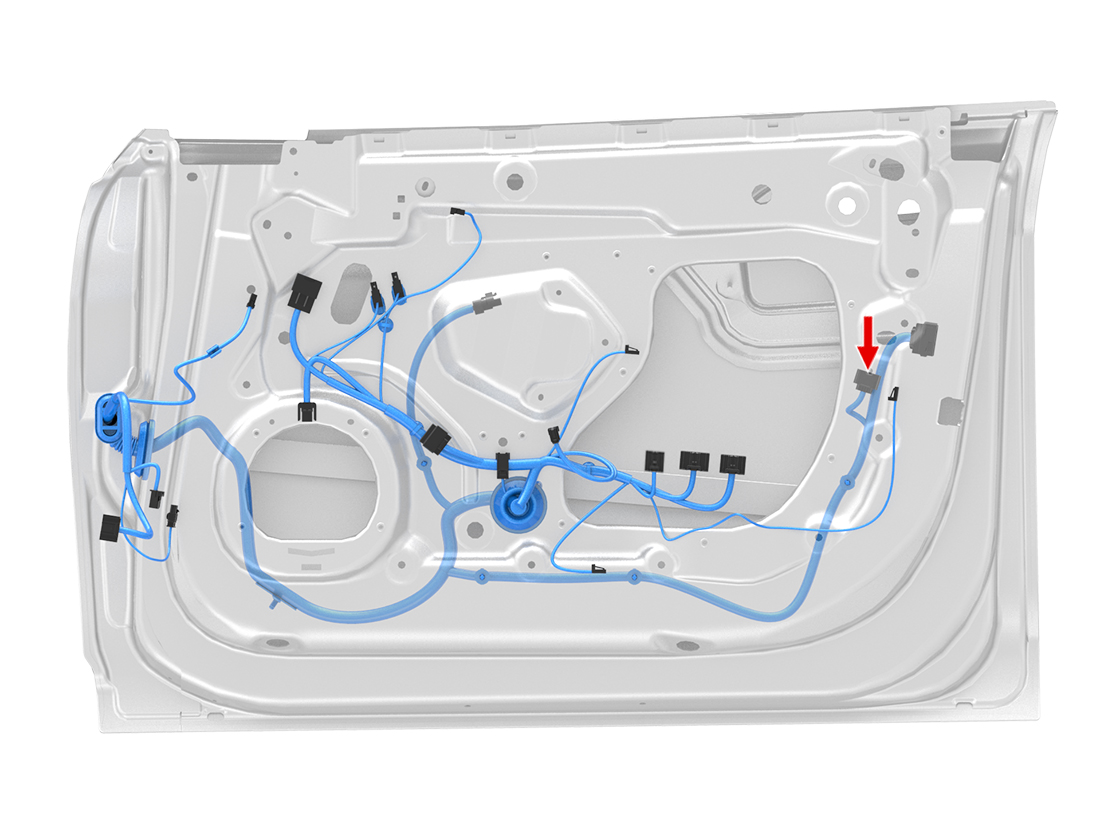

Location:

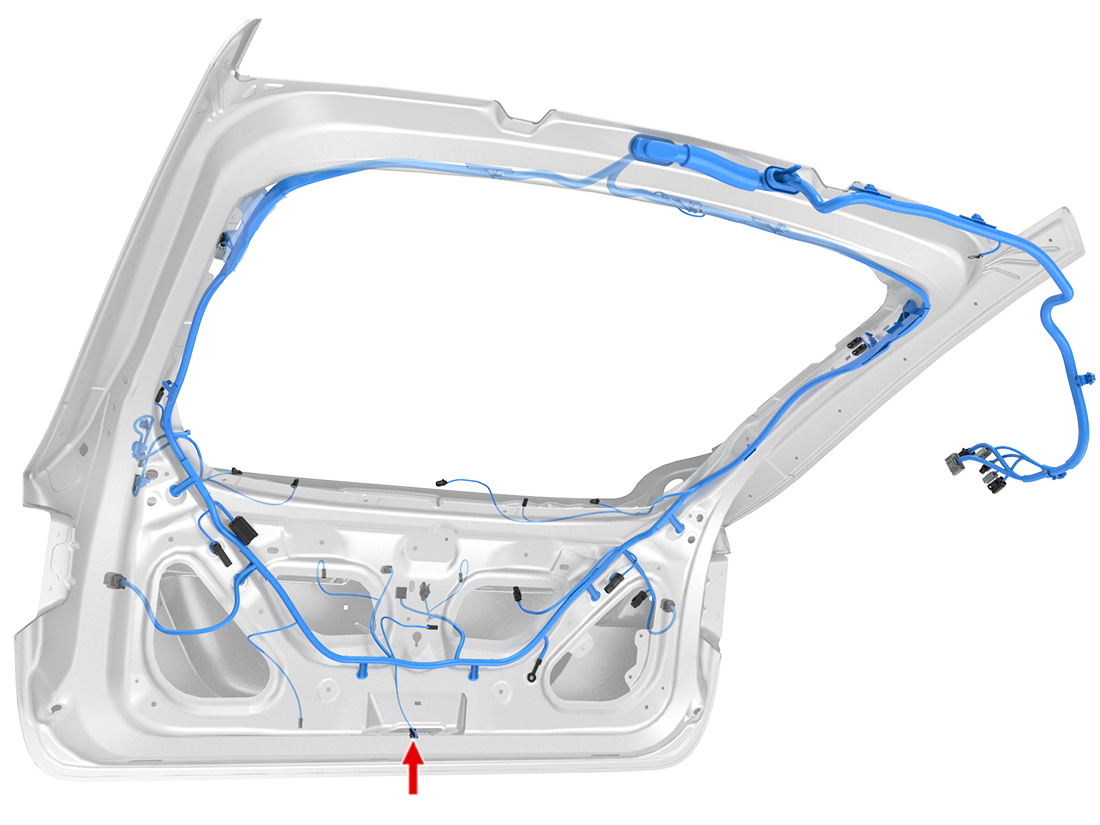

Location:
Connector Detail: AMP 1241634-1
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: Yazaki 7283-8856-30
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 0.35 | SN | Z72-PRM26-L | Yazaki 7116-4415-02 | Yazaki 7158-3166-60 | 1102120-00-B | |
| 2 | BK | 0.35 | SN | Z73-GDC09-R | Yazaki 7116-4415-02 | Yazaki 7158-3166-60 | 1102120-00-B | |
| 5 | WH/BU | 0.35 | SN | X331-18 | Yazaki 7116-4415-02 | Yazaki 7158-3166-60 | 1102120-00-B | |
| 10 | WH | 0.35 | SN | Z8-DCR12-L | Yazaki 7116-4415-02 | Yazaki 7158-3166-60 | 1102120-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GY/WH | 0.5 | SN | X955F-17 | AMP 5-963715-1 | 1099458-00-A | ||
| 2 | BK | 0.5 | SN | GND_LG-1 | AMP 5-963715-1 | 1099458-00-A | ||
| 3 | BU | 0.35 | SN | X955F-18 | AMP 5-928999-1 | 1099455-00-B | ||
| 4 | GY | 0.35 | SN | X955F-19 | AMP 5-928999-1 | 1099455-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GY/WH | 0.5 | SN | X955F-17 | AMP 5-963715-1 | 1099458-00-A | ||
| 2 | BK | 0.5 | SN | GND_LG-1 | AMP 5-963715-1 | 1099458-00-A | ||
| 3 | BU | 0.35 | SN | X955F-18 | AMP 5-928999-1 | 1099455-00-B | ||
| 4 | GY | 0.35 | SN | X955F-19 | AMP 5-928999-1 | 1099455-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 0.35 | SN | Z72-PRM26-L | Yazaki 7116-4415-02 | Yazaki 7158-3166-60 | 1102120-00-B | |
| 2 | BK | 0.35 | SN | Z73-GDC09-R | Yazaki 7116-4415-02 | Yazaki 7158-3166-60 | 1102120-00-B | |
| 5 | WH/BU | 0.35 | SN | X331-18 | Yazaki 7116-4415-02 | Yazaki 7158-3166-60 | 1102120-00-B | |
| 10 | WH | 0.35 | SN | Z8-DCR12-L | Yazaki 7116-4415-02 | Yazaki 7158-3166-60 | 1102120-00-B |
