X342 - s-rhd-sop10

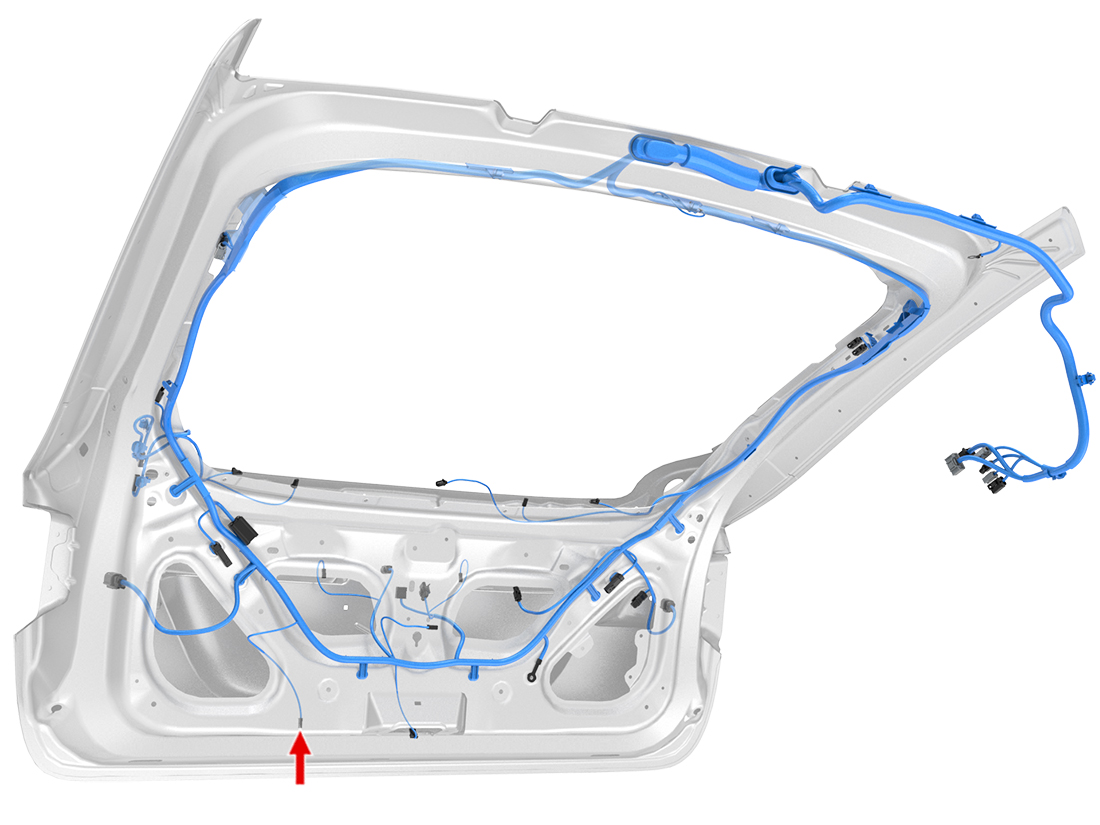

Location:
Location:
Connector Detail: AMP 1-1718346-1
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: AMP 6-1355688-5
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BU/WH | 0.35 | AU | Z11-SEC12-L | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| 2 | GY/WH | 0.35 | AU | X331-5 | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| 3 | BK | 0.35 | AU | Z35-GDC09-L | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| 8 | RD/GY | 0.35 | AU | X331-1 | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| 9 | BK | 0.35 | AU | X331-21 | AMP 969005-3 | AMP 964971-1 | 1099472-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GN | 0.35 | SN | X955F-21 | AMP 5-928999-1 | 1099455-00-B | ||
| 2 | BK | 0.35 | SN | GND_LG-1 | AMP 5-928999-1 | 1099455-00-B | ||
| 3 | BU | 0.35 | SN | X955F-10 | AMP 5-928999-1 | 1099455-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GN | 0.35 | SN | X955F-21 | AMP 5-928999-1 | 1099455-00-B | ||
| 2 | BK | 0.35 | SN | GND_LG-1 | AMP 5-928999-1 | 1099455-00-B | ||
| 3 | BU | 0.35 | SN | X955F-10 | AMP 5-928999-1 | 1099455-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BU/WH | 0.35 | AU | Z11-SEC12-L | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| 2 | GY/WH | 0.35 | AU | X331-5 | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| 3 | BK | 0.35 | AU | Z35-GDC09-L | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| 8 | RD/GY | 0.35 | AU | X331-1 | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| 9 | BK | 0.35 | AU | X331-21 | AMP 969005-3 | AMP 964971-1 | 1099472-00-B |
