X344 - s-rhd-sop10

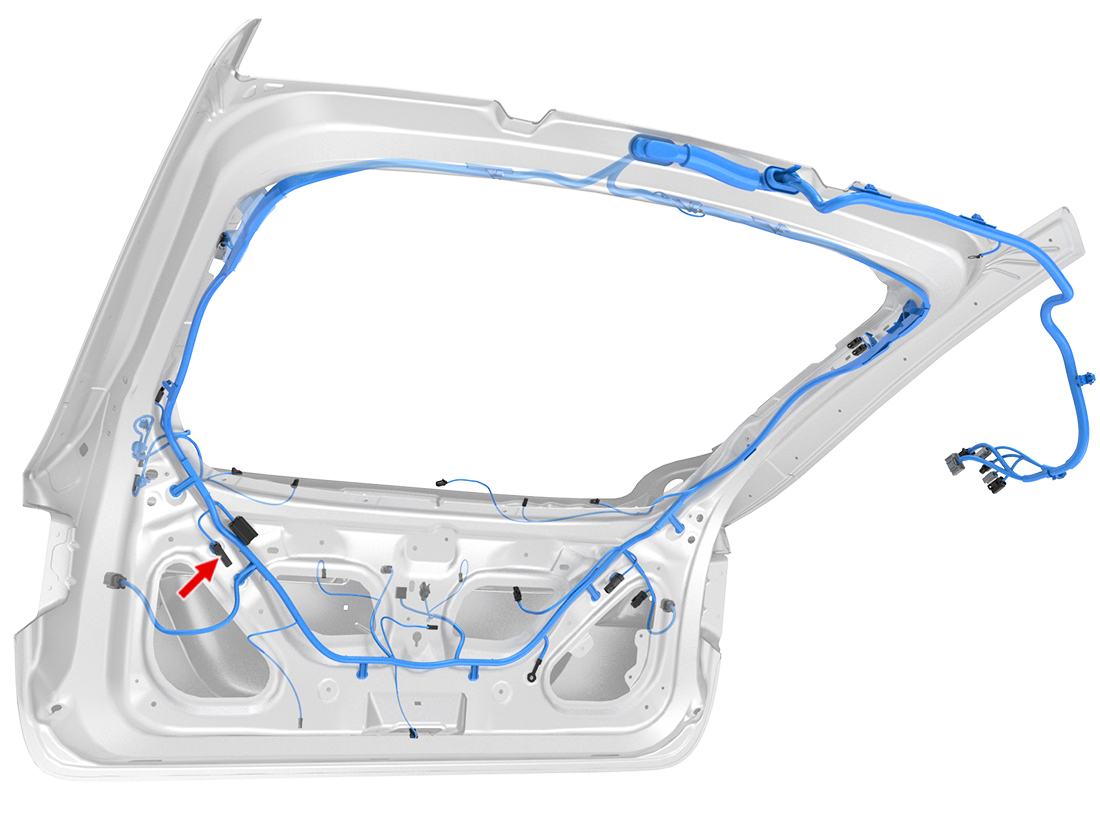

Location:

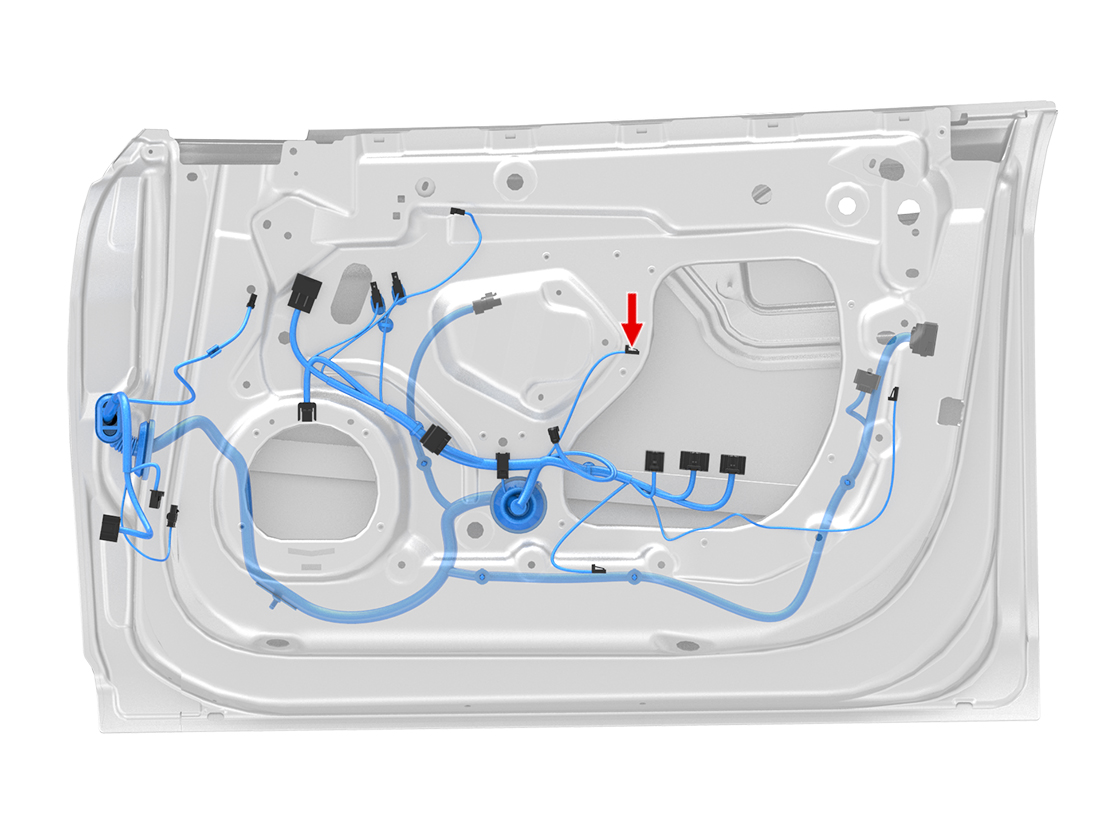

Location:
Connector Detail: AMP 1-1534113-1
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: Yazaki 7282-6075-30
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | VT | 0.35 | SN | Z12-DCR14-L | AMP 5-928999-1 | 1099455-00-B | ||
| 2 | BK | 0.35 | SN | Z35-GDC09-L | AMP 5-928999-1 | 1099455-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | VT | 0.5 | SN | X954F-14 | Yazaki 7114-4721-02 | Tesla MAT-140-220 | 1099552-00-A | |
| 2 | BU/WH | 0.5 | SN | X955F-13 | Yazaki 7114-4721-02 | Tesla MAT-140-220 | 1099552-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | VT | 0.5 | SN | X954F-14 | Yazaki 7114-4721-02 | Tesla MAT-140-220 | 1099552-00-A | |
| 2 | BU/WH | 0.5 | SN | X955F-13 | Yazaki 7114-4721-02 | Tesla MAT-140-220 | 1099552-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | VT | 0.35 | SN | Z12-DCR14-L | AMP 5-928999-1 | 1099455-00-B | ||
| 2 | BK | 0.35 | SN | Z35-GDC09-L | AMP 5-928999-1 | 1099455-00-B |
