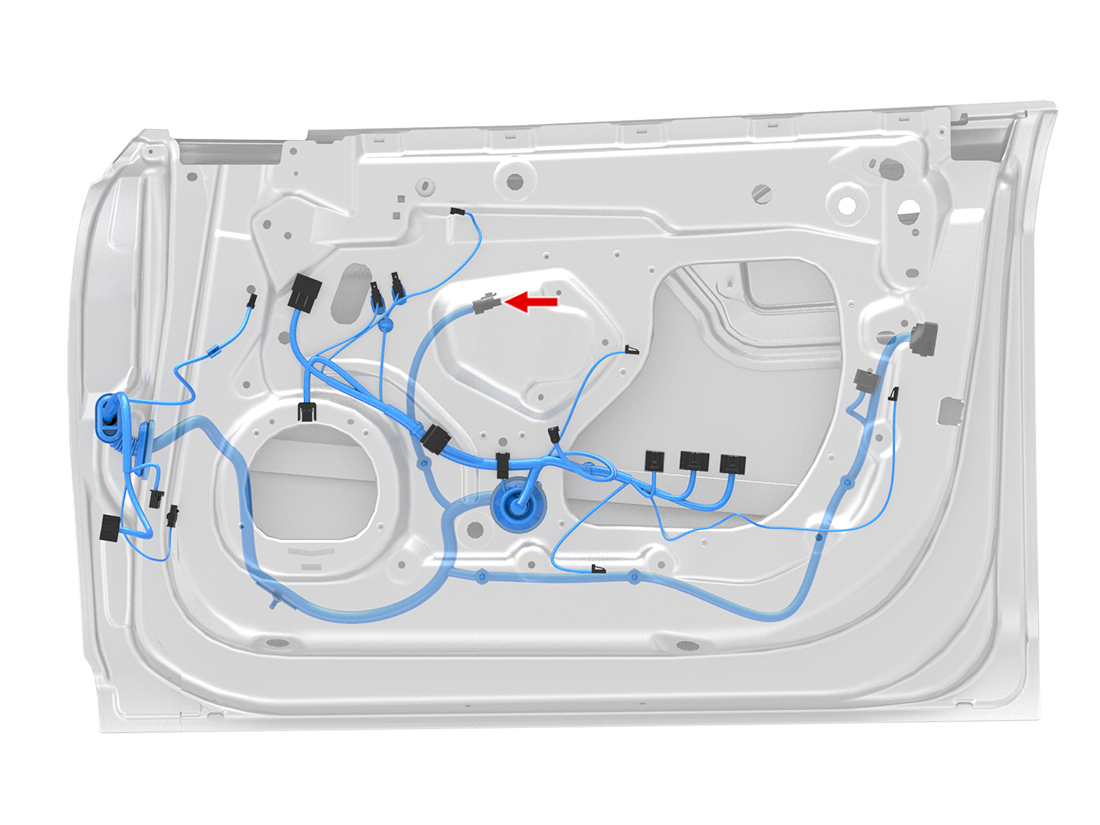

Location:
Connector Detail: FCI 211PC069S8049
Color: Gray
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | YE/WH | 0.5 | SN | X341-4 | FCI 211CC2S1160P | Tesla MAT-140-280 | 1099491-00-A | |
| 2 | BU/WH | 0.5 | SN | Z11-SEC12-R | FCI 211CC2S1160P | Tesla MAT-140-280 | 1099491-00-A | |
| 3 | BU | 1.5 | SN | X944F-1 | FCI 211CC3S2120 | Tesla MAT-160-345 | 1099492-00-A | |
| 4 | BK | 1.5 | SN | Z35-GDC09-L | FCI 211CC3S2120 | Tesla MAT-160-345 | 1099492-00-A | |
| 5 | WH | 0.5 | SN | Z8-DCR12-L | FCI 211CC2S1160P | Tesla MAT-140-280 | 1099491-00-A | |
| 6 | WH/BK | 0.5 | SN | X341-1 | FCI 211CC2S1160P | Tesla MAT-140-280 | 1099491-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | YE/WH | 0.5 | SN | X341-4 | FCI 211CC2S1160P | Tesla MAT-140-280 | 1099491-00-A | |
| 2 | BU/WH | 0.5 | SN | Z11-SEC12-R | FCI 211CC2S1160P | Tesla MAT-140-280 | 1099491-00-A | |
| 3 | BU | 1.5 | SN | X944F-1 | FCI 211CC3S2120 | Tesla MAT-160-345 | 1099492-00-A | |
| 4 | BK | 1.5 | SN | Z35-GDC09-L | FCI 211CC3S2120 | Tesla MAT-160-345 | 1099492-00-A | |
| 5 | WH | 0.5 | SN | Z8-DCR12-L | FCI 211CC2S1160P | Tesla MAT-140-280 | 1099491-00-A | |
| 6 | WH/BK | 0.5 | SN | X341-1 | FCI 211CC2S1160P | Tesla MAT-140-280 | 1099491-00-A | |
